OFC-ARMLESS-CR-001

Code：SX0JZHV1
Request supplier quotes

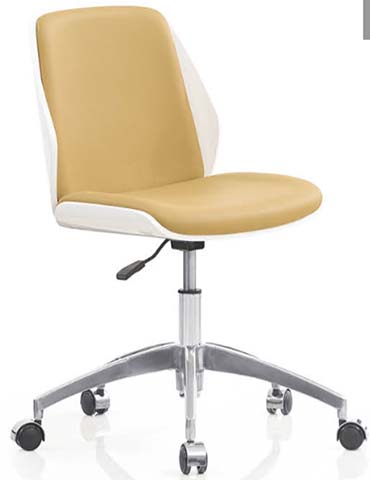

Armless Height-Adjustable Upholstered Swivel Office Chair with White Plastic Back Shell and Chrome Five-Star Base Key Specifications 2026-08-05 17:15

Popularity: 7
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-ARMLESS-CR-001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierArmless Height-Adjustable Upholstered Swivel Office Chair with White Plastic Back Shell and Chrome Five-Star Base，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (W x D x H)620 x 650 x 980 mm
Seat width500 mm
Seat depth450 mm
Maximum seat height520 mm
Minimum seat height420 mm
Backrest height480 mm
Backrest width460 mm
Five-star base diameter640 mm
Caster wheel diameter50 mm
Seat cushion thickness70 mm
Gas lift column diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight range12 kg
Gas lift stroke length100 mm
Seat rotation range360 degrees
Caster rolling durability cycle count40000 cycles
Gas lift cycle durability100000 cycles
Seat upholstery abrasion resistance50000 Martindale cycles
Available color options6
Maximum recommended user weight120 kg
Backrest static load capacity76 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer back shellGloss white injection-molded polypropylene
Seat cushion upholsteryBeige PU faux leather
Backrest cushion upholsteryBeige PU faux leather, matched to seat
Seat inner support board12mm thick molded plywood
Cushion filling40kg/m³ density high-resilience polyurethane foam, 70mm thick seat, 50mm thick back
Five-star basePolished chrome-plated die-cast aluminum, 2.5mm wall thickness
Height adjustment gas liftChrome-plated steel Class 3 gas lift, 50mm outer diameter
Height adjustment leverBlack glass-filled nylon
Caster wheelsDual-wheel black polyurethane tread, chrome-plated steel bracket
Seam stitch pitch8 stitches per 30mm
Swivel bearing assemblyHardened steel raceway with nylon bushing
Surface finish, metal componentsTrivalent chrome plating, 0.2μm minimum plating thickness
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment via side lever, 100mm vertical travel, locks at any position within stroke
360-degree swivel rotationUnobstructed full rotation around central gas lift axis, no rotational locks
Mobile rolling5 dual-wheel casters enable free movement on hard floors and low-pile carpet, brake-free design
Fixed non-tilting backrestBackrest is rigidly mounted to seat frame, no recline or tilt adjustment, provides consistent mid-back support
Armless designNo armrests attached, allows full under-desk clearance for tight workspaces or sit-stand desk use
Static weight supportEven weight distribution across 5 base legs prevents tipping during normal seated movement
Armless clearance designNo attached armrests, providing full side clearance to slide completely under standard 750mm height desks
Static stability controlEven weight distribution across 5 symmetrically spaced base legs prevents forward/side tipping during normal seated leaning and movement
Low-friction floor protectionPolyurethane caster treads prevent scratching of hard floor surfaces and reduce rolling noise in quiet office environments
Recline Angle / Lock Reference125° with 3 suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Open plan office workstationsFits compact workstations without armrest overhang, easily slides under standard 750mm height desks
Home office and study spacesModern two-tone beige and white aesthetic complements residential interiors, adjustable height suits varied desk heights
Conference and meeting rooms360-degree swivel and mobile design supports easy movement during collaborative meetings, lightweight for reconfiguration
Co-working and shared workspacesDurable PU upholstery resists stains and frequent cleaning, commercial-grade casters withstand daily multi-user use
Small home study nooksNarrow 620mm width fits tight desk spaces where bulkier armchairs will not fit
Front reception and guest seatingStreamlined modern appearance creates a professional first impression for visitor areas, mobile for easy repositioning
Training and classroom spacesLightweight construction allows easy stacking or reconfiguration between training sessions, durable upholstery resists scuffs from frequent use
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Office work chairs: Part 1 Dimensions - safety and dimensional requirements reference
EN 1335-2:2018Office work chairs: Part 2 Safety requirements reference
EN 1335-3:2009Office work chairs: Part 3 Test methods reference
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017Office Chairs: General purpose requirements reference, including static load, durability, and stability tests
ANSI/BIFMA X5.11-2015Office Chairs: Large occupant requirements reference (for optional upgraded capacity versions)
Maximum recommended static load capacity120 kg
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Office furniture: desks and storage furniture dimensional accuracy reference, applies to matching desk height compatibility for this chair
GB/T 10357.3-2013Furniture mechanical performance test for chairs and stools: static load and durability test reference
GB/T 27717-2011Office chair general technical requirements reference
GB 18584-2001Indoor decorating and refurbishing materials: limit of harmful substances in furniture, reference for VOC and heavy metal content limits for upholstered components
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Office furniture: desks and storage furniture dimensional accuracy reference, applies to matching desk height compatibility for this chair;
2. GB/T 10357.3-2013: Furniture mechanical performance test for chairs and stools: static load and durability test reference;
3. GB/T 27717-2011: Office chair general technical requirements reference;
4. GB 18584-2001: Indoor decorating and refurbishing materials: limit of harmful substances in furniture, reference for VOC and heavy metal content limits for upholstered components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-ARMLESS-CR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-ARMLESS-CR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-ARMLESS-CR-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

This armless height-adjustable upholstered swivel office chair presents a streamlined, contemporary silhouette defined by a crisp gloss white polymer outer back shell, matched upholstered seat and back cushions, and a polished chrome five-star base. Its open, armless layout creates a compact footprint that eliminates side protrusions, with a rigid fixed backrest aligned to deliver consistent mid-back support for seated users. Constructed for regular use, the chair features padded polyurethane faux leather cushions over a molded plywood inner seat support, with high-resilience foam filling for balanced comfort. The chrome-plated steel five-star base is fitted with dual-wheel casters that glide smoothly without scratching hard flooring or catching on low-pile carpet, while a Class 3 gas lift enables smooth, lockable height adjustment across its full travel range. A hardened steel swivel bearing supports unobstructed 360-degree rotation for easy access to surrounding work surfaces, with no tilt or recline mechanism to mntn a consistent upright seated position. The chair’s functional design supports a wide range of settings. In commercial environments, it suits high-density open plan workstations, co-working spaces, conference rooms, training areas, and front reception zones, as its durable upholstery stands up to frequent cleaning and multi-user turnover, and its lightweight build allows quick reconfiguration for changing layouts. In residential spaces, its neutral two-tone finish complements home offices, small study nooks, and flexible work areas, with an adjustable height range that accommodates varied desk setups and the armless profile allowing the chair to slide fully under standard desk surfaces to save unused floor space. For procurement planning, the chair is available in six neutral upholstery color options to align with existing decor palettes, and ships in knock-down packaging with reference assembly time suitable for bulk installation. Buyers should note that core material specifications require formal bill of materials confirmation from suppliers prior to final order placement, and reference logistics metrics support efficient bulk shipping for large space fit-outs. The chair carries a maximum recommended user weight aligned to standard commercial task chair requirements, with abrasion-resistant upholstery and durable casters rated for regular commercial use cycles.
