OFC-HB-2TONE-01

Code：T7A03BV1
Request supplier quotes

Two-Tone High-Back Executive Swivel Office Chair Key Specifications 2026-08-06 20:06

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-HB-2TONE-01

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 680 x 1180 mm
Seat width520 mm
Seat depth490 mm
Seat height range (floor to seat top)450 mm to 540 mm
Backrest height760 mm
Backrest width510 mm
Armrest height (seat to arm top)220 mm
5-star base diameter680 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net chair weight21 kg
Maximum recommended user weight150 kg
Seat foam static load capacity95 kg
Backrest tilt static load68 kg
5-star base static load rating1136 kg
Caster rolling durability100000 cycles
Gas lift cycle life120000 cycles
Upholstery abrasion resistance50000 Martindale cycles
Recommended daily use duration8 hours
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Seat and inner back upholsteryLight beige faux leather (PU leather)
Outer armrest and side panel upholsteryDark brown faux leather (PU leather)
Seat cushion core45 kg/m³ density high-resilience polyurethane foam, 80 mm thick
Backrest cushion core35 kg/m³ density polyurethane foam, 60 mm thick
Internal support frame1.5 mm thick welded steel tube frame
5-star basePowder-coated matte black steel, 2.0 mm leg thickness
Gas liftClass 3 black steel gas lift, 50 mm diameter, 90 mm adjustment stroke
Tilt chassis3.0 mm thick stamped steel multi-lock tilt mechanism
Casters60 mm diameter black nylon dual-wheel casters
Stitching detailsMatching color thread, 8 mm seam pitch
Edge trimBlack piped trim along all upholstery edges
Internal seat and back support frame1.5 mm thick welded round steel tube frame, anti-rust phosphate pretreatment
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotationFull unrestricted swivel around central gas lift axis
Seat height adjustment90 mm vertical travel via right-side paddle lever, locks at any position within stroke
Backrest tilt function12-degree maximum backward recline, adjustable tension knob under seat, single-position tilt lock
Fixed integrated armrestsCurved wrap-around armrests contoured for forearm support, no height or width adjustment
Lumbar supportContoured vertical pleated zone in lower back provides built-in passive lumbar support
Smooth rolling mobilityDual-wheel casters roll on hard flooring and low-pile carpet without marking
Tilt tension adjustmentRotary knob under seat adjusts recline resistance to match user weight
Upright position lockChassis lever locks backrest in fully upright position for focused task work
Integrated fixed armrestsCurved wrap-around armrests contoured to support forearm weight during typing and resting, with no height, width or pivot adjustment
Passive lumbar supportContoured raised padded zone in lower back created by vertical pleated stitching and shaped foam
Mobility functionDual-wheel casters roll smoothly on hard flooring and low-pile carpet up to 6 mm pile height without marking surfaces
Recline Angle / Lock Reference125° with 3suggested lock positions
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1 carton
Shipping carton dimensions720 x 620 x 580 mm
Gross shipping weight25 kg
Shipping volume per unit0.26 CBM
Required assembly time30 minutes
20ft GP container loading quantity108 units
40ft HQ container loading quantity270 units
Packaging materials5-layer corrugated carton, expanded polystyrene edge protection, polypropylene wrap, printed assembly instruction sheet
Standard hardware packAll required bolts, washers, hex key and spare caster included in box
Reference Package Count1 set / 2 cartons
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officesHigh-back ergonomic design and two-tone leather look complement premium office interiors for senior staff workspaces
Open-plan office workstationsRolling swivel function and adjustable height suit 8-hour daily task use for general office staff
Conference and meeting roomsSleek contemporary silhouette and neutral color scheme coordinate with professional meeting room furniture
Home office spacesCompact footprint and residential-friendly two-tone finish suit remote work setups in home studies
Reception and guest areasPolished padded design provides comfortable seating for visitor waiting areas in corporate environments
Recommended desk height compatibilitySuitable for use with standard 760 mm height office desks due to standard seat height adjustment range
Open-plan senior workstationsRolling swivel function and 90 mm height adjustment suit 8-hour daily task use for department heads and senior professional staff
Boardroom and conference roomsSleek contemporary silhouette and neutral two-tone color scheme coordinate with professional conference tables for long meeting use
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Office furniture - Office work chairs - Part 1: Dimensions, for verifying ergonomic dimensional compliance for seated work
EN 1335-2:2018Office furniture - Office work chairs - Part 2: Safety requirements, for structural safety performance acceptance
EN 1335-3:2009Office furniture - Office work chairs - Part 3: Test methods, for conducting structural and durability verification testing
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 Test 5Backrest strength test requirement of 667 N force applied to backrest for structural verification
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 35607-2017Green product assessment standard for furniture, applicable for volatile organic compound emission evaluation for indoor office use
GB/T 10357.3-2013Test method for strength and durability of chair and stool furniture, applicable for structural performance verification
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 35607-2017: Green product assessment standard for furniture, applicable for volatile organic compound emission evaluation for indoor office use;
2. GB/T 10357.3-2013: Test method for strength and durability of chair and stool furniture, applicable for structural performance verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-HB-2TONE-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-HB-2TONE-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-HB-2TONE-01Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

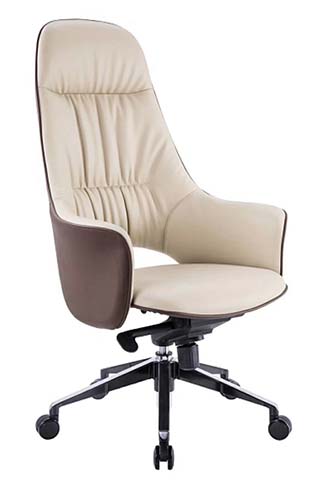

The Two-Tone High-Back Executive Swivel Office Chair (model OFC-HB-2TONE-01, unbranded) features a streamlined contemporary silhouette defined by a deliberate two-tone upholstery contrast: light beige faux leather covers the seat and inner backrest, accented with vertical pleated stitching and thin black piped trim along all edges, while dark brown faux leather wraps the integrated fixed armrests and side panels for a polished, premium look. The tall high-back structure rises to support the full upper back, with curved, wrap-around fixed armrests that flow seamlessly from the seat to back frame to eliminate visual clutter, anchored by a matte black powder-coated steel five-star base fitted with black nylon dual-wheel casters. Built for consistent commercial use, the chair’s internal structure relies on a welded steel tube support frame with anti-rust pretreatment, paired with high-resilience polyurethane foam padding in both the seat and backrest. Core mechanical components include a Class 3 steel gas lift, stamped steel multi-lock tilt chassis, and smoothly rolling casters engineered to move without marking across hard flooring and low-pile carpet. The upholstery carries a commercial-grade abrasion rating suited for regular daily use, while all steel structural elements meet baseline durability standards for office seating. Functional design prioritizes ergonomic support and intuitive use: full 360-degree swivel enables easy reach across work surfaces, while seat height adjustment lets users align the chair to standard desk heights. The backrest supports controlled recline with adjustable tension to match user preference, plus a lock to hold the fully upright position for focused task work. A contoured, raised padded zone in the lower back delivers passive lumbar support without complex adjustable mechanisms, reducing long-term maintenance needs. Fixed armrests are shaped to cradle forearms during typing and short rest breaks, positioned to align with standard worksurface heights. This chair fits a broad range of commercial and residential spaces, including private executive offices, senior open-plan workstations, boardrooms and conference areas, corporate reception zones, and dedicated home office studies. Its neutral two-tone finish coordinates with both warm wood and cool-toned modern office furniture palettes, and it is rated for full 8-hour daily use. For procurement teams, the chair ships in knock-down flat-pack packaging with all required assembly hardware, tools and instructions, supporting high-volume loading for commercial projects. Buyers should note that final material specifications and structural details require supplier confirmation prior to bulk order placement, and the chair is compatible with standard height office desks for universal workspace integration.
