OFC-MID-PU-019

Code：WGL9C8V1
Request supplier quotes

Mid-Back Upholstered Swivel Conference Office Chair with Integrated Armrests Key Specifications 2026-08-05 14:06

Popularity: 5
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFC-MID-PU-019

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierMid-Back Upholstered Swivel Conference Office Chair with Integrated Armrests，Multi-layer
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions650 x 660 x 1020 mm
Seat width490 mm
Seat depth470 mm
Seat height range520 mm
Backrest height540 mm
Backrest width480 mm
Armrest height from seat210 mm
Five-star base diameter640 mm
Caster diameter50 mm
Seat cushion thickness80 mm
Backrest padding thickness60 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net chair weight17 kg
Maximum user weight capacity136 kg
Seat foam density45 kg/m³
Back foam density35 kg/m³
Foam rebound rate45%
Seam stitch pitch8 stitches per 30mm
Caster rolling durability50000 cycles
Gas lift cycle life120000 cycles
Available upholstery colors6
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Upholstery material1.0mm thick polyurethane (PU) leather
Seat cushion paddingHigh-density polyurethane foam
Backrest paddingContoured high-density polyurethane foam
Internal seat/back frame12mm thick molded plywood
Five-star base2.0mm thick polished chrome-plated steel
Gas lift cylinderClass 3 chrome-plated steel gas lift
Tilt mechanism2.5mm thick black powder-coated steel tilt chassis
Armrest structureIntegrated molded armrests upholstered in matching PU leather
Casters50mm diameter nylon twin-wheel casters
Hardware fastenersZinc-plated steel bolts and connectors
Edge trimMatching color fine edge piping
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

360-degree swivel rotationFull 360° horizontal rotation enabled by central gas lift bearing, standard for swivel office chairs allowing easy access to surrounding workspace
Seat height adjustmentPneumatic height adjustment via right-side lever, 100mm vertical travel from 420mm to 520mm seat height, accommodating 185 cm user heights
Back tilt functionSynchronized tilt with 12° maximum backward recline, controlled by chassis lever allowing lock in upright position
Tilt tension adjustmentRotary tension knob under seat adjusts tilt resistance to match user weight 136 kg, preventing too-fast or too-stiff recline
Smooth rolling mobilityFive dual-wheel casters allow omnidirectional movement on hard floors and low-pile carpet without scratching surfaces
Integrated padded arm supportFixed curved armrests provide continuous forearm support during typing or meetings, 210mm height above seat matching standard desk height
Lumbar supportContoured mid-back shape provides built-in passive lumbar support aligned with natural spine curve, no adjustable lumbar mechanism
Upright position lockChassis lock secures backrest in full upright position for formal conference or task work use
Passive lumbar supportContoured mid-back shape provides built-in passive lumbar support aligned with the natural seated spine curve, with no adjustable lumbar mechanism
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping cartons1
Shipping carton dimensions680 x 680 x 590 mm
Gross shipping weight20 kg
Shipping volume per unit0.27 CBM
Required assembly time20 minutes
20ft GP container loading quantity240 units
40ft HQ container loading quantity580 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Corporate conference roomsFormal tailored silhouette and neutral taupe finish suits professional meeting spaces, providing comfortable seating for meetings up to 4 hours duration
Executive office task seatingPolished chrome base and smooth PU upholstery complements executive desk setups, supporting daily computer and administrative work
Private office visitor seatingFixed upright position and integrated armrests provide appropriate formal seating for guests and visitors in private offices
Co-working flexible workspacesSwivel and height adjustment functions suit flexible shared work areas, neutral finish coordinates with diverse interior design schemes
Hotel business center seatingDurable PU upholstery resists stains and is easy to clean, suitable for high-turnover public business facility use
Healthcare/consulting room seatingSmooth non-porous upholstery allows easy disinfection, comfortable for patient or client consultation seating
Consulting room client seatingSmooth non-porous upholstery allows simple disinfection between users, with contoured support for extended client consultation sessions
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 1335-1:2020Recommended applicability: Office furniture - Office work chairs - Part 1: Dimensions, determining compliance with minimum ergonomic dimensional requirements for task seating
EN 1335-2:2018Recommended applicability: Office work chairs - Part 2: Safety requirements, validating structural stability, strength and durability for commercial use
EN 1021-1:2014Recommended applicability: Upholstered furniture - Ignition resistance to smouldering cigarette, baseline fire safety requirement for office seating
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 Test 5Recommended applicability: Backrest durability test, 120000 cycles to validate structural integrity of backrest and frame under repeated recline loads
STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3326-2016Recommended applicability: Test method for dimensions of furniture - chairs and stools, validating dimensional consistency with ergonomic requirements for office seating
GB/T 35607-2017Recommended applicability: Green product assessment standard for furniture, verifying limited formaldehyde and harmful substance content in upholstery and foam
GB 28007-2011Recommended applicability: General technical requirements for children's furniture does not apply; this product is rated for adult commercial office use only
GB/T 10357.3-2013Recommended acceptance criterion: Test of mechanical properties of furniture - Strength and durability of chairs and stools, validating structural performance for commercial daily use; confirm via supplier test report for tender
Standard Tender Description
This product must meet the following technical requirements:
1. GB/T 3326-2016: Recommended applicability: Test method for dimensions of furniture - chairs and stools, validating dimensional consistency with ergonomic requirements for office seating;
2. GB/T 35607-2017: Recommended applicability: Green product assessment standard for furniture, verifying limited formaldehyde and harmful substance content in upholstery and foam;
3. GB 28007-2011: Recommended applicability: General technical requirements for children's furniture does not apply; this product is rated for adult commercial office use only;
4. GB/T 10357.3-2013: Recommended acceptance criterion: Test of mechanical properties of furniture - Strength and durability of chairs and stools, validating structural performance for commercial daily use; confirm via supplier test report for tender;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MID-PU-019

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MID-PU-019

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MID-PU-019Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

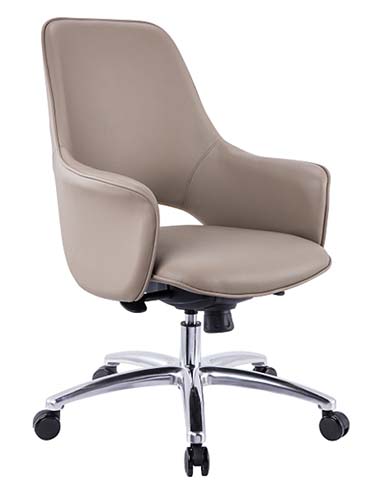

The Mid-Back Upholstered Swivel Conference Office Chair with Integrated Armrests, model OFC-MID-PU-019, presents a polished, streamlined silhouette defined by a contoured mid-back profile, smoothly integrated curved armrests, and a symmetrical five-star base that balances visual lightness with structured form. Matching fine edge piping runs along all upholstery seams for a tailored, professional finish, with six neutral upholstery color options available to coordinate with varied interior palettes. Its construction centers on durable, commercial-grade materials: 1.0mm thick smooth matte PU leather covers all padded surfaces, with high-density polyurethane foam forming the seat and backrest cushioning. The internal structural shell uses molded plywood to hold the ergonomic contoured shape, while the base is crafted from polished chrome-plated steel, paired with a class 3 chrome-plated steel gas lift, black powder-coated steel tilt chassis, zinc-plated steel fasteners, and black nylon twin-wheel casters. Functional features support flexible, comfortable use for daily work and meetings: full 360-degree swivel rotation, pneumatic seat height adjustment, synchronized back tilt with an upright position lock, and adjustable tilt tension let users customize positioning to suit task needs. The fixed integrated padded armrests sit at a height aligned with standard desk surfaces for steady forearm support, while the built-in contoured backrest delivers passive lumbar support aligned with the natural seated spine curve. The dual-wheel casters enable smooth omnidirectional movement on hard floors and low-pile carpet without surface damage, and the non-porous PU upholstery resists stains and wipes clean easily. This chair fits a wide range of commercial and residential-adjacent work spaces, including corporate conference rooms, executive home or private offices, co-working flexible work zones, hotel business centers, and consulting or client meeting spaces, where its formal yet approachable aesthetic complements professional interiors. For procurement teams, key considerations include confirming final material specifications against supplier documentation prior to bulk orders, reviewing bulk shipping load quantities for large fit-out projects to optimize logistics costs, and accounting for straightforward partial assembly that requires no specialized tools. The chair’s weight capacity supports a broad range of users, and its durable component specifications align with regular daily commercial use.
