OFCHR-BW-HB-001

Code：XHPJK1V1
Request supplier quotes

High-Back Bentwood Padded Executive Swivel Office Chair Key Specifications 2026-08-06 19:14

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

OFCHR-BW-HB-001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierHigh-Back Bentwood Padded Executive Swivel Office Chair，Multiple layers
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions680 x 700 x 1180 mm
Seat height (adjustable range maximum)520 mm
Seat width520 mm
Seat depth480 mm
Backrest total height780 mm
Backrest width at widest point500 mm
Integrated headrest height220 mm
Armrest height above seat200 mm
5-star base diameter660 mm
Caster diameter50 mm
Seat pan plywood shell thickness15 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight23 kg
Maximum static user weight capacity150 kg
Seat foam density45 kg/m³
Backrest foam density35 kg/m³
Foam rebound rate45%
Seat padding thickness80 mm
Backrest padding thickness60 mm
Caster rolling durability cycle rating50000 cycles
Seam stitch pitch8 stitches per 30mm
Standard warranty period for commercial use3 years
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Outer structural shell15mm thick bent laminated plywood with natural zebra wood grain veneer, clear matte lacquer finish
Seat upholsteryBlack matte fabric or PU leather upholstery over high-density polyurethane foam
Backrest upholsteryBlack matte upholstery over medium-density polyurethane foam, integrated into bentwood shell
Integrated armrestsCurved padded armrests matching seat upholstery, mounted directly to bentwood shell
Support columnPolished chrome-plated steel gas lift cylinder, 50mm outer diameter
5-star basePolished chrome-plated tubular steel, 1.5mm wall thickness, 5 radial legs
Gas lift class ratingClass 3 commercial grade
Tilt mechanism2.5mm thick steel tilt chassis with tension adjustment
CastersBlack nylon twin-wheel hard-floor casters with metal roller bearings
Edge finishSmooth rounded edge treatment on all bentwood shell edges to prevent sharp contact
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Swivel function360-degree continuous rotation around central gas lift axis for full workspace access without standing
Seat height adjustment100mm vertical height adjustment via gas lift activated by under-seat lever, adjustable between 420mm and 520mm seat height
Backrest tilt function12-degree synchronized backward tilt with adjustable tension control to match user body weight, lockable in upright position
Mobility functionSmooth rolling on hard tile, wood or low-pile carpet floors via 5 twin-wheel casters, no fixed glides fitted
Integrated head supportFixed high-back integrated headrest section positioned to support neck and head during upright work and reclined rest
Integrated arm supportFixed curved padded armrests positioned to support forearms during typing and desk work, no height or width adjustment
Lumbar supportContoured backrest shape formed by bentwood shell and padding provides passive lumbar support in the natural lower back curve
Upholstery abrasion resistance50000 Martindale cycles minimum, suitable for 8-hour daily commercial office use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages1 unit per carton
Shipping carton dimensions780 x 620 x 580 mm
Gross shipping weight per carton27 kg
Shipping volume per unit (CBM)0.28 CBM
Required assembly time20 minutes
20ft GP container loading quantity105 units
40ft HQ container loading quantity265 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private office useSuitable for manager and executive private offices, high-back design supports extended sitting during meetings, desk work and decision making
Open plan workstation useSuitable for senior staff open plan workstations, neutral black and wood finish coordinates with most modern office fitouts
Meeting and boardroom useSuitable for boardroom and formal meeting spaces, uniform styling creates a professional cohesive look around conference tables
Home office useSuitable for premium home office setups, compact footprint and modern aesthetic complements residential workspaces
Co-working space premium zone useSuitable for premium dedicated desk zones in co-working facilities, durable construction supports frequent user rotation without rapid wear
Hard floor environment compatibilitySuitable for installation on tile, polished concrete and hardwood floors, standard hard-floor casters prevent floor scuffing
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable office chair safety standardEN 1335:2018
Applicable upholstery fire resistance standardEN 1021:2014
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable office chair durability standardANSI/BIFMA X2017
Gas lift BIFMA X5.1 cycle rating120000 cycles
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable stability and safety standardGB/T 3326
Applicable upholstery formaldehyde limitGB 18584
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable stability and safety standard: GB/T 3326;
2. Applicable upholstery formaldehyde limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFCHR-BW-HB-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFCHR-BW-HB-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFCHR-BW-HB-001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

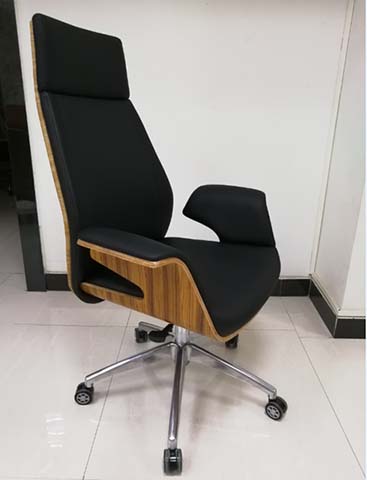

This high-back bentwood padded executive swivel office chair balances refined modern styling with commercial-grade functionality for diverse work settings. Its visual profile centers on a smoothly curved bent laminated plywood shell finished with natural zebra wood grain veneer and a clear matte lacquer, paired with uniform black matte upholstery across the seat, contoured backrest, fixed curved armrests, and integrated headrest. All bentwood edges feature smooth rounded treatment to eliminate sharp contact points, while a polished chrome-plated 5-star tubular steel base and black nylon twin-wheel casters create a clean, professional visual contrast suited to coordinated workspaces. The integrated fixed headrest rises to the full tall back height, delivering a streamlined silhouette without protruding adjustment components. Construction pairs the 15mm thick bent plywood outer shell with tailored padding: the seat uses 80mm thick high-density polyurethane foam, while the backrest uses 60mm thick medium-density foam, with upholstery stitched at a commercial-grade density to resist seam failure. The base connects via a Class 3 commercial-grade chrome-plated steel gas lift cylinder, paired with a steel tilt chassis and hard-floor casters fitted with metal roller bearings for smooth movement. Functional features include 360-degree continuous swivel, 100mm of vertical seat height adjustment, a 12-degree synchronized backrest tilt with user-adjustable tension and upright lock, passive lumbar support from the contoured shell shape, and fixed padded armrests positioned to support forearms during desk work. The casters roll smoothly on hard tile, wood, polished concrete, and low-pile carpet surfaces without causing scuff damage. This chair is well suited for executive private offices, senior staff open-plan workstations, formal boardrooms and meeting spaces, premium co-working dedicated desk zones, and upscale residential home offices. Its neutral black and wood finish coordinates with most modern fitout palettes, and its commercial-grade build supports frequent daily use across high-traffic and private settings. For procurement, note that the chair ships as one unit per carton, with assembly time of 20 minutes for a single person to attach the base, casters, and complete a post-assembly inspection. The product carries a 3-year standard warranty for commercial use, with a maximum static user weight capacity aligned to commercial office seating standards. Buyers should confirm exact upholstery material (fabric or PU leather) and final material grade specifications via supplier bill of materials prior to bulk order placement, and account for standard container loading quantities when planning large-scale installations.
