EOCH-HB-L001

Code：XNL2UJV1
Request supplier quotes

High-Back Leather Executive Office Chair with Headrest Key Specifications 2026-08-06 20:00

Popularity: 3
Parameter Correction History (Public)
SubmittedFieldOriginal修改后参数Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

EOCH-HB-L001

1 active supplier(s) >>
CNYiankang FurnitureSupplierYear 1Company Profile
Product supplierHigh-Back Leather Executive Office Chair with Headrest，Multiple layers
Contact the supplier for production scheduling and quotation.
Details >
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions700 x 720 x 1250 mm
Seat height adjustment range540 mm
Seat width520 mm
Seat depth500 mm
Seat cushion thickness80 mm
Backrest height above seat720 mm
Headrest height above seat880 mm
Armrest height above seat220 mm
Five-star base radius350 mm
Caster diameter60 mm
Backrest width at widest point540 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Net weight24 kg
Maximum static user weight capacity150 kg
Recommended maximum daily use duration8 hours
Seat foam density45 kg/m³
Back foam density35 kg/m³
Foam rebound rate60%
Tilt lock angle15 degrees
Seam stitch pitch8 stitches per inch
Upholstery abrasion resistance50000 double rubs
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Upholstery coveringSmooth brown PU faux leather, uniform matte-gloss finish, contrast edge stitching
Seat cushion interiorHigh-resilience polyurethane foam, wrapped with thin polyester batting for soft surface feel
Backrest interiorContoured molded PU foam with integrated lumbar support curve, supported by internal 12mm plywood frame
Integrated armrestsCurved arm structure upholstered in the same brown PU leather as seat and back, connected directly to seat frame for structural rigidity
Tilt mechanism3mm thick black powder-coated steel multi-function tilt chassis, with separate height adjustment and tilt lock levers
Gas lift cylinderChrome-plated steel Class 3 gas lift, 50mm outer diameter, 100mm vertical stroke
Five-star basePolished die-cast aluminum five-prong base, 3mm wall thickness, polished chrome finish
CastersBlack PU wheel swivel casters, with metal mounting stems, 360-degree rotation
HeadrestIntegrated contoured PU leather padded headrest, fixed position aligned to cervical support height
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Seat height adjustmentPneumatic height adjustment operated by side lever, provides 100mm vertical travel to match desk heights from 720mm to 760mm
Backrest tilt functionSynchronized tilt mechanism allowing 15 degree backward recline, with lockable upright position for focused work
Smooth rolling mobilityFive dual-wheel casters allowing easy movement on hard flooring and low-pile commercial carpet, with 360 degree steering
Ergonomic support zonesContoured seat pan, curved lumbar support section in backrest, and elevated headrest provide aligned support for upright and reclined sitting postures
Fixed arm supportCurved integrated armrests positioned to support forearms during typing and desk work, eliminating wrist strain
Tilt tension controlRotating tension adjustment knob under seat to adjust recline resistance based on user weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages1 unit per carton
Shipping carton dimensions850 x 650 x 420 mm
Gross shipping weight28 kg
Packaged volume (CBM)0.23 cbm
Required assembly time25 minutes
20ft GP container loading quantity120 units
40ft HQ container loading quantity300 units
Packaging protection5-layer corrugated carton with expanded polystyrene corner protectors and plastic film wrapping, preventing scuffs and damage during transit, procurement engineering, not supplier-measured data
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Executive private officesPremium brown leather aesthetic fits formal management and director office environments, conveying a professional appearance for client meetings
Open plan management workstationsCompact footprint fits standard workstation layouts without excess space usage, while providing ergonomic support for long working hours
Meeting and boardroomsConsistent formal styling suitable for boardroom seating around conference tables, with smooth rolling for easy repositioning during meetings
Home executive officesRefined aesthetic works in residential home office spaces, with durable upholstery that resists daily wear from regular use
Client reception areasProfessional appearance makes it suitable for seating visitors in formal reception and meeting spaces, with comfortable padding for extended waits
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

EU EN Standards

European market access and chemical requirements

Applicable EN safety standardEN 1335:2020
Applicable EN stability standardEN 1022:2018
Applicable EN fire standardEN 1021:2014
STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

Applicable BIFMA structural standardANSI/BIFMA X2017
Applicable BIFMA durability standardANSI/BIFMA X2017Section 13
STANDARD S3

China GB Standards

Standards applicable to China-market projects

Applicable GB standard for safetyGB/T 3326
Applicable GB standard for stabilityGB/T 10357.3
Applicable GB environmental standardGB 18584
Standard Tender Description
This product must meet the following technical requirements:
1. Applicable GB standard for safety: GB/T 3326;
2. Applicable GB standard for stability: GB/T 10357.3;
3. Applicable GB environmental standard: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOCH-HB-L001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOCH-HB-L001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOCH-HB-L001Open Export Tool

Quick Actions

Post Inquiry

Product Overview & Construction Details

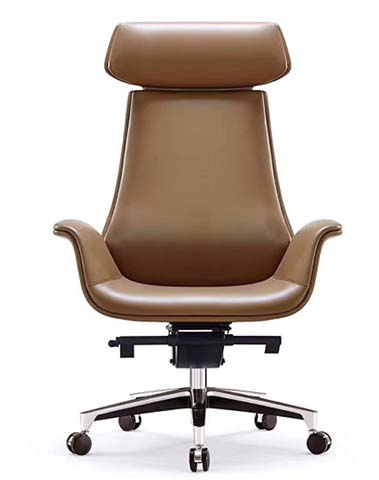

The Yiankang EOCH-HB-L001 High-Back Leather Executive Office Chair with Headrest presents a polished, formal silhouette anchored by a smooth brown PU faux leather upholstery with a balanced matte-gloss finish and precise contrast edge stitching. Its cohesive, contoured form integrates a fixed padded headrest, curved upholstered armrests, and a smoothly contoured seat and backrest, creating a streamlined professional appearance suited to high-visibility work spaces. The chair sits on a polished die-cast aluminum five-star base fitted with black PU swivel casters, presenting a refined, coordinated visual profile that aligns with premium executive seating design conventions. Construction draws on layered, commercial-grade materials built for consistent daily use. The seat and backrest are padded with high-resilience polyurethane foam—wrapped in thin polyester batting on the seat for a soft initial feel—supported by internal bent plywood frames, with the backrest molded to a built-in lumbar support curve. The fixed curved armrests attach directly to the seat frame for structural rigidity, while the under-seat assembly uses a powder-coated steel multi-function tilt chassis paired with a chrome-plated Class 3 gas lift. The polished aluminum five-star base supports 360-degree swivel casters formulated to avoid floor scratching, and all upholstery seams use reinforced stitching for long-term durability. Functional features are tailored to extended seated work: pneumatic seat height adjustment operated via a side lever, a synchronized tilt mechanism with a lockable upright position and 15 degrees of recline, adjustable tilt tension to match user preference, and smooth multidirectional rolling suitable for hard floors and low-pile carpet. The ergonomic geometry supports aligned posture across upright and reclined positions, with dedicated lumbar, upper back, and cervical support from the contoured panels and fixed headrest, and armrests positioned to support forearms during desk-based tasks. This chair fits a broad range of commercial and residential settings, including private executive offices, open-plan management workstations, formal boardrooms and meeting spaces, residential home offices, and client reception areas, where its refined finish balances professional presentation with practical long-wear performance. For procurement planning, note the chair ships in knock-down form for efficient transport, with assembly requiring only basic included hardware and straightforward connection of the base, casters, gas lift, and seat assembly. Bulk orders benefit from compact packaging that supports high container loading volumes, and the upholstery’s abrasion resistance is rated to support frequent daily commercial use. Buyers should confirm material grade specifications and final assembly guidance with suppliers prior to large-scale purchases, to align delivery with project requirements.
