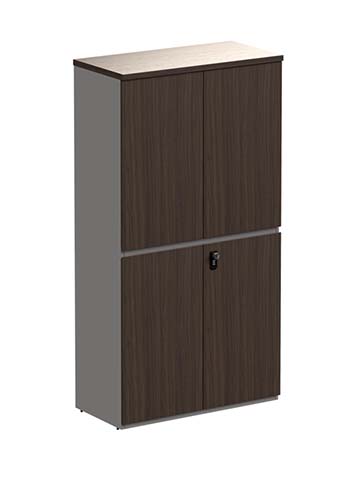

Product supplierFour-Door Locked Office Storage Cabinet, 18 mm wood-grain melamine-faced particleboard with matching dark vertical grain
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Overall cabinet size | 900 x 400 x 1800 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 62 kg | |
|---|---|---|
| Maximum total static load | 120 kg | |
| Single adjustable shelf load | 30 kg | |
| Top surface load | 40 kg | |
| Number of storage compartments | 2 | |
| Door count | 4 | |
| Standard file storage capacity | 48 A4 binders | |
| Recommended shelf adjustment positions per bay | 5 positions | |
| Hinge cycle reference | 100000 open-close cycles | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Door panels | 18 mm wood-grain melamine-faced particleboard with matching dark vertical grain | |
|---|---|---|
| Carcass panels | 25 mm dark grey or charcoal melamine-faced panel with sealed straight edges | |
| Back panel | 9 mm melamine or hardboard rear panel set into the carcass | |
| Shelves | 18 mm melamine-faced panel with shelf-pin supports and anti-tip pegs | |
| Edge banding | 1 mm PVC edge banding on exposed door and carcass edges | |
| Door hinges | Steel concealed cup hinges, four hinges total, with side adjustment screws |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage organization | Two independently enclosed vertical bays provide separated upper and lower office storage behind four doors | |
|---|---|---|
| Door operation | Each pair of doors hinges outward from the outer side edges, giving access to the full 864 mm interior width | |
| Locking control | One keyed lower-front lock secures the lower door pair; upper lock status is not visible | |
| Leveling installation | Four adjustable feet correct floor unevenness within a 20 mm height adjustment range |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office filing and archive storage | Suitable for administrative offices, manager rooms and back-office areas storing A4 binders, boxes and confidential documents | |
|---|---|---|
| Reception or meeting support storage | Placed against a wall to store supplies, catalogs and equipment while presenting a dark wood-grain exterior |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Formaldehyde emission recommendation | EN 13986 classification for wood-based panels used in interior construction, with E1 as the purchase target | |
|---|---|---|
| Storage furniture structural safety | EN 14073:2004 safety requirements applicable to office storage furniture | |
| Storage furniture strength and durability | EN 14073:2004 strength and durability test methods applicable to shelves, doors and carcass | |
| Surface wear acceptance | EN 14322 melamine panel test methods applicable to decorative laminated surfaces |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600E1 limit for wood-based panel components used in indoor office furniture | |
|---|---|---|
| Panel furniture mechanical safety | GB/T 3324dimensions, workmanship and structural test items applicable to wooden cabinets | |
| Surface coating safety | GB 18581limits applicable if painted or coated surfaces are used in the cabinet |
Standardized tender description text
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600E1 limit for wood-based panel components used in indoor office furniture; 2. Panel furniture mechanical safety: GB/T 3324dimensions, workmanship and structural test items applicable to wooden cabinets; 3. Surface coating safety: GB 18581limits applicable if painted or coated surfaces are used in the cabinet; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
