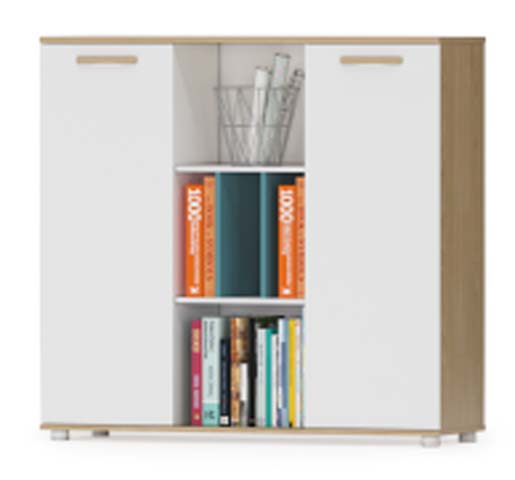

Two-Tone Freestanding Storage Cabinet with Central Open Display Shelves (model STC-WO1200) is listed under Room Divider Planter Cabinet, with overall dimensions of 1200 × 420 × 1200 mm and main material of Particle‑board (PB). Load capacity: 25 kg. Certifications: Two-tone,finish,Freestanding,structure,Enclosed,side,storage,Open,central,display. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 420 x 1200 mm | |
|---|---|---|
| Support foot height | 120 mm | |
| Left door panel dimensions | 380 x 1080 mm | |
| Right door panel dimensions | 380 x 1080 mm | |
| Central open bay width | 340 mm | |
| Open shelf count (central bay) | 3 tiers | |
| Open shelf clearance height | 270 mm | |
| Closed cabinet interior shelf count | 2 per compartment | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Door panel thickness | 18 mm | |
| Edge band thickness | 1 mm | |
| Handle length (integrated horizontal) | 180 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single shelf static load capacity | 25 kg | |
|---|---|---|
| Unit net weight | 38 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 80000 open/close cycles | |
| Adjustable shelf position count | 5 per compartment | |
| Recommended wall anti-tip connector load | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass construction | 18mm particleboard core with melamine finish | |
|---|---|---|
| Door panel finish | Matte white melamine over particleboard | |
| Trim and edge components | Light oak effect foil veneer over particleboard | |
| Shelf panels | 18mm melamine-faced particleboard | |
| Hardware and feet | Zinc-plated steel hinges/supports, ABS plastic cylindrical feet | |
| Back panel | 5mm hardboard with white finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Two side hinged doors with integrated horizontal pulls, 110-degree swing | |
|---|---|---|
| Shelf adjustability | Central and enclosed compartment shelves adjustable via metal shelf pins | |
| Floor protection | Four raised cylindrical feet elevate unit to prevent floor moisture damage | |
| Anti-tip safety | Wall anchor bracket included for securing unit to wall to prevent tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office storage | Suitable for storing books, files and office supplies next to a work desk | |
|---|---|---|
| Living room accent storage | Ideal for displaying decor and media items while concealing clutter |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic storage furniture, applicable for stability and load | |
|---|---|---|
| EN 312:2010 | Particleboard specification, applicable for panel material structural performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural stability and finish quality | |
|---|---|---|
| GB/T 4897-2015 | Particleboard specification, applicable for core panel material performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural stability and finish quality; 2. GB/T 4897-2015: Particleboard specification, applicable for core panel material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
