PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	700 × 350 × 700 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	26 kg
Top distributed load	20 kg
Shelf distributed load	10 kg
Enclosed compartment load	15 kg
Seismic or anti-tip restraint requirement	2 wall anchors
Color options	2 color groups
Warranty duration	36 months
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcase panels	Light oak-grain wood-based board with visible vertical grain and square edge banding
Horizontal shelf	Dark grey or black 20 mm board shelf spanning the open bay
Door panel	Full-height matte black panel framed by a thin light-colored reveal
Base plinth	Black recessed kick plate or plinth running along the cabinet bottom
Internal surfaces	Matching light-tone board back and interior surfaces in the open bay
Hardware and fasteners	Concealed hinges or sliding-door track suitable for the single black front panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	One full-height enclosed bay beside a two-level open shelf bay for mixed display and concealed storage
Door access	Black front panel provides concealed access to the right compartment; exact hinge or slide mechanism is not visible
Fixed shelf organization	One horizontal shelf separates the open bay into upper and lower storage zones
Freestanding placement	Rectangular base and plinth allow placement beside a sofa, wall or desk without built-in floor fixing

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Living room or study storage	Suitable beside a sofa for books, media devices, documents and decorative objects because it combines open shelves with a concealed door
Small office or hotel room storage	Usable as a compact side storage cabinet for stationery, binders and personal items where floor space is limited

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CAB-OAK-BK-700

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CAB-OAK-BK-700

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CAB-OAK-BK-700Open Export Tool

Quick Actions

Post an RFQ

Product Description

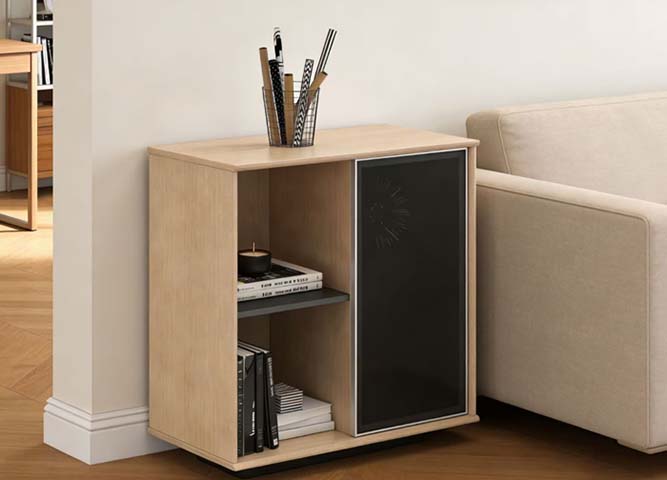

The Compact Oak-Effect Storage Cabinet with Open Shelves and Black Door is a freestanding rectangular storage unit designed to balance visible display with concealed storage. Its front elevation is organized into two distinct vertical zones: a two-level open shelf bay on one side and a full-height enclosed compartment on the other, accessed by a single full-height matte black door panel. A thin light-colored reveal frames the black panel, creating a crisp contrast with the light oak-grain carcase and emphasizing the cabinet’s clean, mixed-material appearance. A black recessed plinth runs along the bottom, giving the rectangular form a grounded profile while preserving a simple contemporary silhouette. The cabinet is constructed from oak-effect wood-based board with a visible vertical grain and square edge banding. The main carcase panels and fixed shelves are specified at 25 mm, while the back panel is 9 mm and the door front is 22 mm. The open bay includes a dark grey or black horizontal board shelf that divides the space into upper and lower zones, with matching light-tone board used on the back and interior surfaces in that open section. The black door panel is paired with concealed hinges or a sliding-door track suited to the single front panel; the precise mechanism is not visually specified. The unit is finished with a black plinth that complements the door and shelf treatment. Functionally, the layout supports both accessible display and private storage. The open shelves are suited to books, decorative pieces, documents, or frequently used media items, while the enclosed right-hand compartment keeps less display-oriented contents out of view. The cabinet stands freely on its rectangular base and does not require built-in floor fixing, allowing flexible placement beside a sofa, along a wall, or next to a desk. For safety, the specification requires two wall anchors as an anti-tip restraint. The top supports a distributed load of 20 kg, each shelf supports 10 kg, and the enclosed compartment supports 15 kg. The design fits residential living rooms and studies, particularly where compact storage is needed without a fully enclosed appearance. It is also appropriate for small offices and hotel rooms as side storage for stationery, binders, personal items, and guest essentials. Procurement teams should note that this is an unbranded cabinet, model CAB-OAK-BK-700, offered in two color groups. It carries a 36-month warranty, weighs 26 kg net, and is supplied with reference packaging information indicating split cartoning and assembly time of 40 minutes per set. Wall anchoring should be planned during installation, especially in occupied or high-use interiors.

Compact Oak-Effect Storage Cabinet with Open Shelves and Black Door Specifications
