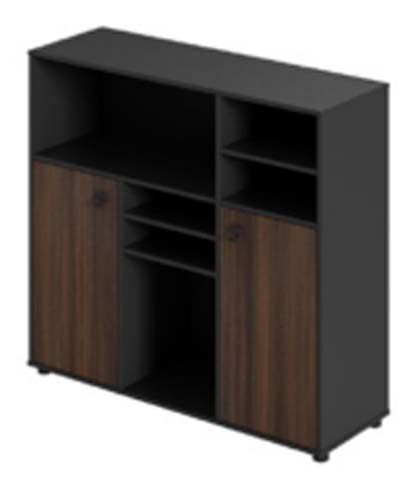

Mixed Open-Closed Freestanding Office Storage Cabinet with Walnut Slatted Doors (model OSC-BWSL-1200) is listed under Room Divider Planter Cabinet, with overall dimensions of 1200 × 400 × 1000 mm and main material of Particle‑board (PB). Load capacity: 25 kg per shelf. Certifications: contemporary,two-tone,style,mixed,open/closed,storage,freestanding,slatted-door,structure. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1200 x 400 x 1000 mm | |
|---|---|---|
| Left upper open cubby size | 500 x 350 x 300 mm | |
| Left slatted door cabinet interior size | 500 x 360 x 620 mm | |
| Center upper small open shelf size | 200 x 350 x 150 mm | |
| Center lower large open cubby size | 200 x 360 x 470 mm | |
| Right upper small open shelf size | 500 x 350 x 150 mm | |
| Right slatted door cabinet interior size | 500 x 360 x 620 mm | |
| Top surface usable area | 1160 x 360 mm | |
| Leveler foot height adjustment | 15 mm | |
| Carcass panel thickness | 18 mm | |
| Door panel thickness | 18 mm | |
| Shelf panel thickness | 15 mm | |
| Edge band thickness | 1 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Open shelf static load capacity | 25 kg per shelf | |
|---|---|---|
| Unit net weight | 45 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle durability | 80000 open/close cycles | |
| Adjustable shelf positions per cabinet | 3 positions | |
| Manufacturer limited warranty | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer frame and interior panels | 18mm E1-grade engineered wood with matte black melamine finish | |
|---|---|---|
| Slatted door fronts | Walnut-stained MDF with vertical fluted texture and matte clear topcoat | |
| Horizontal shelf panels | 15mm E1-grade engineered wood with matching matte black melamine finish | |
| Back panel | 3mm hardboard with matte black finish | |
| Door hardware | Matte black metal round knobs and 110-degree concealed steel hinges | |
| Base levelers | 15mm adjustable nylon and steel threaded leveler feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mixed storage configuration | 6 open cubbies + 2 closed door cabinets for separate display and concealed storage | |
|---|---|---|
| Adjustable interior cabinet shelves | 2 removable shelves per door cabinet with 3 height positions | |
| Floor leveling function | 4 adjustable corner feet to correct uneven floor surfaces | |
| Anti-tip safety feature | 1 wall-mounted anti-tip anchor strap to prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 1270 x 470 x 130 mm | |
|---|---|---|
| Gross shipping weight | 52 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office work areas | Serves as side storage for documents, supplies and display items next to workstations | |
|---|---|---|
| Private executive offices | Matches two-tone contemporary decor for storing work materials behind or beside desks |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - Storage furniture - Safety requirements, applicable for stability and load safety | |
|---|---|---|
| EN 14073-3:2004 | Office furniture - Storage furniture - Test methods for stability and structural strength |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture - Tests for structural durability, stability and load performance for commercial office use |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish qualityAcceptance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish qualityAcceptance; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
