Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 800 x 400 x 1200 mm | |
|---|---|---|
| upper open shelf internal dimensions | 760 x 370 x 280 mm | |
| upper open shelf clearance height | 280 mm | |
| lower cabinet internal height | 840 mm | |
| door panel height | 840 mm | |
| single door panel width | 380 mm | |
| top surface thickness | 25 mm | |
| carcass panel thickness | 18 mm | |
| back panel thickness | 9 mm | |
| base support foot height | 30 mm | |
| horizontal divider trim thickness | 20 mm | |
| floor clearance under cabinet | 30 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| product net weight | 37 kg | |
|---|---|---|
| total static load capacity | 91 kg | |
| upper open shelf weight capacity | 45 kg | |
| lower cabinet adjustable shelf weight capacity | 45 kg | |
| top surface weight capacity | 60 kg | |
| door hinge cycle rating | 80000 open/close cycles | |
| recommended static load per door | 10 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| carcass frame | 18mm thick engineered particleboard with off-white matte laminate finish | |
|---|---|---|
| door panels | 18mm thick engineered wood with vertical light oak woodgrain laminate finish | |
| top panel | 25mm thick engineered wood with light oak woodgrain laminate finish | |
| back panel | 9mm thick hardboard/engineered wood panel | |
| locking hardware | Steel keyed cam lock with two supplied keys, central mounting between doors | |
| support feet | Injection-molded plastic rounded feet, light off-white finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

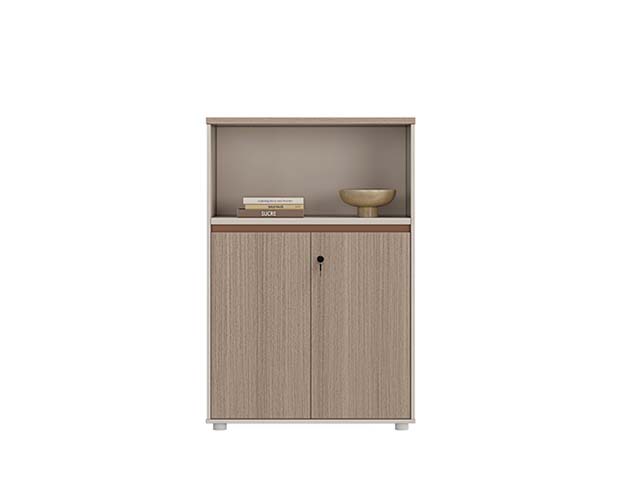

| upper open storage | Fixed open recessed shelf for frequently accessed items and display, no door covering | |
|---|---|---|
| lower secured storage | Double hinged doors secured by central key lock for private document/supply storage | |
| internal shelf adjustment | One position-adjustable internal shelf in lower cabinet, adjustable in 32mm increments | |
| door opening angle | 110 degrees, full access to lower compartment interior with anti-sag hinges |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| individual work area storage | Placed beside or behind office desks to store documents, supplies and display small decorative items | |
|---|---|---|
| shared office breakout space | Used in pantries or lounge areas to store service items, reading materials and amenities |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable to cabinet stability and load testing | |
|---|---|---|
| EN 312:2010 | Particleboard specifications, applicable for load-bearing panel performance classification | |
| EN 12521:2015 | Furniture strength, durability and safety for non-domestic seating/storage, applicable for commercial office use |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel dimensional stability and surface finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core substrate strength and formaldehyde emission limits | |
| GB 28007-2011 | Formaldehyde emission limits for indoor furniture and decorating materials, E1 grade requirement |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel dimensional stability and surface finish quality; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core substrate strength and formaldehyde emission limits; 3. GB 28007-2011: Formaldehyde emission limits for indoor furniture and decorating materials, E1 grade requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
