PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 900 mm
Overall cabinet size	1200 x 400 x 900 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	52 kg
Top distributed load	40 kg
Internal shelf load	20 kg per shelf
Door leaf load	8 kg per door
Storage volume	0.32 m3
Hinge cycle rating target	50000 cycles
Drawer-slide cycles	Not applicable
Recommended wall-anchor load	50 kg
Color and finish options	1 visible walnut-and-warm-gray scheme
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main case and doors	Walnut-veneer engineered wood with vertical fluted door fronts
Side panels and plinth	Warm-gray painted MDF or particleboard with rounded exposed edges
Top panel	Walnut-tone wood veneer or melamine surface on 30 mm engineered-board core
Contrasting rib band	Painted or wrapped vertical MDF ribs, 24 mm pitch
Back and gallery frame	Painted engineered-board rear lip and side returns forming a three-sided gallery
Hinges and fasteners	Concealed steel cup hinges with adjustment screws, target 35 mm cup diameter

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Enclosed storage access	Two equal hinged doors provide a 1040 mm front opening with push-to-open or concealed-pull operation
Internal organization	One horizontal shelf creates upper and lower storage zones, with 260 mm usable clearance at the highest setting
Gallery retention	An 80 mm three-sided top rail helps prevent display objects from sliding off the rear or side edges
Installation and restraint	Freestanding floor placement with a recessed plinth; wall anchoring is required for anti-tip protection in commercial use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office support area	Used behind or beside a desk for documents, refreshments and display objects, with an 820 mm service top and enclosed storage
Pantry or reception perimeter	Placed along a wall in a lounge, reception or tea point where the gallery top protects decor and doors conceal daily supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013+A1:2021	Non-domestic storage furniture safety, strength, durability and stability requirements for contract use
EN 16122:2012+A2:2021	Test methods for storage furniture, applicable to doors, shelves, structure and tip-over verification
EN 717-1:2004	Formaldehyde release determination by chamber method for wood-based panels
EN 14749:2016	Household and kitchen storage units and worktops safety requirements when used outside kitchen installation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel dimensions, workmanship and stability inspection
GB/T 3325-2017	Test method for wooden furniture, applicable to strength, durability, door operation and stability verification
GB 18584-2001	Indoor decorative materials - limit of formaldehyde emission for wood-based furniture, applicable to panel procurement acceptance
GB/T 10357.4-2013	Furniture mechanical test for storage units, applicable to cabinet strength and floor-standing stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel dimensions, workmanship and stability inspection;
2. GB/T 3325-2017: Test method for wooden furniture, applicable to strength, durability, door operation and stability verification;
3. GB 18584-2001: Indoor decorative materials - limit of formaldehyde emission for wood-based furniture, applicable to panel procurement acceptance;
4. GB/T 10357.4-2013: Furniture mechanical test for storage units, applicable to cabinet strength and floor-standing stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-FLT1200-WN2D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-FLT1200-WN2D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-FLT1200-WN2DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

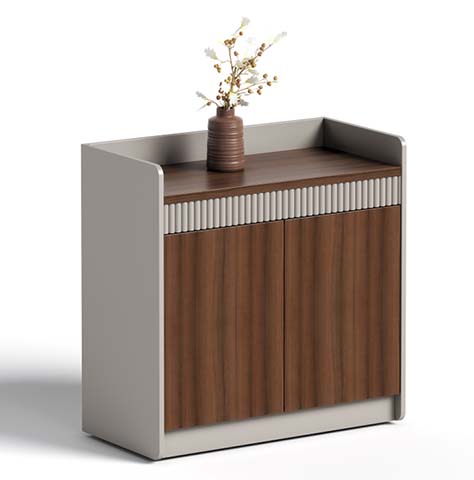

The Fluted Walnut Two-Door Low Storage Cabinet with Gallery Rail combines a structured low profile with warm walnut detailing and a restrained warm-gray base. Model LSC-FLT1200-WN2D, it is an unbranded low storage cabinet designed for areas where concealed storage and a composed display surface are needed. Its overall size is 1200 x 400 x 900 mm, with a recessed plinth that gives the case a calm, floating appearance while keeping the form grounded. The front is organized around two equal doors with vertical fluted detailing, while rounded side panels and base edges soften the rectangular silhouette. A three-sided gallery runs along the rear and sides of the top, finished as painted engineered-board trim that visually frames objects placed on display. Construction centers on a walnut-veneer engineered wood case and fluted wood doors. The top uses a walnut-tone wood veneer or melamine surface on a 30 mm engineered-board core, paired with warm-gray painted MDF or particleboard side panels and plinth. The contrasting rib band is formed from painted or wrapped vertical MDF ribs at a 24 mm pitch. The 25 mm carcass and shelf panels provide the main structural sections, while the back panel is 9 mm thick and the door fronts are 22 mm thick. Concealed steel cup hinges with adjustment screws support the doors, using a target 35 mm cup diameter. Access is through the two hinged doors, which provide a 1040 mm front opening and use push-to-open or concealed-pull operation. One horizontal shelf divides the interior into upper and lower storage zones, offering 260 mm of usable clearance at the highest setting and 0.32 cubic meters of enclosed storage volume. Load capacity is rated at 40 kg distributed across the top and 20 kg per shelf, with each door leaf rated for 8 kg. The 80 mm gallery rail helps prevent display objects from sliding off the rear or side edges. The 820 mm service top makes the cabinet suitable behind or beside an executive desk for documents, refreshments, and curated objects. It also works along a wall in pantries, reception areas, lounges, and tea points, where the fluted doors conceal daily supplies and the gallery top protects decor. The cabinet is freestanding but must be wall anchored for anti-tip protection in commercial settings. Procurement planning should account for a 52 kg net cabinet, a reference assembly time of 40 minutes per set, and delivery in split packaging. Logistics reference information lists one set across two cartons, with packaged gross weight and volume reference data noting 100 kg per set and 0.65 cubic meters per set; buyers should confirm final packing configuration with the supplier. The hinge cycle rating target is 50,000 cycles, and drawer slides are not applicable.

Fluted Walnut Two-Door Low Storage Cabinet with Gallery Rail Specifications
