PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	48 kg
Top static load	50 kg
Shelf static load	20 kg per shelf
Door swing rating	30,000 cycles
Leveling adjustment	10 mm
Storage volume	0.29 m3
Warranty target	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass boards	18 mm wood-composite panels with melamine surfaces
Front doors	Walnut-toned fluted engineered-wood panels with vertical ribbed finish
Top panel	25 mm walnut-toned laminated board with matching edge banding
Left side panel	Light gray smooth melamine panel with dark edge trim
Base support	Black molded or powder-coated leveling feet and recessed plinth rail
Door hardware	Black key lock, concealed hinges and four adjustable shelf pins per shelf

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Three-door access	Three independently hinged vertical doors open from the front to separate storage bays
Central locking	Black keyed lock on the center door secures confidential or general office storage
Interior organization	Two adjustable shelves provide three storage levels with 300 mm shelf spacing
Floor leveling	Four black adjustable feet keep the cabinet stable and elevate the base 20 mm above the floor

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office storage	Suitable behind workstations, in manager rooms or along partition walls for binders and personal storage
Reception or lounge display	Can hold decorative objects, books and reception materials on the 1200 mm top

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-1200-WF3

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-1200-WF3

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-1200-WF3Open Export Tool

Quick Actions

Post an RFQ

Product Description

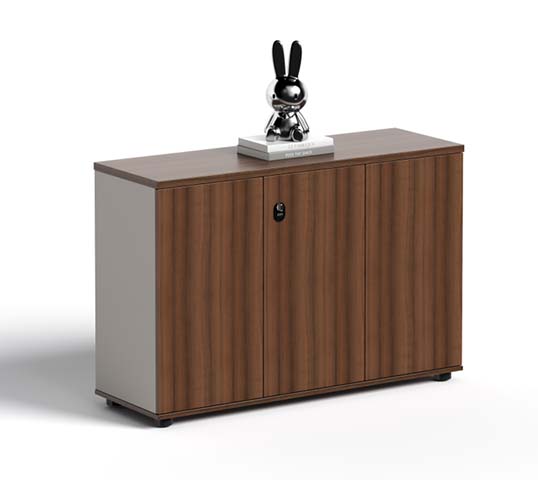

The Walnut Fluted Three-Door Low Storage Cabinet combines a structured low-profile silhouette with a contemporary mixed-finish exterior. Its front is defined by three vertical doors in walnut-toned engineered wood, finished with consistent vertical fluting that adds texture and subtle shadow detail. A light gray side panel with dark edge trim provides a restrained contrast, while the walnut-toned top is finished with matching edge banding. Black hardware, a recessed plinth rail, and black leveling feet complete the visual composition. Designed for floor-standing use, the cabinet presents a clean rectangular form suitable for placement along walls, beside work zones, or within reception and lounge settings. Its dimensions are 1200 x 400 x 800 mm, giving a useful top surface and storage height without dominating the surrounding space. Construction uses wood-composite panels with melamine surfaces for the main cabinet. The carcass boards are 18 mm thick, while the specified top and shelf thickness is 25 mm, the back panel is 9 mm, and the fluted door fronts are 22 mm. The cabinet is supported by four black molded or powder-coated adjustable feet and a recessed plinth rail. Concealed hinges support the three independently hinged front doors, and each adjustable shelf rests on four shelf pins. A black keyed lock is fitted to the center door, making the unit appropriate for general office items or materials that require controlled access. Behind the doors, two adjustable shelves create three storage levels, with shelf spacing of 300 mm and a total storage volume of 0.29 m³. The shelves are rated for a 20 kg static load each, while the top has a 50 kg static load rating. The door swing rating is 30,000 cycles, and the feet offer 10 mm of leveling adjustment, helping the cabinet sit steadily on uneven floors while elevating the base 20 mm above the surface. Weighing 48 kg net, the cabinet provides substantial storage without a visually heavy appearance. The unit is well suited to offices, manager rooms, workstation back-of-house areas, and partition-wall runs where binders, personal items, and operational materials need concealed storage. It also works in reception or lounge spaces, where the top can display books, decorative objects, or reception materials. For procurement, planners should confirm site access and delivery handling, as the reference packaging information describes split-carcass cartoning with a packaged gross weight of 100 kg per set. The listed assembly reference time is 40 minutes per set. Buyers should also verify packaging carton count with the supplier, note that the product is unbranded under model LSC-1200-WF3, and review the warranty target and lock configuration against project requirements.
