PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	800 × 400 × 1200 mm
Overall cabinet size	800 x 400 x 1200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight reference	42 kg
Top surface distributed load	30 kg
Open shelf distributed load	15 kg
Adjustable shelf distributed load	20 kg per shelf
Lower compartment filing capacity	24 standard A4 binders
Door hinge rating	40,000 opening cycles per hinge
Lock key combination	2 keys per cabinet
Recommended wall-anchorage load rating	50 kg pull-out resistance
Lower adjustable shelf distributed load	20 kg per shelf
Lower cabinet bottom panel distributed load	40 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Visible wood-grain doors	Vertical wood-grain melamine-faced particleboard doors with squared edges; substrate grade needs BOM verification.
Light cabinet exterior	Greige or warm light-gray melamine-faced panels on sides, top and open compartment; finish inferred from visible surfaces.
Board construction	18 mm thick panel case with 25 mm horizontal divider and 9 mm back panel; engineering specification based on visible office construction.
Door hardware	Two concealed hinges with black face-mounted key lock; lock is visible, hinge type is inferred from the door geometry.
Base supports	Four black plastic or rubber floor pads with recessed toe space; two front supports are visible.
Carcass panels	Greige melamine-faced engineered-wood sides, top, shelf and bottom, nominally 18 mm thick with 25 mm top

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper open storage	One handle-free open compartment provides 340 mm clear height for frequently used books, binders and display objects.
Lock mounting height	780 mm from floor
Lower enclosed storage	Two hinged doors enclose a 742 mm high compartment suitable for files, stationery and personal items.
Adjustable shelf organization	One 18 mm shelf adjusts on 32 mm hole pitch, providing storage zones of 355 mm and 355 mm.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office storage	Place beside a desk for books on the open shelf and confidential files behind locked lower doors.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSC-800W-400D-1200H-ODD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSC-800W-400D-1200H-ODD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSC-800W-400D-1200H-ODDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

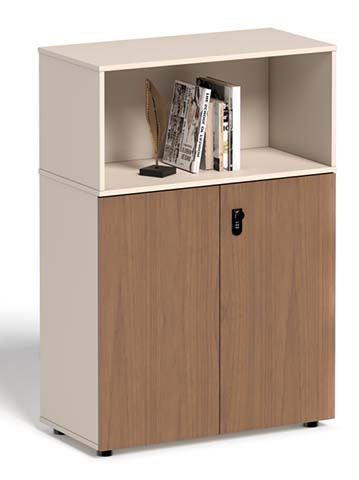

This low office storage cabinet combines an upper open shelf with lockable double doors, giving workspaces a compact floor-standing storage solution with both accessible display area and concealed security. Its two-tone appearance pairs a light greige cabinet exterior with vertical wood-grain doors and black recessed base supports, producing a restrained modern profile suited to professional interiors. The open compartment sits above the hinged doors, while the black key lock is face-mounted at a convenient height. Handle-free open shelving keeps the front elevation clean, and squared door edges contribute to a structured, functional look. Overall dimensions are 800 x 400 x 1200 mm, with a 780 mm lock mounting height. Construction uses melamine-faced engineered-wood panels for the sides, top, shelf, bottom, divider, and door fronts. The visible doors are vertical wood-grain melamine-faced particleboard, while the cabinet frame and open compartment use greige or warm light-gray melamine-faced panels. Listed panel details include a 25 mm carcass panel reference, 25 mm shelf, 22 mm door fronts, and a 9 mm back panel; supporting material notes also describe an 18 mm panel case with a 25 mm horizontal divider. Two concealed hinges support the double doors, and the cabinet rests on black plastic or rubber floor pads with a recessed toe space. The upper open compartment offers 340 mm clear height for frequently used books, binders, folders, and display objects. Behind the lower doors is a 742 mm high enclosed area designed for files, stationery, personal items, or materials requiring controlled access. One adjustable shelf uses a 32 mm hole pitch and divides the lower space into equal storage zones, allowing users to organize different item heights. The lower compartment has filing capacity for 24 standard A4 binders. Rated distributed loads are 30 kg on the top surface, 15 kg on the open shelf, and 20 kg per adjustable shelf. Each hinge is rated for 40,000 opening cycles, and the cabinet is supplied with two keys. This model is well suited to private offices, reception work zones, administrative areas, meeting rooms, and home offices where a desk-side cabinet can hold daily references above and secured documents below. It also works in residential studies or multi-use rooms needing neat file and office supply storage. Buyers should confirm the exact bill of materials, panel thicknesses, substrate grade, support material, and finish before specification, as supplied construction notes contain both formal dimensions and engineering references based on visible office construction. Procurement planning should also account for floor protection, assembly access, key control, and delivery packaging. Reference logistics indicate multi-carton packing and an assembly time of 40 minutes per set; package count, carton count, and packaged weight details should be verified with the supplier for the actual shipment.

Low Office Storage Cabinet with Open Shelf and Lockable Double Doors Specifications
