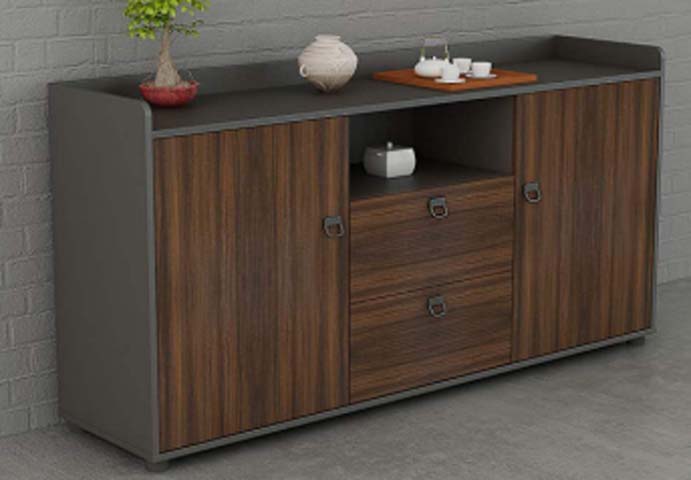

Two-Door Three-Drawer Walnut Wood Grain Sideboard (model SB-WAL-2D3D-1600) is listed under Room Divider Planter Cabinet, with overall dimensions of 1600 × 400 × 820 mm and main material of Particle‑board (PB). Load capacity: 50 kg. Certifications: walnut,grain,finish,enclosed,door,storage,drawer,open,display,niche,matte,dark,gray,frame. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1600 x 400 x 820 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| top surface static load capacity | 50 kg | |
|---|---|---|
| overall product net weight | 58 kg | |
| total enclosed storage volume | 0.36 m³ | |
| recommended maximum load per level | 30 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| cabinet carcass | 18mm E1 grade particleboard with walnut wood grain melamine | |
|---|---|---|
| top surface and end panels | 18mm E1 grade particleboard with dark gray matte melamine | |
| edge banding | 1mm thick PVC edge trim matching panel finish | |
| hardware pulls | Gunmetal gray die-cast zinc alloy ring pulls | |
| drawer slides | Side-mounted three-section full extension ball bearing slides | |
| base leveling feet | High density polymer adjustable glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| storage configuration | Two full-height hinged doors, one open display niche, three stacked drawers | |
|---|---|---|
| door operation | Left and right doors open outward on concealed hinges to access full-height storage | |
| drawer extension | Drawers extend fully on ball-bearing slides to provide complete access to internal contents | |
| surface protection | Rear raised backsplash prevents items from sliding off the back edge of the top |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| office pantry use | Suitable for office tea preparation and storage of cups, tea sets, and dry goods | |
|---|---|---|
| open office breakout area | Ideal for placement along brick or drywall partitions to provide storage and display for decorative items |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
