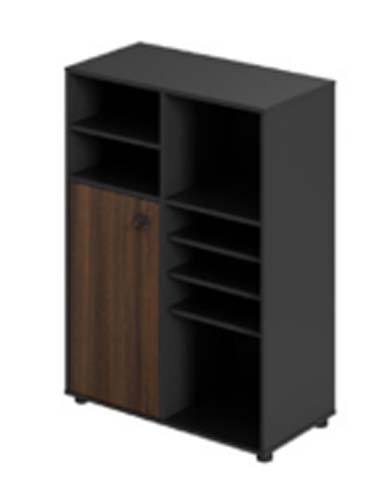

Two-Tone Freestanding Entryway Shoe Storage Cabinet with Open Shelves and Single Door (model SCB-ASYMW-8503801200) is listed under Room Divider Planter Cabinet, with overall dimensions of 850 × 380 × 1200 mm and main material of Particle‑board (PB). Load capacity: 5 kg. Certifications: Modern,minimalist,style,asymmetrical,split,storage,layout,mixed,open,and,closed,compartments,freestanding,floor-mounted,structure. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 850 x 380 x 1200 mm | |
|---|---|---|
| Left section width | 380 mm | |
| Right open shelf section width | 470 mm | |
| Base floor clearance | 140 mm | |
| Upper left small open shelf height | 180 mm | |
| Closed cabinet door height | 740 mm | |
| Right upper narrow shoe shelf spacing | 160 mm | |
| Right lower tall open compartment height | 300 mm | |
| Door panel thickness | 15 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 3 mm | |
| Open shelf thickness | 15 mm | |
| Top surface usable depth | 360 mm | |
| Internal closed cabinet shelf height | 340 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total shoe storage capacity | 16 pairs | |
|---|---|---|
| Per open shelf static load capacity | 5 kg | |
| Total product net weight | 33 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle durability | 50000 open/close cycles | |
| Anti-tip tether load rating | 50 kg | |
| Surface scratch resistance | 2000 abrasion cycles | |
| Manufacturer warranty period | 18 months | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main carcass construction | 15 mm thick particleboard with black matte melamine laminate | |
|---|---|---|
| Closed door panel | Walnut wood-grain veneered MDF with matching edge banding | |
| Door hardware | Round black metal pull knob, cold-rolled steel concealed hinges | |
| Base support feet | Black injection-molded plastic glide feet | |
| Back panel | 3 mm thick hardboard with black finish | |
| Shelf surfaces | Melamine-laminated engineered wood with 1 mm PVC edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Open shelf storage | Two upper left small shelves and five right tiered shelves provide immediate access for frequently worn shoes and small items | |
|---|---|---|
| Concealed storage | Single left hinged door encloses two interior storage levels to hide less frequently used footwear and entry supplies out of sight | |
| Tall boot storage | Lower right open compartment offers extended vertical clearance to accommodate tall boots without shelf adjustment | |
| Wall anti-tip protection | Included anti-tip tether secures cabinet to wall to prevent forward tipping when loaded |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential entryway and hallway | Fits narrow entry spaces to organize daily footwear and small entry essentials without occupying excess floor area | |
|---|---|---|
| Small apartment and studio storage | Compact split layout combines open and closed storage to maximize organization in compact living spaces |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic storage furniture, applies to stability and load testing | |
|---|---|---|
| EN 312:2010 | Particleboard performance specification, applies to structural panel durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural acceptance | |
|---|---|---|
| GB/T 4897-2015 | Particleboard performance requirements, applicable to structural panel quality verification | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance; 2. GB/T 4897-2015: Particleboard performance requirements, applicable to structural panel quality verification; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade required for indoor use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
