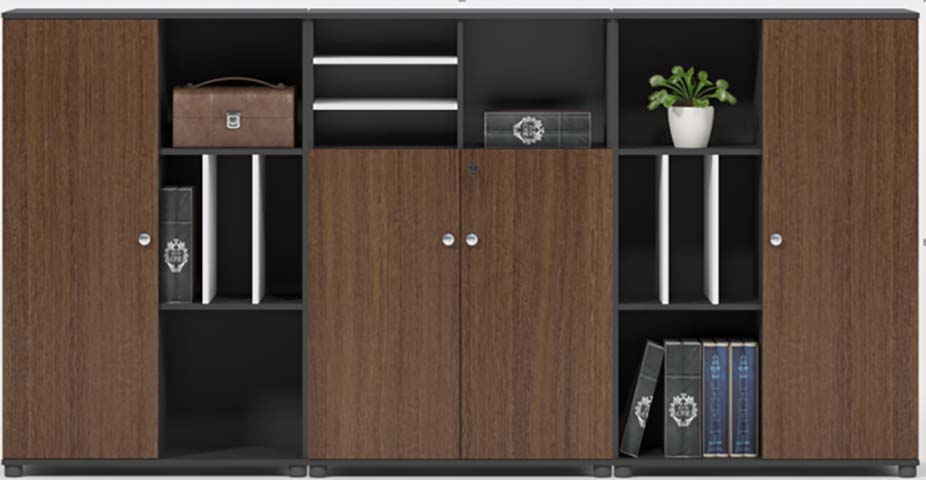

Contemporary Two-Tone Office Storage Cabinet with Lockable Doors and Open Shelves (model OFC-STR-3SEC-4DR-WLBLK) is listed under Room Divider Planter Cabinet, with overall dimensions of 1800 × 400 × 1200 mm and main material of Particle‑board (PB). Load capacity: 23 kg. Certifications: contemporary,style,mixed,open/closed,storage,lockable,door,compartments,freestanding,floor,unit. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1800 x 400 x 1200 mm | |
|---|---|---|
| Floor clearance under base | 50 mm | |
| Single side door width (left/right end) | 300 mm | |
| Central double-door section width | 600 mm | |
| Open shelf compartment inner width | 300 mm | |
| Open shelf compartment depth | 370 mm | |
| Upper open shelf clear height | 320 mm | |
| Middle open shelf clear height | 350 mm | |
| Lower open shelf clear height | 380 mm | |
| Central closed compartment internal shelf height | 340 mm | |
| Door panel thickness | 18 mm | |
| Carcass side/frame panel thickness | 25 mm | |
| Adjustable shelf thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 75 kg | |
|---|---|---|
| Static load capacity per shelf | 23 kg | |
| Hinge cycle rating | 80000 open/close cycles | |
| Lock mechanism keyed differs | 2 keys included per lock | |
| Recommended maximum uniform shelf load | 23 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Door panels | 18mm E1-grade engineered wood with walnut wood-grain melamine finish | |
|---|---|---|
| Internal carcass, shelves and frame | 25mm black melamine-faced engineered wood | |
| Door knobs and lock cylinders | Polished chrome-plated steel | |
| Door hinges | Cold-rolled steel with nickel plating | |
| Base support feet | Injection-molded black polypropylene | |
| Edge banding | 1mm thick PVC edge matching panel finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central double-door compartment | Keyed lock secures contents, fitted with 1 adjustable internal shelf | |
|---|---|---|
| Left/right single end doors | Non-locking hinged doors open to 1 fixed internal storage shelf | |
| Open shelf compartments | Fixed multi-tier shelves for open display and frequently accessed item storage | |
| Door opening angle | 110 degrees |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Placed behind desk for secure document storage and open display of awards or decor | |
|---|---|---|
| Open office collaborative zone | Used as shared storage for team supplies, reference materials and common equipment |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 12521:2015 | Strength, durability and stability requirements for office storage furniture | |
| EN 717-1:2004 | Formaldehyde emission test method for wood-based panels, E1 limit class |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, shelf load and stability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural integrity | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for engineered wood products, E1 grade required | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable for shelf load performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural integrity; 2. GB 18580-2017: Formaldehyde emission limits for engineered wood products, E1 grade required; 3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable for shelf load performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
