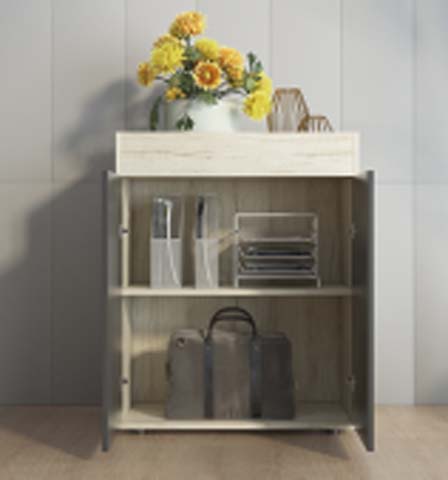

Two-Door Accent Storage Cabinet with Raised Legs and Display Top (model SC-2D-LW-825) is listed under Room Divider Planter Cabinet, with overall dimensions of 787 × 396 × 825 mm and main material of Particle‑board (PB). Load capacity: 68 kg. Certifications: light,wood,finish,double,hinged,doors,raised,leg,base,interior,shelving,flat,display,top. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 825 x 787 x 396 mm | |
|---|---|---|
| Floor clearance under base | 152 mm | |
| Top panel thickness | 32 mm | |
| Interior shelf thickness | 13 mm | |
| Leg cross-section | 38 x 38 mm | |
| Upper compartment height (below top) | 150 mm | |
| Middle shelf height from floor | 430 mm | |
| Door panel thickness | 18 mm | |
| Interior compartment vertical clearance (per shelf) | 292 mm | |
| Interior usable width | 730 mm | |
| Interior usable depth | 350 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Top surface static load capacity | 68 kg | |
|---|---|---|
| Total product net weight | 38 kg | |
| Door hinge open angle | 110 degrees | |
| Hinge cycle rating | 50000 open/close cycles | |
| Door catch pull force | 2 kg | |
| Surface water resistance | Wipe-clean, spill-resistant matte finish | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and panels | 15mm thick engineered wood with light washed wood grain veneer | |
|---|---|---|
| Support legs | Solid tapered wood legs with matching light finish | |
| Door hardware | Metal butt hinges with magnetic door catches | |
| Edge banding | 1mm thick matching PVC edge banding on all exposed panel edges | |
| Interior shelves | 13mm thick engineered wood shelves with position-adjustable shelf pins | |
| Back panel | 3mm thick hardboard back panel with recessed rabbet fitting |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Double outward-swinging hinged doors with magnetic catch retention | |
|---|---|---|
| Shelf adjustability | Two interior shelves support repositioning via pin holes on side panels | |
| Top surface use | Flat elevated top surface for decorative display and light item placement | |
| Storage layout | One small upper fixed compartment plus two lower enclosed shelf bays |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential entryway use | Compact footprint for entry storage of bags, books and small accessories | |
|---|---|---|
| Living room accent storage | Serves as decorative side storage for media accessories, linens and display items |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops - safety requirements and test methods | |
|---|---|---|
| EN 15185:2011 | Furniture - assessment of surface resistance to abrasion for wood furniture finishes | |
| EN 16121:2013 | Non-domestic storage furniture - safety, strength and durability requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for finished cabinet quality verification | |
|---|---|---|
| GB/T 4893.1-2021 | Surface abrasion resistance test for furniture finishes, applicable for finish durability acceptance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for finished cabinet quality verification; 2. GB/T 4893.1-2021: Surface abrasion resistance test for furniture finishes, applicable for finish durability acceptance; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
