PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 420 × 900 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight reference	82 kg
Total static load capacity	120 kg
Open shelf distributed load	30 kg
Top rail display load	20 kg
Per-door hardware load	15 kg
Internal adjustable shelf count	2 shelves
Storage volume	0.39 m3
Recommended wall-anchoring force	80 kg pull resistance
Service life target	8 years
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18 mm grey wood-composite panels with sealed edges and a smooth matte lacquered finish
Front fronts	Six push-to-open style grey panels with no visible external handles
Open shelf surface	Warm brown wood-grain laminate or veneered panel over composite board
Upper rail	Dark blue lacquered composite panel with rounded end profile
Side cheeks	25 mm thick grey lacquered panels with rounded front corners and metal edge line
Hardware	Concealed hinges or drawer slides, shelf supports, and wall anti-tip bracket required

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Three upper access panels and three lower doors provide six separated front faces for concealed storage
Open display area	Continuous rear-open wood shelf with one central vertical divider creates two display bays
Opening operation	Handle-less fronts should use push-latch or concealed pull hardware with 90-degree lower-door swing
Anti-tip installation	Floor-standing unit requires one rear wall strap or bracket into masonry or timber structure

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	1880 x 480 x 960 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Office reception, executive storage wall, meeting-room pantry, or modern residential dining area
User and operation	Suitable for procurement buyers needing concealed document or tableware storage with a decorative display zone for 10objects

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SIDE-CAB-1800-OPEN-6P

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SIDE-CAB-1800-OPEN-6P

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SIDE-CAB-1800-OPEN-6POpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Modern Low Storage Cabinet combines clean handle-less storage with an open display zone, giving commercial and residential interiors a refined sideboard solution. Its wide, low form presents six smooth grey front panels arranged in two horizontal rows, creating a calm, uninterrupted facade. Three upper access panels and three lower doors conceal separate storage areas, while the continuous warm wood-grain shelf behind the front section introduces a natural contrast and a decorative stage for objects. A dark blue lacquered top rail adds a subtle accent above the display area, and the rounded end profile softens the cabinet's linear silhouette. Grey lacquered side cheeks with rounded front corners and a slim metal edge line complete the contemporary look. The cabinet body is built from grey lacquered wood-composite panels with sealed edges and a smooth matte finish. Side cheek and shelf panels are substantial in section, while the back is a thinner panel suited to a fitted furniture form. Front panels use a push-to-open appearance with no visible external handles, supported by concealed hinges or drawer slides. Display surfaces use a warm brown wood-grain laminate or veneered panel over composite board, and the upper rail is finished in dark blue lacquer. Metal trim and hinges provide discreet structural and visual detailing. Functionally, the unit offers enclosed storage behind six separated front faces and includes two internal adjustable shelves for flexible arrangement. The rear-open display shelf has one central vertical divider, forming two display bays for curated items, books, tableware, or office accessories. Lower doors are designed for a 90-degree swing, and the handle-less panels should operate with push-latch or concealed pull hardware. As a floor-standing cabinet, it requires a rear wall strap or bracket fixed into masonry or timber structure to help prevent tipping. The sideboard is suited to office reception areas, executive storage walls, meeting-room pantries, and modern residential dining rooms. It works particularly well where buyers need hidden storage for documents, service items, or tableware alongside a visible display zone. The total static load capacity is 120 kg, with specified limits for the open shelf, top rail, and door hardware; these should be matched to intended use during planning. Overall dimensions are 1800 x 420 x 900 mm, with 0.39 cubic metres of storage volume and a net weight reference of 82 kg. Procurement teams should confirm packaging configuration, delivery access, assembly provision, and wall construction before order. The reference assembly time is 40 minutes per set, and installation should include the required anti-tip bracket.

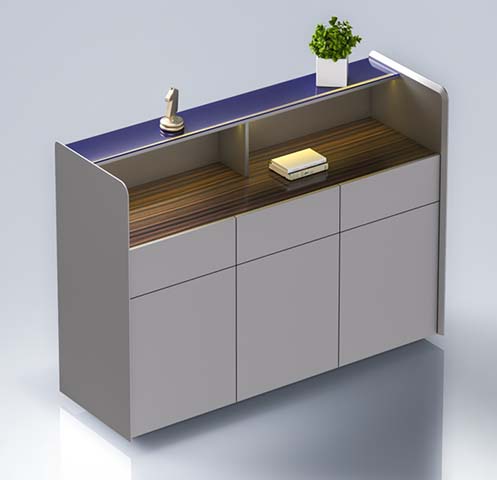

Modern Low Storage Cabinet with Open Display Shelf and Six Handle-Less Front Panels Specifications
