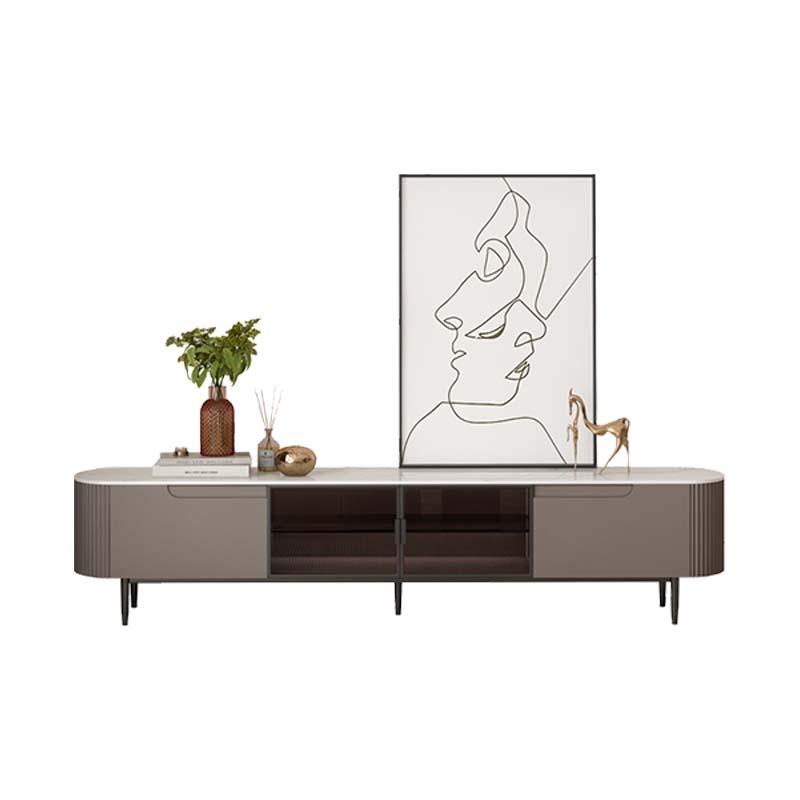

Product supplierModern Fluted TV Media Console with Rounded Top and Open Bays, Light engineered-stone look slab or high-pressure laminate, 30 mm thick, with eased rounded edge
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 404 × 587 mm | |
|---|---|---|
| Top slab thickness | 30 mm | |
| Carcass body height | 437 mm | |
| Leg height | 150 mm | |
| Under-cabinet ground clearance | 130 mm | |
| Side cabinet door width | 620 mm each | |
| Central open bay width | 460 mm each | |
| Open bay interior height | 220 mm | |
| Open bay interior depth | 330 mm | |
| Rounded end radius | 65 mm | |
| Fluted side panel width | 90 mm each | |
| Leg diameter | 20 mm | |
| Leg spread length | 2050 mm | |
| Recommended maximum TV screen size | 80 in | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 37.6 kg | |
|---|---|---|
| Total distributed top load | 60 kg | |
| Central shelf load per bay | 15 kg | |
| Side cabinet shelf load | 20 kg per shelf | |
| Recommended television base width | 1800 mm | |
| Recommended maximum television weight | 45 kg | |
| Door hinge or slide service life | 20,000 cycles | |
| Floor load footprint | 6 contact points | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top surface | Light engineered-stone look slab or high-pressure laminate, 30 mm thick, with eased rounded edge | |
|---|---|---|
| Carcass panels | Engineered wood panels with taupe-grey painted or laminated faces | |
| Side door fronts | Smooth taupe-grey engineered wood panels with recessed curved top finger pulls | |
| Fluted end panels | Vertical-ridged engineered wood panels wrapped around both rounded ends | |
| Open-bay lining | Dark brown or black interior panels with horizontal shelf surfaces | |
| Vertical divider | Dark engineered wood divider separating the two central equipment bays | |
| Legs | Six dark powder-coated steel or aluminum tapered cylindrical legs | |
| Back panel | Thin engineered wood back panel with cable openings recommended at media-bay positions | |
| Internal shelves | Fixed dark engineered wood shelves in the two open media bays | |
| Hardware | Concealed hinges or sliding-door tracks with matching dark fasteners | |
| Feet pads | Hard polymer leveling or protective pads under each metal leg | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left enclosed storage | 620 mm-wide door conceals media accessories and provides one internal shelf zone | |
|---|---|---|
| Right enclosed storage | Matching 620 mm-wide door provides closed storage opposite the open equipment bays | |
| Central media bays | Two 460 mm open compartments support soundbars, set-top boxes, routers, and game consoles | |
| Door operation | Flush doors use recessed curved top pulls and are suited to hinged or sliding hardware | |
| Cable management | Rear openings with 60 mm usable diameter should be provided behind each open bay | |
| Ventilation design | Open fronts support passive airflow; rear slots totaling 300 cm2 per bay are recommended for warm devices | |
| Television placement | Continuous 2200 mm top supports a television with central or separated leg bases | |
| Floor leveling | Six metal legs with polymer pads provide level placement on hard flooring | |
| Equipment access | Open shelves eliminate door obstruction for remote signals and routine device connection | |
| Surface maintenance | Smooth light top and painted cabinet faces are intended for dry-cloth cleaning | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 1 flat-pack carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room television wall | Suits a long sofa-facing wall with an 80 in television and central AV devices | |
|---|---|---|
| Modern apartment media area | Taupe fluted body and slim dark legs fit neutral contemporary interiors | |
| Hotel guestroom entertainment zone | Closed doors hide accessories while open bays keep receivers accessible | |
| Lounge or waiting area | Can display a screen and decorative objects without blocking reception circulation | |
| Open-plan living and dining space | Low form divides visually less than a tall storage wall while providing equipment storage | |
| Recommended pairing | Pair with a 2400 mm low-pile rug and neutral wall art for a coordinated media zone | |
| Placement constraint | Place against a flat wall with accessible sockets and 50 mm rear clearance for plugs and ventilation |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
