Automatic mm / inch conversion · Core engineering specifications
| Carcass Panel Thickness | 25 mm | |
|---|---|---|
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Net weight | 78 kg | |
|---|---|---|
| Top distributed load capacity | 60 kg | |
| Single shelf count per glass bay | 1 fixed level | |
| Storage compartment count | 4 front-access bays | |
| Recommended maximum TV base width | 1800 mm | |
| Color/finish options | 2 finishes | |
| Warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Top surface | 20 mm marble-look sintered-stone or engineered-stone slab | |
|---|---|---|
| Cabinet carcass | 18 mm engineered wood panels with taupe-brown painted or laminated finish | |
| Outer door faces | Matte taupe-brown wood-based panels with softened edge profile | |
| Fluted end panels | Ribbed engineered-wood or wrapped MDF panels in matching taupe finish | |
| Central doors | Smoked tempered glass panels set in bronze-toned metal or framed edging | |
| Decorative trim | Bronze-colored stainless-steel or aluminum profile at 12 mm width | |
| Central hinges | Exposed brass-look metal hinge hardware joining paired glass doors | |
| Back panel | 8 mm engineered-wood or hardboard back with ventilation slots recommended for AV heat control | |
| Base and underside | Dark engineered-wood or metal plinth with floor-protecting glides | |
| Interior surfaces | Dark brown melamine or painted wood shelf and side liners | |
| Edge protection | Bronze metal profile caps the stone-look top and vertical corners | |
| Hardware finish | Brushed brass or bronze plated hinges and trim |
Adjustment / rotation / tilt / mobility / storage features

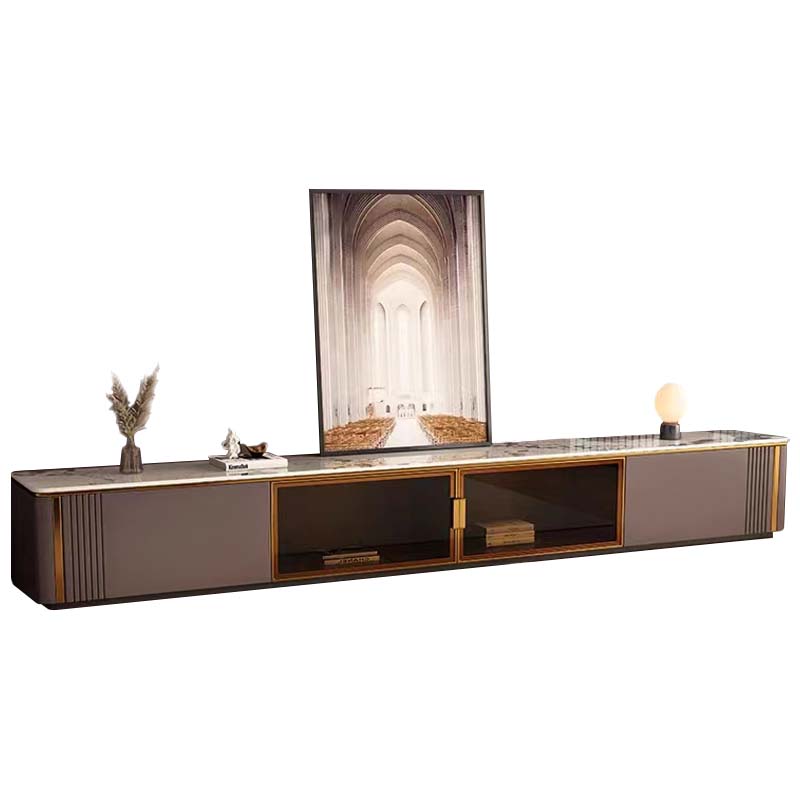

| Media display platform | 2400 mm low-height top supports a television, soundbar, artwork, lamp, and decorative objects | |
|---|---|---|
| Four-door concealed storage | Two solid outer doors hide clutter while two central glass doors display books and decor | |
| Glass-door access | Two side-hinged central doors open from the paired central brass hinge column | |
| AV equipment ventilation | Open interior cavities require rear cable slots and 2500 mm² ventilation openings for receiver heat control | |
| Cable management | Rear panel should include one 60 mm grommet or rectangular cable slot per AV bay | |
| Decorative display function | Smoked glass fronts reduce dust while keeping stacked books and objects visible | |
| Floor-mounted installation | Low cabinet rests on a recessed plinth or concealed glides without wall suspension | |
| Leveling adjustment | 4 adjustable foot pads recommended at 15 mm vertical adjustment | |
| Rounded safety edge | 45 mm radiused end corners reduce impact exposure in living-room walkways | |
| Surface cleaning access | Smooth non-porous stone-look top supports dry wiping and lightly dampened cleaning | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
Verified carton / gross weight / assembly / loading data
| Gross weight | 92 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Living room TV wall | Low 420 mm height supports a large television while maintaining a clear sightline from a sofa | |
|---|---|---|
| Modern apartment lounge | Bronze trim, taupe panels, and marble-look top suit neutral luxury interiors | |
| Hotel suite media area | Long top and concealed storage support TV, guest information, lamp, and decorative styling | |
| Reception waiting lounge | Closed outer bays conceal operational items while glass bays provide controlled display | |
| Condo feature wall | 2400 mm width anchors a broad wall without occupying deep floor space | |
| Show home display | Decorative fluted ends and smoked glass create a staged focal point under wall art | |
| Private study AV setup | Cable slots and ventilated bays can host a soundbar, receiver, and media player |
EU Market Access Requirements* EN Standards
| Formaldehyde panel recommendation | EN 13986 E1 classification for wood-based panels | |
|---|---|---|
| Furniture safety recommendation | EN 14749 safety and test requirements for storage units | |
| Glass safety recommendation | EN 12150 thermally toughened soda-lime silicate safety glass | |
| Surface reaction recommendation | EN 13501fire classification where project documentation requires material reaction rating |
Standards applicable to China-market projects
| Formaldehyde emission recommendation | GB/T 39600 E1 limit for engineered-wood panels | |
|---|---|---|
| Furniture storage safety recommendation | GB/T 3324 general technical requirements for wooden furniture | |
| Furniture durability test recommendation | GB/T 10357.5 strength and load test method for storage furniture | |
| Surface finish recommendation | GB/T 4893.1 wet-heat resistance and GB/T 4893.4 film hardness methods |
This product must meet the following technical requirements: 1. Formaldehyde emission recommendation: GB/T 39600 E1 limit for engineered-wood panels; 2. Furniture storage safety recommendation: GB/T 3324 general technical requirements for wooden furniture; 3. Furniture durability test recommendation: GB/T 10357.5 strength and load test method for storage furniture; 4. Surface finish recommendation: GB/T 4893.1 wet-heat resistance and GB/T 4893.4 film hardness methods; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
