Automatic mm / inch conversion · Core engineering specifications

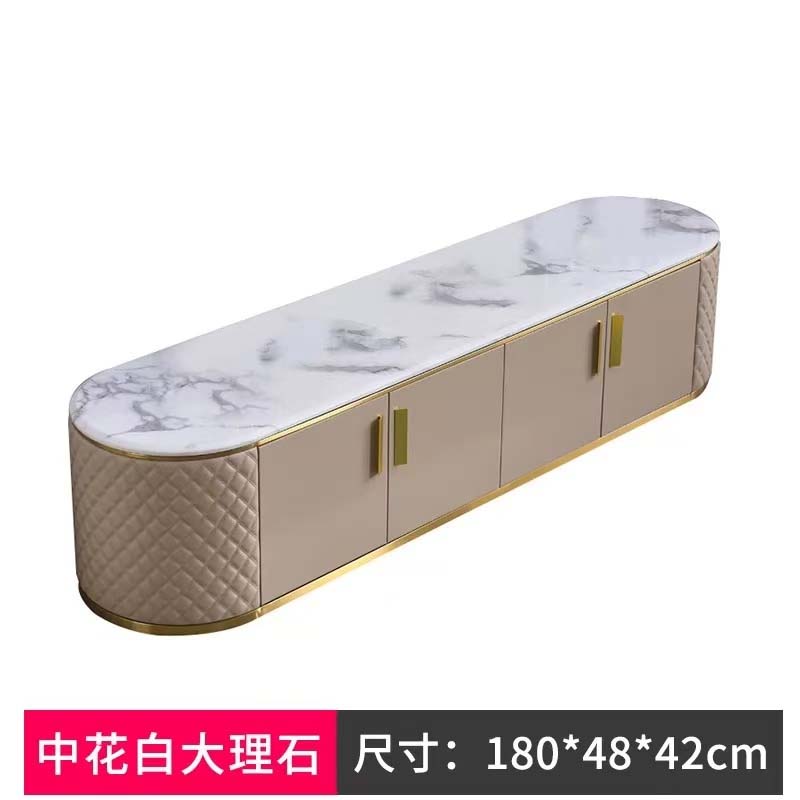

| Overall dimensions | 1800 x 480 x 420 mm | |
|---|---|---|
| Rounded-end capsule body | 240 mm semicircular end radius class at each end | |
| Top slab dimensions | 1800 x 480 mm footprint with 20 mm slab thickness | |
| Door opening width | 1320 mm total across four hinged front doors | |
| Single door panel | 330 x 330 mm with 18 mm panel thickness | |
| Vertical pull handle | 120 x 18 x 12 mm per handle | |
| Interior compartment | 630 x 400 x 320 mm per two-door bay | |
| Adjustable shelf | 610 x 380 x 18 mm per bay | |
| Door clearance | 300 mm maximum door swing radius with 95-degree hinge opening | |
| Back panel cable opening | 60 mm diameter, 2 openings at 120 mm and 300 mm above interior floor | |
| Base plinth clearance | 20 mm floor clearance under the gold base trim | |
| End panel quilted field | 360 x 330 mm with 45-degree diamond stitching grid | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Maximum television size | 75 in diagonal with a centrally supported base | |
|---|---|---|
| Top static load | 68 kg distributed across the marble top | |
| Shelf static load | 14 kg per adjustable shelf | |
| Cabinet storage load | 23 kg per two-door compartment | |
| Product net weight | 78 kg | |
| Door hinge durability | 50,000 open-close cycles | |
| Hinge static load capacity | 5 kg per door panel | |
| Tip-over restraint requirement | Included wall anchor rated to 45 kg pull-out force | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Top surface | Chinese white marble slab with grey veining and polished finish | |
|---|---|---|
| Top edge profile | 20 mm polished stone edge protected by champagne-gold metal trim | |
| Front doors | Four taupe smooth engineered-wood panels with painted or wrapped surface | |
| Rounded end panels | Taupe soft upholstered or leather-look panels with diamond-quilted stitching | |
| Decorative metal trim | Champagne-gold plated stainless steel or alloy channel at top and plinth | |
| Door handles | Four vertical champagne-gold metal pull handles in two paired sets | |
| Carcass | Moisture-resistant engineered-wood cabinet body with 18 mm nominal panel thickness | |
| Back panel | 8 mm engineered-wood or hardboard back with cable pass-through cutouts | |
| Internal shelf | 18 mm engineered-wood shelf with concealed shelf supports and 14 kg load design | |
| Base plinth | Gold-finish metal perimeter plinth with protective floor glides | |
| Hinges | Concealed steel hinges with 95-degree opening and soft-close damping | |
| Door padding layer | 8 mm foam or upholstery backing on quilted end panels |
Adjustment / rotation / tilt / mobility / storage features
| Front storage access | Four hinged doors form two independent two-door storage bays for media devices and accessories. | |
|---|---|---|
| Door operation | Each door pivots on two concealed hinges and opens 95 degrees for shelf access. | |
| Handle configuration | Two pairs of vertical gold pulls align with the two double-door bays and permit left or right hand operation. | |
| Cable management | Two 60 mm rear openings route television, set-top box and network cabling while keeping doors closed. | |
| Media ventilation | Rear 200 x 60 mm ventilation slots allow convective cooling in each equipment bay | |
| Shelf adjustment | Each bay accepts one shelf at 160 mm, 220 mm or 280 mm interior heights using metal shelf pins. | |
| Surface use | The polished top supports a television, soundbar and decorative objects while maintaining rounded-corner clearance. | |
| Floor placement | The continuous plinth sits freestanding with 20 mm glide clearance and should be wall-anchored for anti-tip safety. | |
| Cleaning access | Smooth doors and sealed marble top wipe clean with a soft damp cloth followed by immediate drying. | |
| Door softening | Soft-close hinges damp the final 15 degrees of travel to reduce impact noise | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
Verified carton / gross weight / assembly / loading data
| Net weight | 78 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Living room television wall | Sized for a 75-inch television with concealed media-device storage below the screen. | |
|---|---|---|
| Luxury residential lounge | Marble, taupe quilted ends and champagne-gold trim suit a high-end modern living room. | |
| Apartment media center | Low 420 mm height keeps sight lines open when placed beneath wall-mounted art or a television. | |
| Hotel suite entertainment area | Two enclosed bays conceal minibar items, media equipment and guest literature. | |
| Showroom or model home | Rounded capsule silhouette creates a safe, decorative display piece in premium interiors. | |
| Reception lounge display | Suitable for decorative objects and concealed AV equipment outside formal reception work areas. |
EU Market Access Requirements* EN Standards
| EN 16121 storage furniture safety requirements | Applies to strength, durability and stability acceptance for non-domestic storage use. | |
|---|---|---|
| EN 16122 storage furniture test methods | Use as the laboratory method for shelves, doors, structure and stability verification. | |
| EN 1728 furniture strength and stability methods | Use for static load and stability test procedures where applicable. | |
| EN 12521 furniture strength and durability requirements | Applies when the cabinet is specified for residential or general indoor furniture use. |
Standards applicable to China-market projects
| GB/T 3324 dimensional and structural verification | Applies to wooden cabinet furniture dimensions, tolerances and structural inspection if supplied in China. | |
|---|---|---|
| GB/T 3325 finish verification | Applies to surface finish durability and appearance acceptance for metal furniture components. | |
| GB 18584 indoor furnishing pollution control | Use for formaldehyde and soluble-metal release limits on panel furniture supplied indoors. | |
| GB/T 4893.4 surface wear test | Use for abrasion resistance acceptance of painted or laminated cabinet surfaces. | |
| GB/T 4893.7 cold-liquid resistance test | Use to verify resistance of finished cabinet surfaces to common household liquids. |
This product must meet the following technical requirements: 1. GB/T 3324 dimensional and structural verification: Applies to wooden cabinet furniture dimensions, tolerances and structural inspection if supplied in China.; 2. GB/T 3325 finish verification: Applies to surface finish durability and appearance acceptance for metal furniture components.; 3. GB 18584 indoor furnishing pollution control: Use for formaldehyde and soluble-metal release limits on panel furniture supplied indoors.; 4. GB/T 4893.4 surface wear test: Use for abrasion resistance acceptance of painted or laminated cabinet surfaces.; 5. GB/T 4893.7 cold-liquid resistance test: Use to verify resistance of finished cabinet surfaces to common household liquids.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
