| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Finished Top Thickness | 45 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Net weight | 68 kg | |
|---|---|---|
| Lift-top static load | 30 kg | |
| Main tabletop distributed load | 60 kg | |
| Drawer load per unit | 8 kg | |
| Pull-out tray load | 10 kg | |
| Enclosed cabinet storage volume | 0.08 m3 | |
| Recommended users | 4 people | |
| Slide durability | 30000 open-close cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

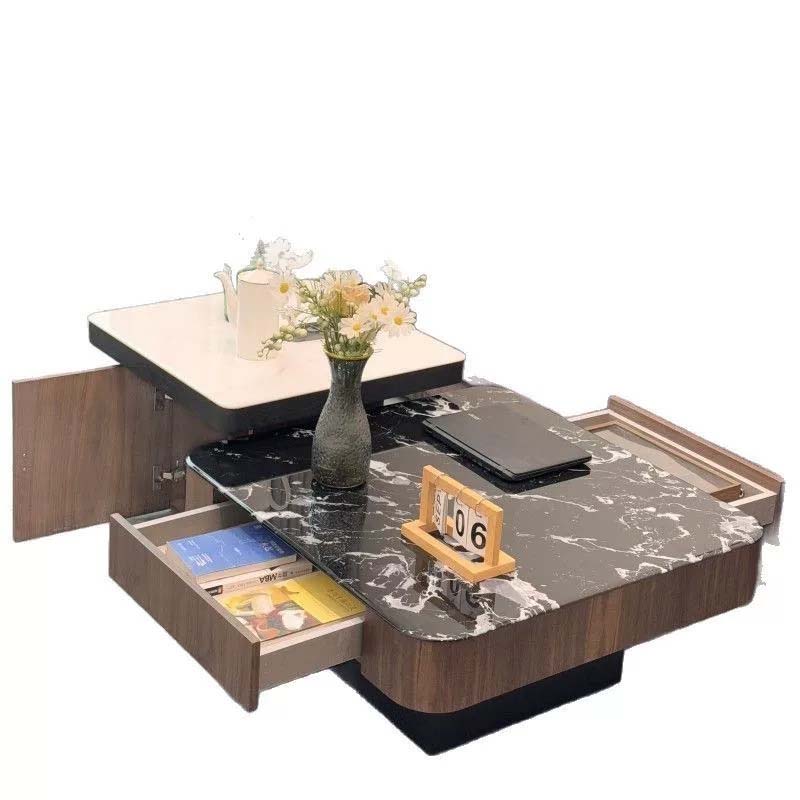

| Black main top | Gloss black marble-look hard surface with white veining and rounded edges | |
|---|---|---|
| Rear top | Gloss white stone-look panel with a black edge band | |
| Outer case | Walnut-tone wood-grain engineered-wood panels, 18 mm thickness | |
| Drawer fronts | Matched walnut-tone wood-grain panels with flush reveal detailing | |
| Lower plinth | Black recessed base panel creating a floating low-profile appearance | |
| Interior panels | Light gray or taupe engineered-wood interiors in the open drawer | |
| Drawer slides | Side-mounted metal telescopic slides with full or three-quarter extension | |
| Lift mechanism | Concealed metal lift arms with friction or spring-assisted positioning | |
| Door hinge | Concealed side-mounted cabinet hinge attached to the left vertical door | |
| Edge treatment | Black PVC or laminated edge banding around the top panels | |
| Surface protection | Smooth high-gloss coating or laminated wear layer on both visible tops | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features
| Lift-top work mode | The rear top rises 170 mm to a 620 mm working height for laptop use, writing, or dining from a sofa | |
|---|---|---|
| Two-level surface layout | The lower black surface remains at 450 mm while the rear white surface provides a separate raised display or serving zone | |
| Front drawer storage | One side-opening drawer provides 520 x 420 x 130 mm storage for books, magazines, and media accessories | |
| Right pull-out tray | A shallow right tray extends from the case and can hold a keyboard, documents, laptop, or serving items | |
| Left hinged cabinet | The vertical left door opens to an enclosed compartment for larger objects and concealed daily storage | |
| Independent access | The drawer, side tray, and door operate separately without requiring the lift top to be moved | |
| Rounded-edge safety | The main tabletop uses softened 60 mm-radius corners to reduce impact risk at seating height | |
| Floor placement | The recessed plinth supports the case directly on the floor without casters or wall attachment | |
| Cable-use potential | The raised platform can support a laptop while leaving the lower top free; no cable port is visible in the image | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
| Living room center table | Place in front of a 3-seat sofa for drinks, books, decor, and laptop use in apartments or family rooms | |
|---|---|---|
| Compact multifunctional room | Use in studio apartments where the raised top substitutes for a temporary dining or work surface | |
| Office lounge | Suitable for staff breakout areas requiring concealed storage and a raised surface for notebooks or refreshments | |
| Reception waiting area | Use in a modern reception lounge to hold magazines, remote controls, and decorative items out of sight | |
| Home media area | Position before a media wall while using the trays for remote controls, game accessories, and snacks | |
| Recommended surrounding clearance | Maintain 700 mm of circulation space on drawer sides for safe full-extension access |
EU Market Access Requirements* EN Standards
| Safety and stability | EN 12521:2015 safety, strength, and durability requirements are recommended for domestic storage tables | |
|---|---|---|
| Surface performance | EN 12720:2013 is recommended for resistance to cold liquids on the glossy table surfaces |
Standards applicable to China-market projects
| Dimensional and structural review | GB/T 3324:2017 general technical requirements for wooden furniture are recommended for case goods dimensions, workmanship, and stability | |
|---|---|---|
| Surface durability test | GB/T 4893.4:2013 is recommended for adhesion testing of film-covered wooden furniture surfaces | |
| Formaldehyde control | GB 18580:2017 is recommended for formaldehyde emission limits of engineered-wood components |
This product must meet the following technical requirements: 1. Dimensional and structural review: GB/T 3324:2017 general technical requirements for wooden furniture are recommended for case goods dimensions, workmanship, and stability; 2. Surface durability test: GB/T 4893.4:2013 is recommended for adhesion testing of film-covered wooden furniture surfaces; 3. Formaldehyde control: GB 18580:2017 is recommended for formaldehyde emission limits of engineered-wood components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
