PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 450 × 760 mm
Overall desk dimensions	600 x 450 x 760 mm
Overall chair dimensions	440 x 425 x 820 mm
Desk worktop thickness	30 mm
Desk under-shelf clearance	180 mm
Seat height from floor	460 mm
Seat panel dimensions	380 x 380 mm
Backrest dimensions	380 x 220 mm
Seated knee clearance under desk	580 mm
Steel frame tube wall thickness	1.5 mm
Steel tube outer dimension	25 x 50 mm
Foot cap diameter	30 mm
Edge trim thickness	2 mm
Desk cross-brace height from floor	120 mm
Chair leg spread width	420 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight	15 kg
Desk worktop static load capacity	100 kg
Recommended user age range	16 years
Frame corrosion resistance	240 hours neutral salt spray
Surface pencil hardness	H
Coating adhesion grade	2
Structural warranty period	5 years
Seam fastener spacing	100 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desk worktop	30mm E1 grade melamine laminated MDF with yellow wear-resistant surface
Seat and backrest panels	18mm E1 grade melamine laminated MDF with matching yellow surface
Edge trim	2mm red PVC impact-resistant edge banding on all exposed panel edges
Structural frame	1.5mm wall thickness oval steel tube with light gray powder coating
Undershelf storage panel	0.8mm cold-rolled steel sheet with matching light gray powder coating
Frame bracing	1.2mm wall thickness round steel cross tubes welded to leg frames
Foot caps	30mm black anti-slip rubber end caps fitted to all leg bottoms
Fasteners	Zinc-plated steel hex bolts and lock nuts for KD assembly
Surface treatment	Pickling, phosphating and electrostatic powder coating on all steel parts
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open under-desk storage shelf	Fixed full-width metal shelf for storing books, stationery and school bags
Cantilever chair design	Armless welded steel frame allows stacking 5 chairs high for storage
Fixed height positioning	Non-adjustable welded/bonded frame with fixed work and seat heights
Rounded safety edges	All panel corners rounded with PVC trim to prevent impact injury
Anti-slip floor protection	Rubber foot caps prevent scratching floors and reduce movement during use
Knock-down assembly	Bolted assembly with pre-drilled frames and panels for on-site installation
Central knee bay access	Open front under-desk space allows unobstructed leg entry and exit
Stackable chair storage	Uniform chair frame profile allows vertical stacking to save classroom storage space
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

K-12 classroom use	Fixed height set suitable for middle school general classroom daily study and writing use
Training room deployment	Durable steel frame suitable for institutional training centers and tutorial schools
Dormitory study space	Compact footprint fits individual student dormitory study areas with open book storage
After-school program facilities	Scratch-resistant laminate surfaces hold up to high-frequency daily use by students
Exam hall configuration	Stackable chairs and uniform dimensions enable fast room setup for standardized testing
Rental education furniture	Heavy-duty construction and replaceable panels suitable for short-term and long-term education rental fleets
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1729-1:2015	Furniture for educational institutions - Part 1: Functional dimensions
EN 1729-2:2012	Furniture for educational institutions - Part 2: Safety requirements and test methods

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3325-2017	Metal furniture general technical requirements
GB/T 3976-2014	Functional sizes and technical requirements for school desks and chairs
GB 18580-2017	Formaldehyde emission limits for wood-based panel products
GB/T 10357.1-2013	Furniture mechanical performance test for tables

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3325-2017: Metal furniture general technical requirements;
2. GB/T 3976-2014: Functional sizes and technical requirements for school desks and chairs;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panel products;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SDC-F6040-YR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SDC-F6040-YR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SDC-F6040-YROpen Export Tool

Quick Actions

Post an RFQ

Product Description

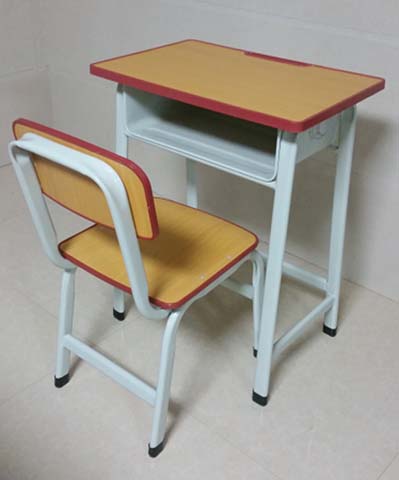

The Fixed-Height Single Student Desk and Chair Classroom Set, model SDC-F6040-YR, is an unbranded steel-wood public education furniture set designed for consistent, high-frequency use across learning environments. Visually, the set features warm yellow wear-resistant melamine panel surfaces accented by bold 2mm red PVC impact-resistant edge trim on all exposed panel edges, paired with a matte light gray powder-coated steel frame, delivering a bright, orderly aesthetic suited to structured learning spaces. All panel corners are rounded and finished with PVC trim to eliminate sharp impact points, and black anti-slip rubber foot caps cap every leg end for a polished, floor-safe finish.
Constructed for long-term durability, the set uses E1 grade melamine laminated MDF for all work surfaces: the 30mm thick desk worktop offers a flat, stable writing plane, while 18mm thick panels form the 380mm square seat and matching backrest. The structural frame uses 1.5mm wall thickness oval steel tube, reinforced with 1.2mm wall thickness round steel cross-bracing welded to leg assemblies, with all steel components treated via pickling, phosphating, and electrostatic powder coating to deliver 240 hours of neutral salt spray corrosion resistance, H-grade surface pencil hardness, and grade 2 coating adhesion. A 0.8mm cold-rolled steel undershelf matches the frame finish, and zinc-plated steel hex bolts with lock nuts enable secure knock-down assembly; rubber foot caps prevent floor scratching and unwanted movement during use. The full set carries a 5-year structural warranty, with a 15kg net weight, 100kg desk worktop static load capacity, and replaceable panels to extend service life.
Practical functionality is tailored to education settings: the fixed, non-adjustable frame supports consistent ergonomic positioning for recommended users aged 16, with a 460mm seat height, 760mm desk height, and 580mm seated knee clearance paired with an open front central knee bay for unobstructed entry and exit. A full-width fixed metal undershelf provides open storage for books, stationery, and school bags, while the armless cantilever chair design allows stacking up to 5 units high to simplify space reconfiguration. The set arrives in 2 cartons per unit, with pre-drilled components enabling 40 minutes of on-site assembly per set; 135 sets fit in a 20GP container at 85% space utilization for efficient bulk shipping.
This set is suited for middle school general classrooms, institutional training centers, tutorial schools, individual dormitory study spaces, after-school program facilities, standardized exam halls, and short- or long-term education furniture rental fleets, as its scratch-resistant laminate surfaces and heavy-duty frame withstand repeated daily use. Procurement teams should note the fixed, non-adjustable height is purpose-built for the specified user demographic, plan for on-site knock-down assembly labor, account for 2 cartons per set with a 23kg packaged gross weight per unit, and leverage the stackable chair design to reduce storage footprint during non-use periods.

Fixed-Height Single Student Desk and Chair Classroom Set Specifications
