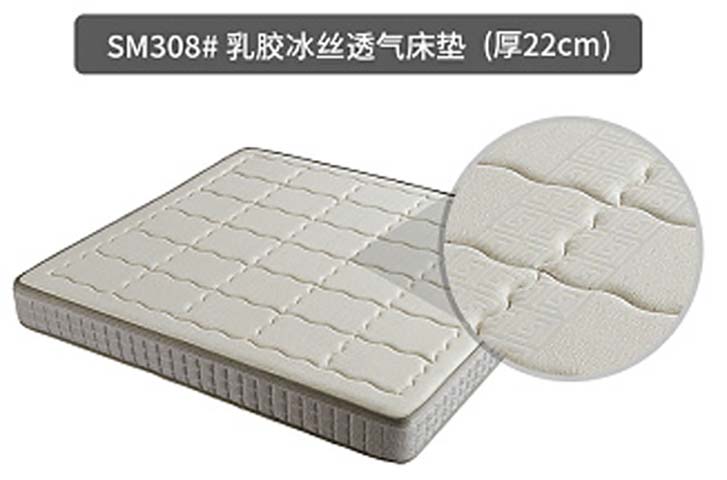

Product supplierSM308# 22cm Latex Ice-Silk Breathable Spring Mattress, Cool-touch ice-silk knitted fabric, grid-quilted
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 2000 × 220 mm | |
|---|---|---|
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Gross weight (1800mm width) | 50 kg | |
|---|---|---|
| Recommended static load capacity | 300 kg | |
| Mattress firmness rating | Medium | |
| Latex layer rebound rate | 85% | |
| Fabric air permeability | 1200 g/(㎡·24h) | |
| Spring fatigue test cycle rating | 200000 cycles | |
| Perimeter foam compression set | 5% | |
| Recommended user weight per sleeper | 110 kg | |
| Formaldehyde emission limit | 0.05 mg/m³ | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Top sleeping surface fabric | Cool-touch ice-silk knitted fabric, grid-quilted | |
|---|---|---|
| Comfort layer | ≥90% purity natural latex sheet, zoned pressure relief | |
| Support core | Individually wrapped pocket springs, motion-isolating | |
| Perimeter edge support | 35 kg/m³ high-density polyurethane foam encasement | |
| Side border | Woven gray mesh fabric, ventilated 3D air structure | |
| Bottom base fabric | Non-slip polyester fabric, anti-migration | |
| Quilt padding | 25 kg/m³ soft polyurethane wave foam | |
| Corner reinforcement | Rounded high-density foam bumpers, anti-collision | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Zoned pressure support | 5-zone contouring for head, shoulder, lumbar, hip, leg alignment | |
|---|---|---|
| Motion isolation | Individually wrapped springs reduce partner disturbance during movement | |
| Dual-season comfort | Cool ice-silk top for summer, insulated base for winter use | |
| Edge support stability | Full perimeter foam encasement prevents sagging when sitting on edges | |
| Ventilated air circulation | 3D mesh side border allows continuous airflow to reduce heat buildup | |
| No assembly required | Ready to use directly after unpacking, no tools or installation needed | |
| Noise reduction | Pocket spring fabric wrapping eliminates metal friction squeaks | |
| Non-customizable sizing | Available only in fixed 1500/1800×2000mm sizes, no custom cuts | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential master bedroom | Suitable for standard double/king size bed frames for adult couples | |
|---|---|---|
| Teenager bedroom | Medium firmness supports spinal alignment for developing users | |
| Hotel guest room furnishing | Durable spring core and breathable fabric fit high-frequency hospitality use | |
| Rental property furnishing | No assembly required, long service life reduces furnishing maintenance costs | |
| All-season use | Cool-touch top reduces summer sleeping heat, breathable structure prevents stuffiness | |
| Slatted and platform bed frames | 22cm thickness compatible with most standard fixed and adjustable bed bases |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1957:2012 | Applicable standard for mattress functional performance and test methods | |
|---|---|---|
| EN 16890:2016 | Applicable standard for ventilation performance of bedding comfort layers |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB 18401-2010 Class B | Applicable standard for textile safety of direct skin contact products | |
|---|---|---|
| GB/T 43007-2023 | Applicable standard for limit of harmful substances in mattress products |
Standardized tender description text
This product must meet the following technical requirements: 1. GB 18401-2010 Class B: Applicable standard for textile safety of direct skin contact products; 2. GB/T 43007-2023: Applicable standard for limit of harmful substances in mattress products; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
