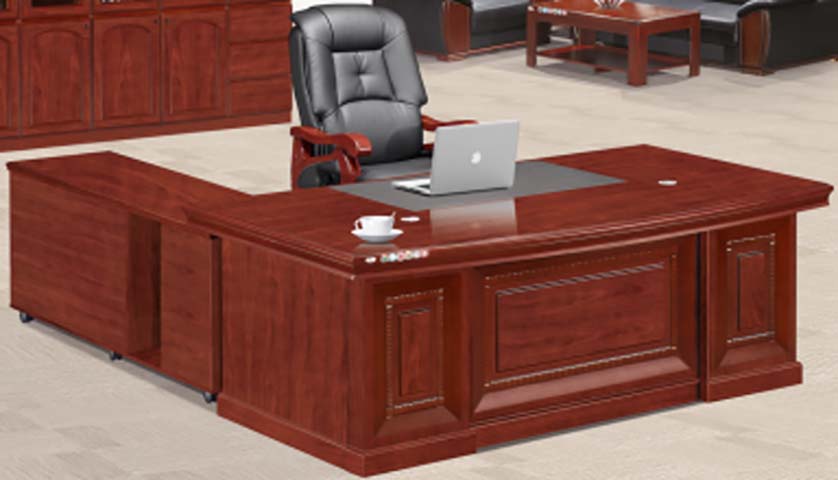

Traditional Red-Brown L-Shaped Solid Wood Veneer Executive Desk with Mobile Left Return (model EXD-L-RB-2800) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 1150 × 760 mm and main material of MDF. Load capacity: 114 kg. Certifications: Traditional,styling,L-shaped,configuration,mobile,caster-mounted,return,integrated,cable,management,enclosed,storage,pedestals. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2800 x 2350 x 760 mm | |
|---|---|---|
| Main desktop work surface | 2200 x 1150 mm | |
| Left return cabinet dimensions | 1600 x 600 x 660 mm | |
| Desktop thickness | 32 mm | |
| Edge band thickness | 3 mm | |
| Central seated knee clearance width | 800 mm | |
| Knee clearance height under desktop | 650 mm | |
| Modesty panel height | 420 mm | |
| Cable grommet diameter | 80 mm | |
| Plinth base height | 120 mm | |
| Caster wheel diameter | 50 mm | |
| Drawer internal usable height | 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static distributed load capacity | 114 kg | |
|---|---|---|
| Drawer slide dynamic load rating | 45 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Hinge cycle durability | 80000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Assembled product net weight | 200 kg | |
| Recommended maximum user weight rating | 150 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | High-density fiberboard core with cherry wood veneer | |
|---|---|---|
| Surface coating | High-gloss polyurethane paint finish | |
| Drawer components | Plywood drawer boxes with dovetail joinery | |
| Hardware components | Cold-rolled steel ball-bearing slides, zinc-alloy handles and locks | |
| Modesty panel insets | Matte black laminated MDF slats | |
| Base casters | Nylon swivel casters with rubber tread |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Round desktop grommet with under-desk cable tray route | |
|---|---|---|
| Mobile return storage | Locking casters on left return cabinet for flexible repositioning | |
| Drawer locking system | Centralized key lock secures all storage drawers | |
| Leveling adjustment | Concealed glides on main desk plinth base |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Primary use for senior management and C-suite workspaces | |
|---|---|---|
| Manager work area | Suitable for department director and senior supervisor offices |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, performance baseline for commercial desks | |
|---|---|---|
| EN 13722:2004 | Furniture storage units strength and durability requirements, applicable to return cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, structural and durability performance benchmark for office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural stability | |
|---|---|---|
| GB 18584-2001 | Formaldehyde emission limit for interior wooden furniture, mandatory for indoor office use | |
| GB/T 4893.9-2013 | Surface film impact resistance test for furniture coatings, applicable to desk finish |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural stability; 2. GB 18584-2001: Formaldehyde emission limit for interior wooden furniture, mandatory for indoor office use; 3. GB/T 4893.9-2013: Surface film impact resistance test for furniture coatings, applicable to desk finish; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
