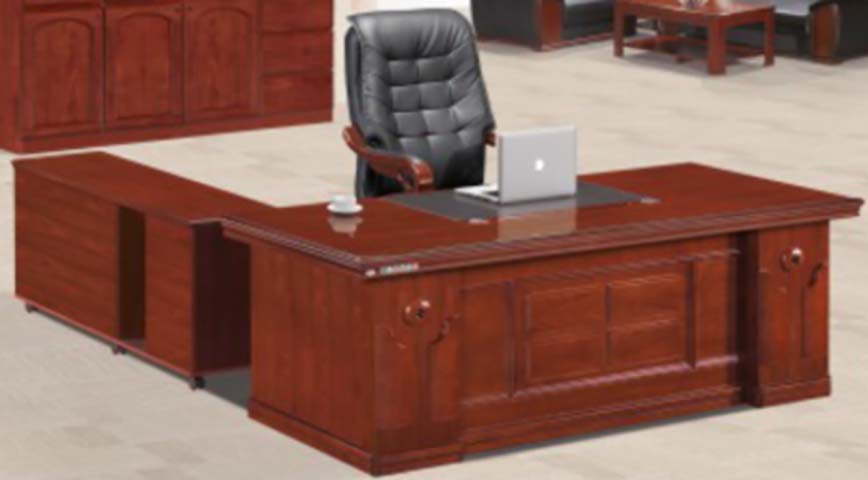

Traditional L-Shaped Executive Desk with Side Return Storage (model EXD-L2200-REDW) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 1800 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: traditional,style,L-shaped,configuration,integrated,storage,panel,base,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W×D×H) | 2200 x 1800 x 760 mm | |
|---|---|---|
| Main work surface depth | 900 mm | |
| Side return credenza length | 1800 mm | |
| Worktop thickness | 50 mm | |
| Decorative molded edge thickness | 20 mm | |
| Seated knee clearance width | 700 mm | |
| Knee clearance height | 610 mm | |
| Knee clearance depth | 450 mm | |
| Inset writing pad dimensions | 800 x 500 mm | |
| Drawer front panel thickness | 18 mm | |
| Cable grommet diameter | 60 mm | |
| Base plinth height | 80 mm | |
| Side return open shelf clearance height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Lacquer finish abrasion resistance | 1000 cycles | |
| Desk net weight | 173 kg | |
| Manufacturer limited warranty | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | Hardwood solids with red cherry wood veneer, high-gloss lacquer finish | |
|---|---|---|
| Desk base cabinetry | 18mm MDF core with cherry veneer, raised panel detailing | |
| Edge trim | Solid hardwood molded decorative edge, stain-matched to veneer | |
| Inset work surface pad | Black top-grain leather writing surface, non-slip backing | |
| Drawer hardware | Zinc alloy decorative pull handles, keyed cam locks | |
| Drawer slides | Cold-rolled steel full-extension ball-bearing slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2 lockable box drawers, 2 lockable file drawers, 1 side return cabinet, 1 open return shelf | |
|---|---|---|
| Cable management | Dual desktop cable grommets, under-desk cable tray to route power/data cords | |
| Leveling adjustment | 10mm height adjustable nylon glides to compensate for uneven office floors | |
| Drawers operation | Full-extension smooth glide drawers with positive safety stop, supports letter and legal filing |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Fits senior management/CEO offices as primary seated workstation with integrated storage | |
|---|---|---|
| Boardroom adjunct workspace | Serves as supplemental work surface adjacent to meeting spaces for document preparation |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks - safety and strength requirements for commercial office use | |
|---|---|---|
| EN 527-2:2016 | Office work tables - mechanical safety and structural performance test methods | |
| EN 13722:2004 | Furniture - test methods for strength and durability of storage units in office furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, covers structural performance, safety and durability for office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural integrity and finish | |
|---|---|---|
| GB/T 3327-2018 | Performance test for wooden office desks and tables, covers load and stability requirements | |
| GB 18584-2001 | Indoor decorating material - limit of harmful substances for wood furniture, formaldehyde emission limit |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural integrity and finish; 2. GB/T 3327-2018: Performance test for wooden office desks and tables, covers load and stability requirements; 3. GB 18584-2001: Indoor decorating material - limit of harmful substances for wood furniture, formaldehyde emission limit; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
