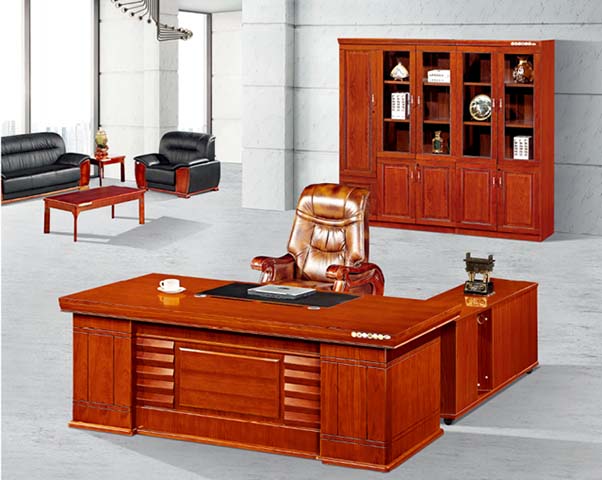

Traditional Red-Brown L-Shaped Solid Wood Executive Desk with Integrated Side Storage (model EXD-L-RB-2600) is listed under Traditional CEO Desk. Dimensions: 2600 × 2190 × 760 mm. Materials: 50mm thick solid wood veneer over E0 grade plywood, high-gloss red-brown varnish finish. Load capacity: 150 kg. Product Features: Traditional, executive, style, L-shaped, configuration, integrated, storage, varnished, wood, finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | HAIBANG | Model | EXD-L-RB-2600 |
| Overall dimensions (W × D × H) | 2600 × 2190 × 760 mm | Overall L-shaped footprint | 2600 x 2190 x 760 mm |
| Main work surface depth | 1000 mm | Side return depth | 600 mm |
| Desktop thickness | 50 mm | Edge banding thickness | 2 mm |
| Knee clearance width | 800 mm | Knee clearance height | 600 mm |
| Side cabinet height | 650 mm | Drawer internal height | 150 mm |
| Modesty panel height | 450 mm | Cable grommet diameter | 80 mm |
| Base plinth height | 50 mm | Decorative front panel thickness | 18 mm |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Desktop static load capacity | 150 kg | Drawer slide load rating | 45 kg |
| Drawer slide cycle rating | 50000 cycles | Cabinet door hinge cycle rating | 80000 cycles |
| Finish abrasion resistance | 2000 cycles | Net product weight | 150 kg |
| Recommended user weight capacity | 150 kg | Warranty period | 5 years |
| Top Static Load Reference | 150 kg uniformly distributed | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Desktop construction | 50mm thick solid wood veneer over E0 grade plywood, high-gloss red-brown varnish finish | Pedestal and cabinet panels | 18mm thick E0 grade MDF with solid wood veneer, matching varnish finish |
| Edge treatment | 2mm thick ABS edge banding, color-matched to wood finish | Drawer hardware | Cold-rolled steel ball-bearing full-extension slides, zinc-plated finish |
| Cabinet hardware | Cold-rolled steel soft-close hinges, polished metal pull handles | Inset writing surface | Black matte leather desk pad, non-slip backing |
| Storage configuration | 2 central drawers, 1 locking file cabinet, side return storage cabinet with 1 door | Cable management | Desktop cable grommet, under-desk cable tray, rear cable access cutout |
| Assembly type | Knock-down assembly with cam-lock fasteners, included assembly hardware | Orientation option | Right-side return configuration, field-reversible for left-side installation |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Executive private office | Suitable for CEO, senior manager private offices, formal traditional office aesthetic | Conference/meeting support | Usable for small in-office meetings at side return, document storage integrated |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2600 × 2190 × 760 mm | |
|---|---|---|
| Overall L-shaped footprint | 2600 x 2190 x 760 mm | |
| Main work surface depth | 1000 mm | |
| Side return depth | 600 mm | |
| Desktop thickness | 50 mm | |
| Edge banding thickness | 2 mm | |
| Knee clearance width | 800 mm | |
| Knee clearance height | 600 mm | |
| Side cabinet height | 650 mm | |
| Drawer internal height | 150 mm | |
| Modesty panel height | 450 mm | |
| Cable grommet diameter | 80 mm | |
| Base plinth height | 50 mm | |
| Decorative front panel thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 80000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Net product weight | 150 kg | |
| Recommended user weight capacity | 150 kg | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop construction | 50mm thick solid wood veneer over E0 grade plywood, high-gloss red-brown varnish finish | |
|---|---|---|
| Pedestal and cabinet panels | 18mm thick E0 grade MDF with solid wood veneer, matching varnish finish | |
| Edge treatment | 2mm thick ABS edge banding, color-matched to wood finish | |
| Drawer hardware | Cold-rolled steel ball-bearing full-extension slides, zinc-plated finish | |
| Cabinet hardware | Cold-rolled steel soft-close hinges, polished metal pull handles | |
| Inset writing surface | Black matte leather desk pad, non-slip backing |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2 central drawers, 1 locking file cabinet, side return storage cabinet with 1 door | |
|---|---|---|
| Cable management | Desktop cable grommet, under-desk cable tray, rear cable access cutout | |
| Assembly type | Knock-down assembly with cam-lock fasteners, included assembly hardware | |
| Orientation option | Right-side return configuration, field-reversible for left-side installation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for CEO, senior manager private offices, formal traditional office aesthetic | |
|---|---|---|
| Conference/meeting support | Usable for small in-office meetings at side return, document storage integrated |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements, applicable for structural performance | |
|---|---|---|
| EN 13722:2004 | Office furniture, storage units, strength and durability requirements, applicable for cabinet performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products, safety and performance standard, applicable for load and durability |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural safety | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate panel performance | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable for indoor air safety |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural safety; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate panel performance; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable for indoor air safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
