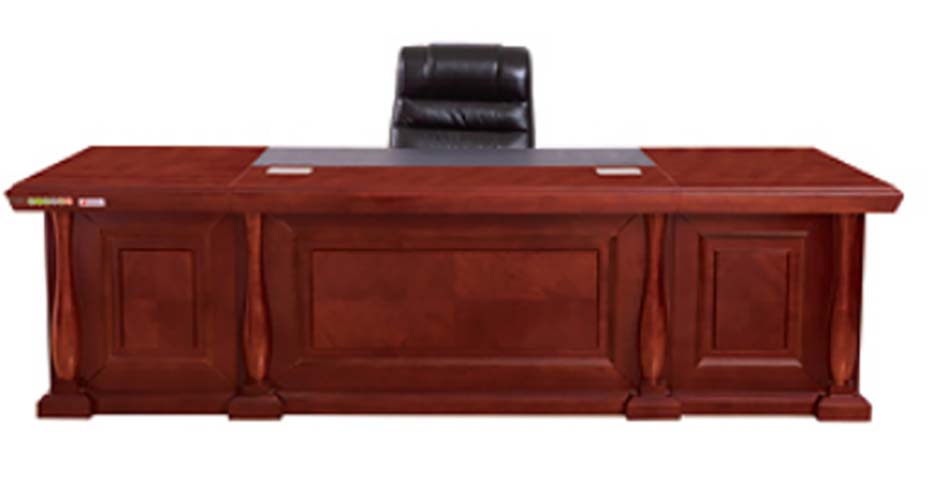

Traditional Red Mahogany Veneer Dual-Return Executive Desk (model EXD-MAH-2800-DR) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 1150 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,style,paneled,closed,storage,base,dual,side,returns,cable,grommets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 1150 x 760 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Edge band thickness | 3 mm | |
| Central writing pad size | 1200 x 500 mm | |
| Cable grommet cutout diameter | 80 mm | |
| Knee well width | 800 mm | |
| Knee well clearance height | 620 mm | |
| Floor clearance under base | 20 mm | |
| Decorative pilaster width | 80 mm | |
| Side return cabinet depth | 550 mm | |
| Bullnose edge radius | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Desk net weight | 131 kg | |
| Suggested user weight capacity | 150 kg | |
| Surface abrasion resistance | 4000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Core substrate | 18 mm E1-grade high-density fiberboard | |
|---|---|---|
| Surface finish | 0.6 mm red mahogany wood veneer with PU lacquer topcoat | |
| Writing insert | 5 mm thick black top-grain leather writing pad | |
| Structural accents | Solid hardwood turned pilasters and block feet | |
| Hardware | Brass-finish metal drawer pulls, locks, and full-extension steel glides | |
| Edge treatment | Solid mahogany wood bullnose edge banding |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two desktop grommets paired with under-desk cable tray | |
|---|---|---|
| Storage configuration | Dual side return pedestals with 4 utility drawers and 2 locking file drawers | |
| Leveling adjustment | Hidden adjustable glides under block feet | |
| Locking storage | Keyed lock on central file drawer |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Fits CEO, director, or senior management office spaces for formal seated work | |
|---|---|---|
| Corporate boardroom ancillary space | Works as a dedicated executive work surface adjacent to conference areas |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - Part 1: Dimensions, applicable to desk height and clearance | |
|---|---|---|
| EN 527-2:2016 | Office work tables - Part 2: Mechanical safety requirements, applicable to load testing | |
| EN 13722:2004 | Furniture - Strength and durability of storage units, applicable to cabinet pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Safety and performance standard for commercial office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural performance | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to core substrate performance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural performance; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to core substrate performance; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
