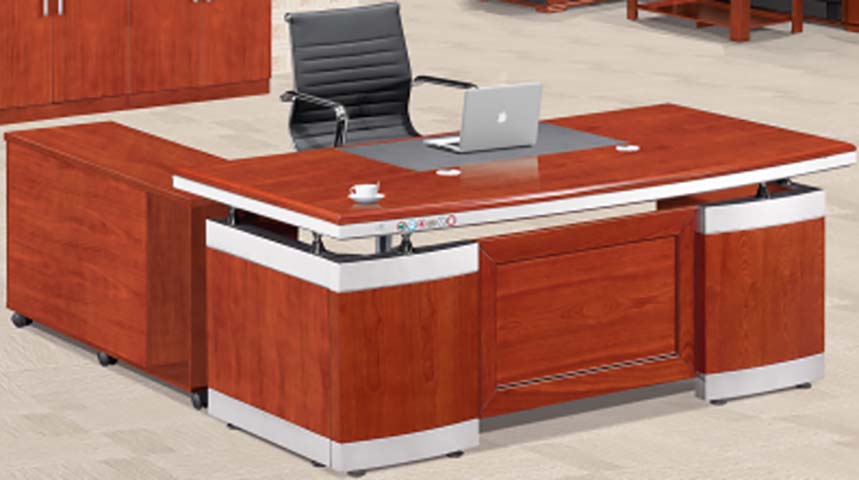

L-Shaped Electric Height-Adjustable Executive Desk with Mobile Wheeled Side Return (model HTAD-L2200-CHR-SIL-01) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 2000 × 1150 mm and main material of MDF. Load capacity: 125 kg. Certifications: L-shaped,sit-stand,design,mobile,caster,side,return,cable,management,grommets,push-button,height,control,silver,trim,solid,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall L-shape footprint | 2200 x 2000 mm | |
|---|---|---|
| Desktop height adjustment range | 1150 mm | |
| Main desktop depth | 900 mm | |
| Left side return width | 1200 mm | |
| Side return depth | 600 mm | |
| Minimum seated knee clearance height | 600 mm | |
| Cable grommet diameter | 60 mm | |
| Desktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Modesty panel thickness | 18 mm | |
| Silver trim band height | 80 mm | |
| Drawer internal width | 310 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static desktop load capacity | 125 kg | |
|---|---|---|
| Lifting speed | 32 mm/s | |
| Net product weight | 173 kg | |
| Side return caster load rating per wheel | 40 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and surface | E1-grade MDF core with cherry woodgrain high-gloss laminate | |
|---|---|---|
| Lift columns and base trim | Powder-coated steel with polished silver metallic accent finish | |
| Modesty panel and cabinet panels | 18mm thick engineered wood with matching cherry woodgrain veneer | |
| Desk mat inlay | Wear-resistant black PU leather writing surface | |
| Drawer hardware | Full-extension cold-rolled steel ball-bearing slides with keyed drawer lock | |
| Side return casters | Dual-wheel 50mm diameter black nylon swivel casters with locking brake |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Electric height adjustment | Dual-motor push-button control with 4 programmable memory positions | |
|---|---|---|
| Mobile side return storage | Locking wheeled 3-drawer cabinet that can be repositioned along desk edge | |
| Cable management | Two 60mm desk grommets with under-detachable cable tray for wire routing | |
| Telescoping modesty panel | Sliding privacy panel that maintains coverage across full height adjustment range |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for manager/executive workspaces with sit-stand working and file storage | |
|---|---|---|
| Premium corporate leadership suite | Matches formal cherry wood office furniture setups with coordinated storage cabinets |
EU Market Access Requirements* EN Standards
| EN 527-1:2011+A1:2019 | European standard for office worktables dimensional and safety requirements | |
|---|---|---|
| EN 15372:2016 | Durability and strength requirements for non-domestic office furniture tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | North American standard for desk products performance and safety testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for storage units including mobile pedestals and cabinet components |
Standards applicable to China-market projects
| GB/T 3326-2016 | Standard for office desk dimensions, strength and durability testing requirements | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for interior decoration wood-based furniture materials | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for table static load and stability |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Standard for office desk dimensions, strength and durability testing requirements; 2. GB 18584-2001: Limit of formaldehyde emission for interior decoration wood-based furniture materials; 3. GB/T 10357.1-2013: Furniture mechanical performance test for table static load and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
