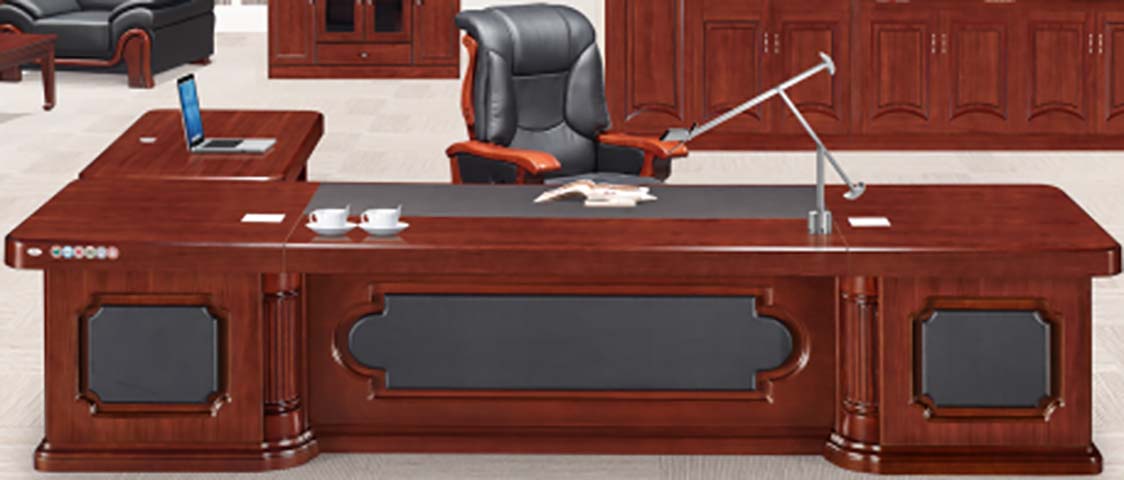

Traditional Red Wood Veneer L-Shaped Executive Desk with Inset Leather Writing Pad (model EXD-L2800-RV-LEAT) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 1780 × 780 mm and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,formal,styling,L-shaped,configuration,paneled,base,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 1780 x 780 mm | |
|---|---|---|
| Main desktop thickness | 80 mm | |
| Edge band thickness | 3 mm | |
| Main work surface depth | 1050 mm | |
| Side return length | 1780 mm | |
| Side return depth | 750 mm | |
| Knee clearance height | 650 mm | |
| Knee opening width | 1400 mm | |
| Inset writing pad dimensions | 1800 x 500 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer internal height | 150 mm | |
| File drawer internal width | 350 mm | |
| Base plinth height | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 50 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Leather writing pad abrasion resistance | 50000 cycles | |
| Wood veneer surface scratch resistance | Class 2 | |
| Product net weight | 350 kg | |
| User weight accommodation | 150 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 18mm thick MDF core with red wood veneer lamination | |
|---|---|---|
| Writing pad insert | 1.2mm thick full-grain leather over 5mm high-density foam backing | |
| Edge trim | Solid hardwood molded edge detailing with high-gloss polyurethane finish | |
| Base paneling | Red veneer MDF panels with matte black decorative recessed panels | |
| Support columns | Turned solid wood decorative columns at base corners with polished clear coat | |
| Hardware components | Satin chrome metal cable grommets, drawer locks, and 3-section ball-bearing slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Under-desk cable channel with dual desktop grommets to route power/data cables | |
|---|---|---|
| Storage configuration | Lockable side pedestal with 2 utility drawers and 1 hanging file drawer in the return | |
| Control panel | Integrated left-edge control panel for power and office function controls | |
| Assembly configuration | Knock-down assembly with 3 connected segments for on-site installation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suited for senior management/CEO offices requiring formal traditional styling | |
|---|---|---|
| Corporate boardroom ancillary workspace | Configurable as president's workspace adjacent to formal meeting areas |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Dimensional and safety requirements applicable to office work desks | |
|---|---|---|
| EN 527-2:2016 | Mechanical safety and strength requirements applicable to office desks | |
| EN 13722:2004 | Stability and structural performance requirements for office storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard applicable to desk products for commercial office use | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Performance standard applicable to office storage pedestals and cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements applicable to wooden office furniture desks | |
|---|---|---|
| GB/T 3327-2021 | Performance and dimensional standards applicable to office desks and workstations | |
| GB 18584-2001 | Limit of harmful substances applicable to wood-based interior furniture materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements applicable to wooden office furniture desks; 2. GB/T 3327-2021: Performance and dimensional standards applicable to office desks and workstations; 3. GB 18584-2001: Limit of harmful substances applicable to wood-based interior furniture materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
