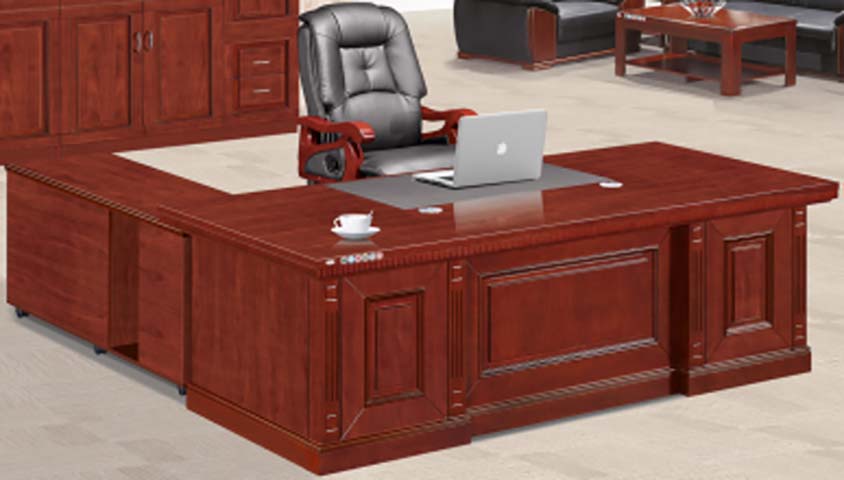

Traditional Carved L-Shaped Executive Desk with Left Side Return (model ED-L-REDWOOD-CARVED-2800) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 2200 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: traditional,style,L-shaped,configuration,storage,pedestal,base,carved,wood,trim. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 2200 x 760 mm | |
|---|---|---|
| Main work surface width | 2200 mm | |
| Main work surface depth | 1000 mm | |
| Left side return width | 1800 mm | |
| Left side return depth | 610 mm | |
| Desktop thickness | 50 mm | |
| Edge band/carved trim thickness | 15 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 700 mm | |
| Seated knee clearance depth | 500 mm | |
| Pedestal cabinet door height | 600 mm | |
| Plinth base height | 100 mm | |
| Cable grommet diameter | 80 mm | |
| Leveling glide thread length | 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Net weight (assembled) | 260 kg | |
| Recommended user weight capacity | 150 kg | |
| Surface scratch resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and veneer | High-density fiberboard core with 0.6 mm red wood veneer | |
|---|---|---|
| Edge construction | Solid hardwood carved molded edge trim | |
| Pedestal cabinet panels | 18 mm thick E1-grade wood composite panels with matching veneer | |
| Drawer slides | Cold-rolled steel 3-section ball-bearing slides with zinc plating | |
| Cabinet hinges | Cold-rolled steel concealed soft-close hinges with nickel plating | |
| Leveling glides | Nylon base with steel threaded stem |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Dual full-height pedestals with central knee opening, left return storage cabinet | |
|---|---|---|
| Drawer locking system | Centralized key lock securing all desk drawers | |
| Cable management | Dual desktop cable grommets + under-desk cable tray | |
| Leveling adjustment | Threaded nylon glides at all base corners adjust to uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Private executive office suites | |
|---|---|---|
| Supporting configuration | Pairs with matching executive chair, side credenza and coffee table as seen in reference imagery |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office worktables: dimensional and mechanical requirements | |
| EN 13722:2004 | Office furniture: storage cabinets performance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: safety and durability performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: performance requirements for office use |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Stability, strength and durability requirements for office desks | |
| GB 18584-2001 | Formaldehyde emission limits for wooden interior furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2017: Stability, strength and durability requirements for office desks; 3. GB 18584-2001: Formaldehyde emission limits for wooden interior furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
