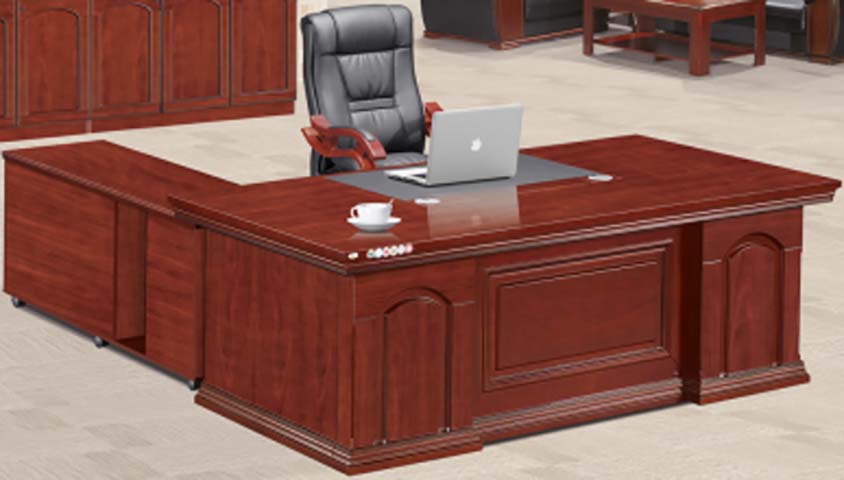

L-Shaped Red Wood Veneer Traditional Executive Desk with Left Side Return Cabinet (model EXD-L2800-MAH-PANEL) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 2200 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: traditional,style,L-shaped,configuration,paneled,pedestal,base,integrated,storage,caster-mounted,return. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 2200 x 760 mm | |
|---|---|---|
| Main work surface depth | 1150 mm | |
| Left side return width | 1200 mm | |
| Left side return depth | 600 mm | |
| Desktop thickness | 25 mm | |
| Edge trim thickness | 3 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 800 mm | |
| Seated knee clearance depth | 550 mm | |
| Plinth base height | 80 mm | |
| Cable grommet diameter | 60 mm | |
| Front panel thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide static load | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 100000 cycles | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Side return mobile caster load rating | 60 kg per caster | |
| Net desk weight | 130 kg | |
| Leveling adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Substrate material | High-density fiberboard core | |
|---|---|---|
| Surface finish | Red mahogany wood veneer with PU lacquer coat | |
| Edge trim | Solid wood molded edge with routed decorative detail | |
| Base plinth | Engineered wood with matching veneer, stepped decorative molding | |
| Hardware (hinges/slides) | Cold-rolled steel with zinc plating | |
| Mobile return casters | Nylon swivel casters with brake |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two surface-mounted cable grommets for desktop wiring | |
|---|---|---|
| Storage configuration | Integrated double pedestal storage, mobile left return cabinet with drawers | |
| Floor leveling | Adjustable glides under fixed pedestals for uneven floor alignment | |
| Return mobility | Lockable swivel casters on left return for flexible layout adjustment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Applicable space | Private executive offices, director/manager offices, corporate leadership suites | |
|---|---|---|
| Recommended configuration | Pair with matching high-back executive leather chair and conference side table |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements applicable for commercial desk use | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units performance requirements for integrated cabinet sections | |
| EN 14073-2:2004 | Office furniture storage safety requirements for drawer and door components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for integrated cabinet and drawer sections |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard/fiberboard furniture substrate performance requirements for indoor use | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB/T 4897.3-2003: Particleboard/fiberboard furniture substrate performance requirements for indoor use; 3. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
