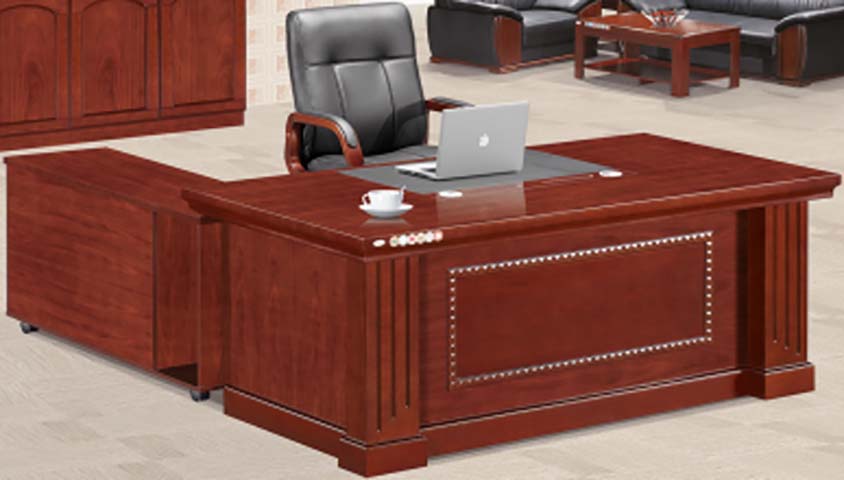

Traditional Mahogany Veneer L-Shaped Executive Desk with Mobile Left Return (model EXD-LMAH-2200) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 2000 × 760 mm and main material of MDF. Load capacity: 159 kg. Certifications: traditional,formal,style,L-shaped,fixed-height,mobile,caster,return,paneled,inlay,detailing. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall L-shape footprint | 2200 x 2000 x 760 mm | |
|---|---|---|
| Main desktop width | 2108 mm | |
| Main desktop depth | 1041 mm | |
| Desktop thickness | 76 mm | |
| Left mobile return width | 1397 mm | |
| Left mobile return depth | 610 mm | |
| Knee clearance height | 650 mm | |
| Knee clearance width | 1200 mm | |
| Inset writing mat size | 699 x 900 mm | |
| Edge band thickness | 2 mm | |
| Caster diameter | 50 mm | |
| Cable grommet diameter | 60 mm | |
| Drawer internal depth | 450 mm | |
| Plinth base height | 100 mm | |
| Front panel inlay border width | 20 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 159 kg | |
|---|---|---|
| Drawer slide load rating per drawer | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 400 cycles | |
| Return caster load rating per caster | 40 kg | |
| Static floor load per support | 80 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | MDF and hardwood core substrate | |
|---|---|---|
| Top surface finish | Mahogany wood veneer with high-gloss lacquer | |
| Inset writing surface | Black faux leather writing mat | |
| Support plinth | Solid hardwood block base with veneer cladding | |
| Drawer hardware | Steel ball-bearing drawer slides with metal pulls | |
| Return casters | Nylon swivel casters with metal mounting stems |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mobile return storage | Left-side return unit on 360° swivel casters for flexible positioning | |
|---|---|---|
| Cable management | Dual desktop cable grommets with under-desk cable tray for wire routing | |
| Drawer storage configuration | Pencil drawer plus locking file drawer for office supplies and documents | |
| Fixed work height | Fixed seated work height at 760mm for standard executive chair use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Formal management workspace for senior leadership and client meetings | |
|---|---|---|
| Corporate board adjunct space | Supplemental workspace adjacent to conference rooms for meeting prep |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and dimensional requirements | |
|---|---|---|
| EN 13722:2004 | Furniture strength and durability for storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance and safety standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 4893.1-2021 | Surface wear resistance test for furniture finishes | |
| GB/T 10357.1-2013 | Table static load and stability test for office desks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 4893.1-2021: Surface wear resistance test for furniture finishes; 3. GB/T 10357.1-2013: Table static load and stability test for office desks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
