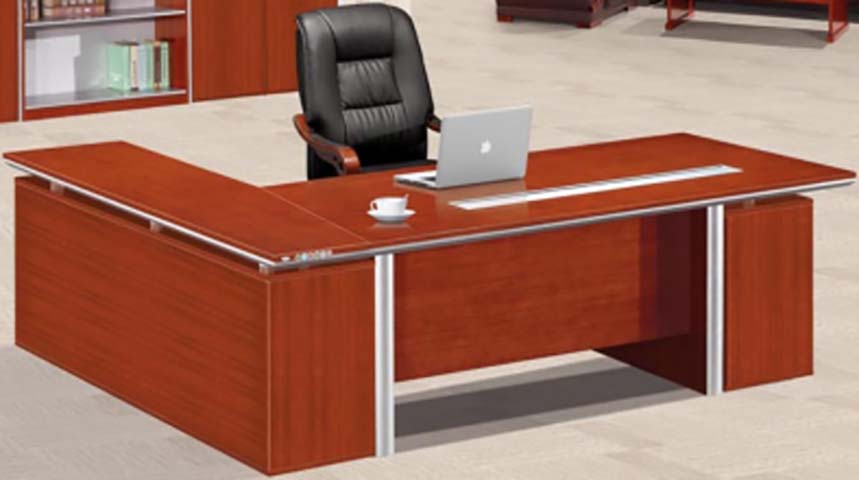

L-Shaped Red-Brown Veneer Executive Desk with Chrome Trim and Side Return Pedestal (model EXD-L2400-CHR-MAH) is listed under Traditional CEO Desk, with overall dimensions of 3200 × 1100 × 780 mm and main material of MDF. Load capacity: 160. Certifications: fixed,height,L-shaped,corner,layout,integrated,storage,pedestal,desktop,cable,management,commercial,office,use. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 3200 x 1100 x 780 mm | |
|---|---|---|
| main desktop width | 2000 mm | |
| main desktop depth | 1100 | |
| side return width | 1200 | |
| side return depth | 600 | |
| desktop thickness | 25 | |
| chrome edge trim thickness | 2 | |
| chrome support post diameter | 60 | |
| seated knee clearance height | 650 | |
| seated knee clearance width | 1200 | |
| seated knee clearance depth | 500 | |
| pedestal cabinet height | 750 | |
| linear cable channel length | 1200 | |
| cable channel width | 80 | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 160 | |
|---|---|---|
| individual drawer static load | 15 | |
| drawer slide cycle rating | 50000 | |
| hinge cycle rating | 100000 | |
| surface abrasion resistance rating | 2000 | |
| net weight reference | 190 | |
| warranty period | 10 | |
| available finish color count | 3 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| desktop substrate | 25mm high-density MDF core | |
|---|---|---|
| desktop finish | Glossy red-brown wood veneer, UV-cured clear topcoat | |
| edge trim | 2mm thick polished chrome metal strip | |
| support posts | 60mm diameter polished chrome tubular steel | |
| pedestal panels | 18mm MDF with matching red-brown wood veneer | |
| drawer hardware | Steel ball-bearing full-extension slides, keyed cam locks |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| cable management | Recessed linear central channel with cover for cable routing | |
|---|---|---|
| storage configuration | Fixed left side return pedestal with enclosed lockable storage drawers | |
| leveling adjustment | Integrated bottom leveling glides for uneven floor adjustment | |
| assembly method | CKD cam-lock assembly with included hardware kit |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Suitable for CEO/Director private offices, provides ample work and storage space | |
|---|---|---|
| corporate management work area | Appropriate for senior management workstations in medium to large office facilities |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - Dimensions, applicable for desk height and clearance compliance | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables - Mechanical safety requirements, applicable for load and stability testing | |
| EN 13722:2004 | Furniture - Strength and durability of storage units, applicable for pedestal performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for safety, durability, and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests for safety, durability, and structural performance | |
| ANSI/BIFMA e3-2019 | Furniture Sustainability Standard, applicable for environmental performance evaluation |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural performance verification | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate material quality verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural performance verification; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate material quality verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
