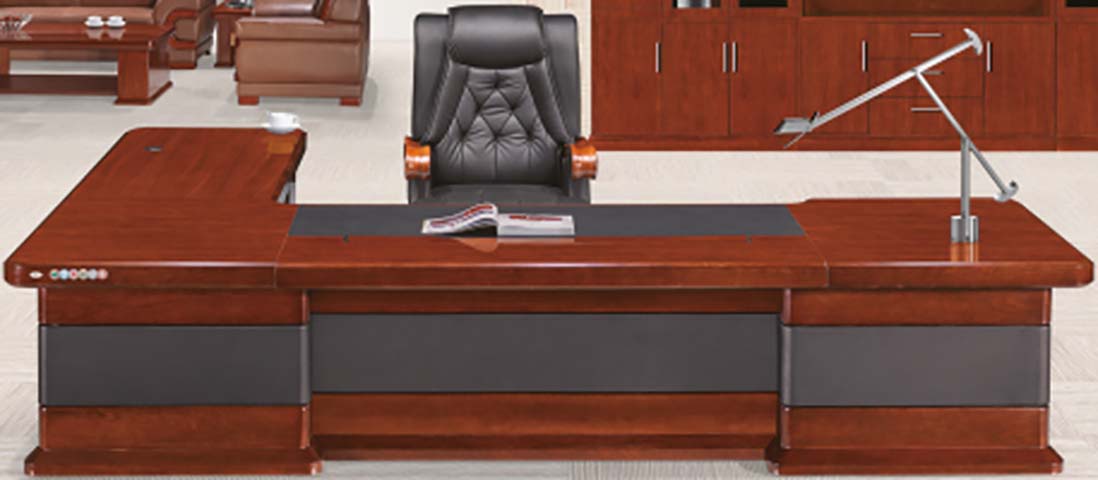

L-Shaped Traditional Executive Office Desk with Inset Writing Mat (model EXD-L2200-CHY-01) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 2000 × 775 mm and main material of MDF. Load capacity: 136 kg. Certifications: Traditional,style,L-shaped,corner,layout,full,pedestal,base,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (main desk + left return) | 2200 x 2000 x 775 mm | |
|---|---|---|
| Main desktop work surface width | 2200 mm | |
| Main desktop work surface depth | 1000 mm | |
| Left side return width | 1200 mm | |
| Left side return depth | 600 mm | |
| Desktop thickness | 25 mm | |
| Edge band thickness | 3 mm | |
| Seated knee clearance height | 622 mm | |
| Seated knee clearance width | 700 mm | |
| Inset writing mat dimensions | 1600 x 400 mm | |
| Pedestal base plinth height | 50 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer internal usable depth | 450 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 136 kg | |
|---|---|---|
| Single drawer slide dynamic load | 45 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Hinge open/close cycle durability | 100000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Stain and heat resistance | 120 C | |
| Leveler adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | High density MDF core with cherry wood veneer | |
|---|---|---|
| Inset writing surface | Black matte bonded leather | |
| Edge profile | Solid cherry wood bullnose trim | |
| Base panel construction | Veneered MDF with dark matte laminate inlays | |
| Drawer hardware | Cold-rolled steel ball-bearing slides | |
| Leveling glides | Nylon base with steel threaded stems |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Dual desktop grommets with under-desk cable tray | |
|---|---|---|
| Storage configuration | Full pedestal drawers including file and utility storage | |
| Level adjustment | Threaded glides at all base corners | |
| Return configuration | Fixed left-side side return |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Primary use for senior management daily work and meetings | |
|---|---|---|
| Corporate boardroom ancillary space | Secondary use for document signing and visitor discussions |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for desk load testing | |
|---|---|---|
| EN 13722:2004 | Furniture storage units performance requirements, applicable for drawer durability | |
| EN 15372:2016 | Office furniture durability and stability requirements, applicable for desk stability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable for load and cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable for drawer slide load ratings |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desk structural performance | |
|---|---|---|
| GB/T 4893.1-2021 | Surface wear resistance test for furniture coatings, applicable for desktop finish | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desk structural performance; 2. GB/T 4893.1-2021: Surface wear resistance test for furniture coatings, applicable for desktop finish; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
