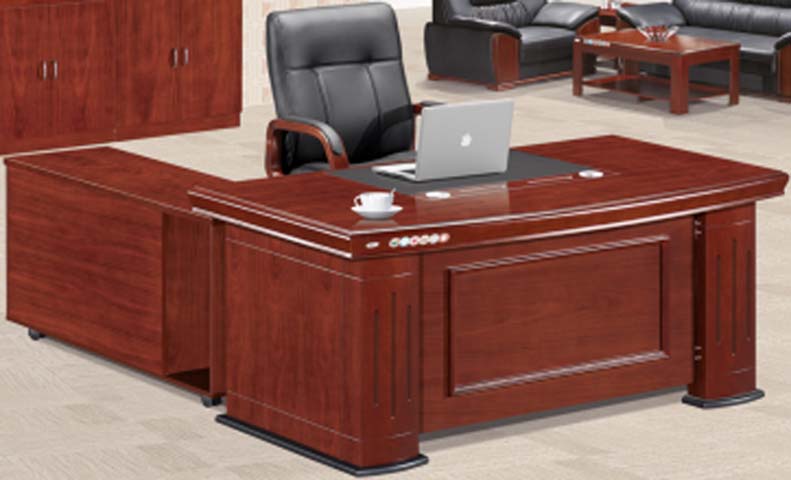

Traditional Reddish Brown Wood Veneer L-Shaped Executive Office Desk with Mobile Side Return (model EXD-L2200-MAH-CAS) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 1800 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,formal,styling,L-shaped,configuration,mobile,side,return,cabinet,front,privacy,modesty,panel,built-in,control,inset,writing,surface. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint (L-shape) | 2200 x 1800 x 760 mm | |
|---|---|---|
| Main work surface width | 2200 mm | |
| Main work surface depth | 1000 mm | |
| Side return/credenza width | 1200 mm | |
| Side return/credenza depth | 600 mm | |
| Tabletop total thickness | 50 mm | |
| Decorative edge trim thickness | 2 mm | |
| Seated knee clearance height | 620 mm | |
| Knee clearance width (central well) | 800 mm | |
| Modesty panel height | 600 mm | |
| Inset writing pad dimensions | 1200 x 600 mm | |
| Cable grommet diameter | 60 mm | |
| Side return caster diameter | 50 mm | |
| Base plinth trim height | 30 mm | |
| Drawer internal depth (side cabinet) | 500 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Side cabinet caster load rating | 80 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight and equipment load | 200 kg | |
| Product net weight | 250 kg | |
| Warranty period | 36 months | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 18mm thick MDF core with mahogany reddish brown wood veneer overlay | |
|---|---|---|
| Surface finish | High-gloss PU paint finish with scratch-resistant top coat | |
| Edge trim | Solid wood edge banding with decorative moulded profile | |
| Inset writing surface | 5mm thick black non-slip matte writing pad | |
| Frame and panel construction | 25mm thick MDF side panels and modesty panel with veneer match | |
| Mobility components | 50mm diameter nylon dual-wheel casters (2 locking, 2 non-locking) |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Side return mobility | Left side cabinet rolls on 4 casters, 2 locking to secure position after placement | |
|---|---|---|
| Cable management | Dual 60mm cable grommets route power and data cables from work surface to under-desk space | |
| Front control panel | Front edge push-button panel controls integrated power, data port access and optional lift mechanism | |
| Storage configuration | Mobile return includes lockable drawer pedestal, CPU compartment with ventilation, and open printer shelf |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Fits CEO, president or senior manager workspaces with formal traditional aesthetic | |
|---|---|---|
| Government/ institutional office | Suitable for formal administrative offices requiring durable, classic wood furniture |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk load and stability testing | |
|---|---|---|
| EN 13722:2004 | Office furniture storage cabinets strength and durability requirements, applicable to side return cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural stability and finish quality | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard/MDF requirements for furniture use, applicable to substrate formaldehyde emission limits |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural stability and finish quality; 2. GB/T 4897.3-2003: Particleboard/MDF requirements for furniture use, applicable to substrate formaldehyde emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
