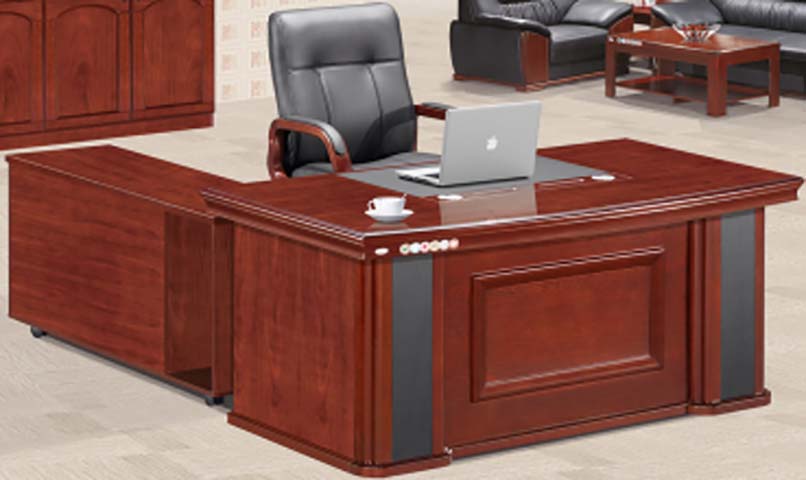

L-Shaped Mahogany Veneer Executive Desk with Mobile Left Return (model EXD-L-MAH-2200) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 1000 × 760 mm and main material of MDF. Load capacity: 205 kg. Certifications: Traditional,formal,style,L-shaped,configuration,mobile,return,cabinet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2200 x 2300 x 760 mm | |
|---|---|---|
| Main worktop dimensions | 2200 x 1000 x 76 mm | |
| Left mobile return dimensions | 1400 x 600 x 660 mm | |
| Net seated knee clearance height | 600 mm | |
| Net seated knee clearance width | 580 mm | |
| Leather writing inlay dimensions | 700 x 500 mm | |
| Desktop edge band thickness | 12 mm | |
| Decorative modesty panel height | 620 mm | |
| Plinth base height | 60 mm | |
| Caster diameter on return | 50 mm | |
| Cable grommet diameter | 60 mm | |
| Drawer interior usable depth | 450 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 205 kg | |
|---|---|---|
| Desktop finish pencil hardness | 2H | |
| Leather inlay abrasion resistance | 30000 double rubs | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Total assembled unit net weight | 280 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 18 mm thick E1 grade engineered wood | |
|---|---|---|
| Worktop surface finish | 0.6 mm mahogany wood veneer with glossy polyurethane lacquer | |
| Edge and decorative trim | Solid hardwood carved molding with 12% moisture content | |
| Central writing surface | Dark top-grain leather inlay with stitched edging | |
| Accent panel inserts | Matte dark gray laminated composite panels | |
| Hardware components | Zinc alloy drawer locks, steel ball-bearing slides, nylon casters |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mobile side return | Nylon swivel casters allow repositioning left storage unit for flexible layout | |
|---|---|---|
| Storage configuration | Lockable file drawers and cabinet compartments for office document storage | |
| Cable management | Desktop grommets and under-desk tray route power/data cables to work surface | |
| Modesty panel privacy | Full-height front panel blocks view of user legs from office front approach |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Formal traditional design suitable for senior management and leadership workspaces | |
|---|---|---|
| Corporate boardroom annex | Matching wood finish coordinates with formal leather office seating and storage cabinets |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial desk performance | |
|---|---|---|
| EN 13722:2004 | Furniture, strength and durability of office storage units, applicable to return cabinet |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products, performance and safety standard for commercial office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to wood desk construction | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable to substrate panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to wood desk construction; 2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable to substrate panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
