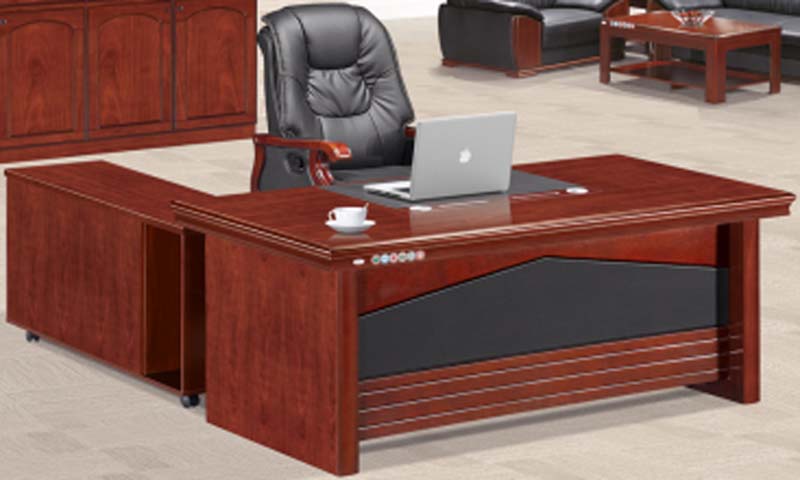

Red Wood Veneer L-Shaped Executive Desk With Mobile Caster Side Return (model EXD-L2400-MCR-RED) is listed under Traditional CEO Desk, with overall dimensions of 2400 × 1800 × 760 mm and main material of MDF. Load capacity: 363 kg. Certifications: Traditional,formal,style,L-shaped,layout,mobile,side,return,cable,management,ready. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall assembled dimensions | 2400 x 1800 x 760 mm | |
|---|---|---|
| main desktop thickness | 50 mm | |
| solid wood edge trim thickness | 20 mm | |
| knee well clearance height | 620 mm | |
| knee well clearance width | 1200 mm | |
| knee well clearance depth | 600 mm | |
| mobile return cabinet dimensions | 1200 x 480 x 650 mm | |
| caster wheel diameter | 50 mm | |
| desktop work surface height | 760 mm | |
| cable grommet diameter | 60 mm | |
| modesty panel thickness | 18 mm | |
| side panel thickness | 25 mm | |
| open shelf compartment height on return | 400 mm | |
| desk pad working area | 800 x 500 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 363 kg | |
|---|---|---|
| drawer slide dynamic load rating | 45 kg | |
| drawer slide cycle rating | 50000 cycles | |
| hinge cycle rating | 100000 cycles | |
| return cabinet caster load rating | 60 kg per wheel | |
| product net weight | 115 kg | |
| surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| desktop surface | 0.6mm red wood veneer over MDF substrate | |
|---|---|---|
| desktop edge trim | Solid hardwood molded carved edge | |
| front modesty panel | Black faux leather wrapped MDF panel | |
| structural frame panels | 18mm/25mm multi-layer engineered wood | |
| return cabinet casters | Black nylon swivel casters, 2 with locking brake | |
| desktop writing pad | Black matte faux leather desk insert |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| mobile side return cabinet | Left-mounted on lockable swivel casters, positioned for auxiliary work and storage | |
|---|---|---|
| front control button strip | Mounted on front desktop edge for integrated power/USB/function controls | |
| cable management system | Under-desk cable tray with desktop grommets for wire routing | |
| storage configuration | Mobile return includes open storage compartment with lockable drawer bays |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| private executive office | Formal traditional design suited for director/executive private office spaces | |
|---|---|---|
| corporate management suite | Large work surface and mobile storage ideal for senior management workstations |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for commercial deployment | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and mechanical performance requirements | |
| EN 13722:2004 | Furniture test methods for strength and durability of storage components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer and shelf load and cycle performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for structural and finish quality | |
|---|---|---|
| GB/T 3327-2020 | Performance test methods for office desks, applicable for load and durability validation | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for structural and finish quality; 2. GB/T 3327-2020: Performance test methods for office desks, applicable for load and durability validation; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
