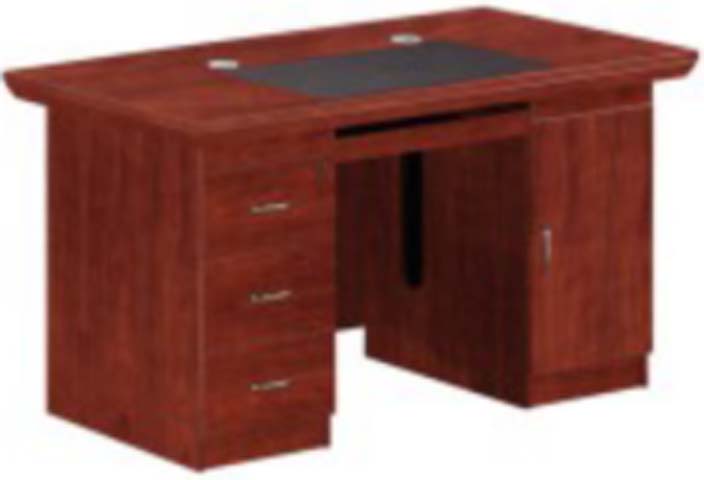

Reddish Mahogany Veneer Double-Pedestal Executive Office Desk (model ED-3D1C-2200) is listed under Traditional CEO Desk, with overall dimensions of 2200 × 1100 × 780 mm and main material of MDF. Load capacity: 113 kg. Certifications: traditional,executive,style,double,pedestal,storage,fixed,height,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2200 x 1100 x 780 mm | |
|---|---|---|
| Desktop panel thickness | 60 mm | |
| Casework panel thickness | 18 mm | |
| Wood veneer thickness | 0.6 mm | |
| Solid wood edge banding thickness | 8 mm | |
| Net central knee clearance width | 520 mm | |
| Net knee clearance height below apron | 580 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Left pedestal dimensions | 450 x 600 x 720 mm | |
| Right cabinet pedestal dimensions | 500 x 600 x 720 mm | |
| Leather writing inset size | 800 x 400 mm | |
| Drawer front height per utility drawer | 160 mm | |
| Plinth base height | 60 mm | |
| Keyboard tray travel extension | 300 mm | |
| Desktop overhang depth on front edge | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static uniform load capacity | 113 kg | |
|---|---|---|
| Product net weight | 181 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 80000 cycles | |
| Surface finish pencil hardness | 2H | |
| Recommended maximum user weight for seated use | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desk substrate panels | E0 grade high-density fiberboard, moisture content 12% | |
|---|---|---|
| Exterior surface finish | 0.6mm thick mahogany wood veneer with 2H hardness PU clear coat | |
| Desktop center inset | Black wear-resistant leatherette writing surface, stitched edge trim | |
| Edge trim | 8mm thick solid hardwood edge banding, finished to match veneer tone | |
| Hardware components | Brushed metallic alloy drawer/cabinet pulls, steel ball-bearing drawer slides | |
| Cable management grommets | ABS plastic circular dual grommets with removable caps |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left pedestal with 3 utility drawers, right pedestal with single-door enclosed storage | |
|---|---|---|
| Keyboard support | Pull-out under-desk keyboard tray mounted below front desktop apron | |
| Cable management | Two desktop grommets route power/data cables from work surface to floor | |
| Hardware operation | Smooth ball-bearing slides support full drawer extension, hinges allow 110° cabinet door opening |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office use | Suitable for manager/executive workspaces with integrated storage for documents and supplies | |
|---|---|---|
| Government and corporate office fit-outs | Matches traditional formal wood office aesthetic for institutional and commercial projects |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - safety and strength requirements for commercial office desk applications | |
|---|---|---|
| EN 527-2:2016 | Office work tables - dimensional and mechanical safety requirements for seated work surfaces | |
| EN 13722:2004 | Furniture - strength and durability of storage units integrated into office desks |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for structural performance, load and durability testing of office desks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard applicable to integrated drawer and cabinet pedestals |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wooden office desk structural performance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration materials - formaldehyde emission limit for wooden furniture, mandatory for indoor office use | |
| GB/T 4897.3-2003 | Particleboard specification for furniture-grade structural panel use in office casework |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wooden office desk structural performance; 2. GB 18584-2001: Indoor decoration materials - formaldehyde emission limit for wooden furniture, mandatory for indoor office use; 3. GB/T 4897.3-2003: Particleboard specification for furniture-grade structural panel use in office casework; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
