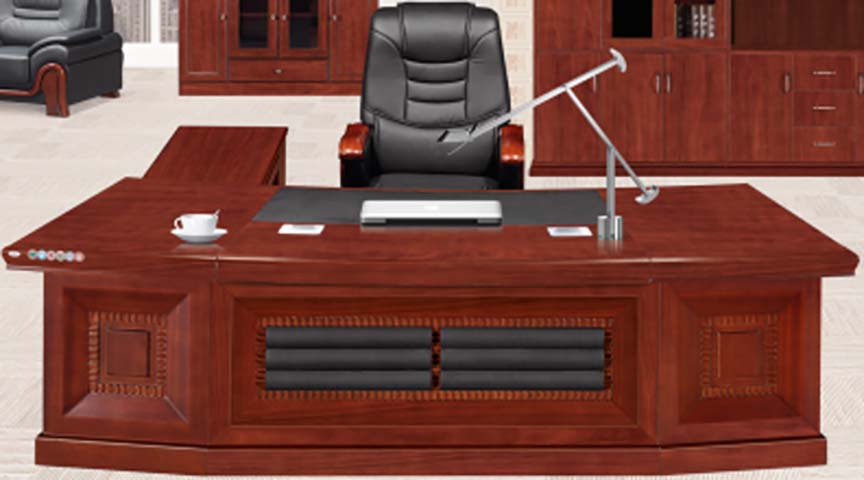

Red-Brown Wood Veneer L-Shaped Bow-Front Executive Desk with Leather Inlay and Padded Modesty Panel (model EXEC-LBOW-2600-REDWD) is listed under Traditional CEO Desk, with overall dimensions of 2600 × 2290 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,carved,styling,L-shaped,left,return,bow-front,profile,leather,writing,surface,integrated,cable,management,executive,office,use. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall L-shape footprint | 2600 x 2290 x 760 mm | |
|---|---|---|
| Main bow-front desktop width | 2600 mm | |
| Main desktop maximum depth | 1100 mm | |
| Left side return dimensions | 1200 x 600 mm | |
| Desktop thickness | 32 mm | |
| Edge band thickness | 2 mm | |
| Central kneehole clearance width | 800 mm | |
| Kneehole clearance height | 600 mm | |
| Kneehole clearance depth | 600 mm | |
| Modesty panel thickness | 25 mm | |
| Cable grommet diameter | 60 mm | |
| Side cabinet drawer internal height | 150 mm | |
| File drawer internal height | 300 mm | |
| Desktop leather inlay pad size | 1200 x 600 mm | |
| Integrated control panel width | 200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Box drawer slide load rating | 7 kg | |
| File drawer slide load rating | 16 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Product net weight | 180 kg | |
| Integrated power module rating | 12A 125V AC, 5V 2.1A USB | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | High-density MDF/particle board substrate | |
|---|---|---|
| Desktop finish | 0.6 mm red-brown wood veneer with high-gloss polyurethane lacquer | |
| Central writing surface | Black top-grain leather writing inlay with stitched edge | |
| Front modesty panel | Wood frame with black padded faux leather upholstered inserts | |
| Structural support frame | Kiln-dried hardwood internal bracing, 12% maximum moisture content | |
| Drawer hardware | Full-extension cold-rolled steel ball-bearing slides, zinc-plated finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2 box drawers, 1 locking file drawer in left return, 2 storage compartments behind modesty | |
|---|---|---|
| Cable management | 2 desktop cable grommets, under-desk steel cable tray, rear cable exit channel | |
| Integrated controls | Front left edge control panel for power, USB and desk function adjustment | |
| Drawer locking | Central keyed locking system for all storage drawers, 2 included keys |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for C-suite/manager private offices, providing formal professional presentation | |
|---|---|---|
| Boardroom ancillary space | Usable as a meeting or signing table in high-end formal boardroom areas |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - Part 1: Dimensions, applicable for work surface and clearance dimension compliance | |
|---|---|---|
| EN 527-2:2002 | Office work tables - Part 2: Mechanical safety requirements, applicable for structural stability testing | |
| EN 13722:2004 | Furniture - Office storage furniture - Strength and durability requirements, applicable for cabinet/drawer performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Standard for safety and performance, applicable for desktop load and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Standard for safety and performance, applicable for drawer slide and cabinet durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality acceptance | |
|---|---|---|
| GB/T 4897.3-2003 | Particle board for furniture use, applicable for core substrate formaldehyde emission limits | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture, mandatory for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality acceptance; 2. GB/T 4897.3-2003: Particle board for furniture use, applicable for core substrate formaldehyde emission limits; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture, mandatory for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
