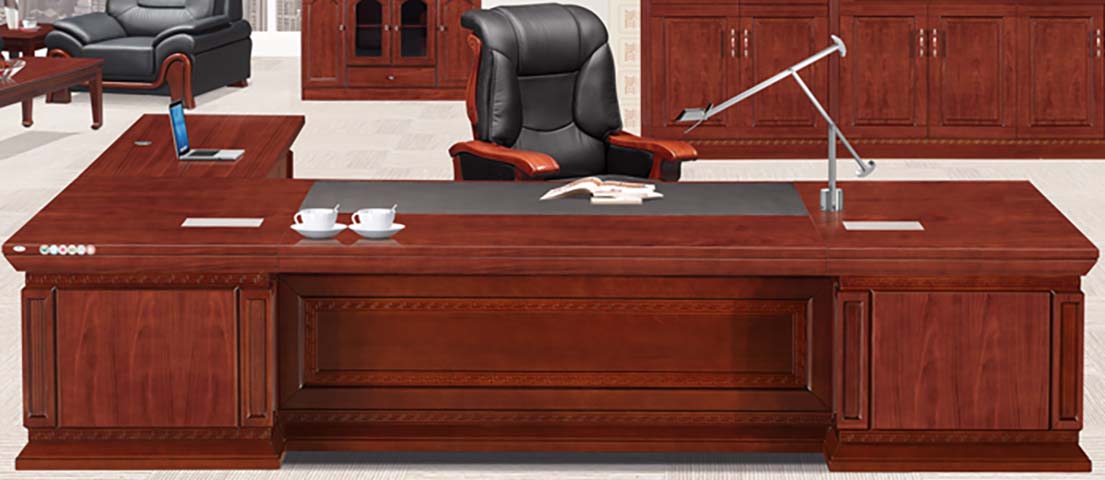

Traditional Red Wood Veneer L-Shaped Executive Desk (model EXEC-L-REDWOOD-2800) is listed under Traditional CEO Desk, with overall dimensions of 2800 × 1150 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: Traditional,style,L-shaped,configuration,fixed,height,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 1150 x 760 mm | |
|---|---|---|
| Left side return length | 1200 mm | |
| Left side return depth | 600 mm | |
| Desktop thickness | 50 mm | |
| Central knee clearance width | 1600 mm | |
| Knee clearance height | 620 mm | |
| Knee clearance depth | 550 mm | |
| Inset writing pad dimensions | 1800 x 600 mm | |
| Cable grommet diameter | 60 mm | |
| Front modesty panel height | 600 mm | |
| Solid wood edge banding thickness | 2 mm | |
| Plinth base height | 120 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Recommended user weight capacity | 150 kg | |
| Unit net weight | 260 kg | |
| Finish scratch resistance rating | 2H | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desk panel substrate | High-density fiberboard (HDF) | |
|---|---|---|
| Surface finish | 0.6mm red hardwood veneer with multi-coat PU lacquer | |
| Decorative trim and base | Solid hardwood carved mouldings | |
| Inset writing surface | Black matte PU leather pad | |
| Hardware components | Zinc alloy cable grommets, steel ball-bearing slides | |
| Structural joinery | Mortise-and-tenon reinforced corner joints |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two desktop grommets with under-desk wire channel | |
|---|---|---|
| Storage configuration | Lockable side pedestal with 3 drawers and closed cabinet | |
| Leveling adjustment | 25mm height-adjustable glides on base | |
| Modesty panel privacy | Full-width solid front panel |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Executive, president or chairman private office | |
|---|---|---|
| Recommended user type | Senior corporate leadership, C-suite executives |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Part 1: Dimensions | |
|---|---|---|
| EN 527-2:2002 | Office worktables - Part 2: Mechanical safety requirements | |
| EN 13722:2004 | Office furniture - Storage units |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for performance and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests for performance and durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances | |
| GB/T 4897.3-2003 | Particleboard for furniture use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances; 3. GB/T 4897.3-2003: Particleboard for furniture use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
