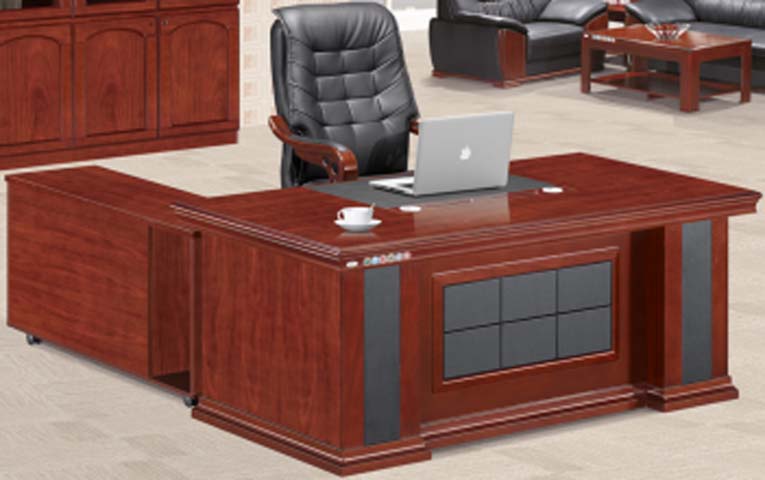

Redwood Veneer L-Shaped Executive Desk with Castered Left Return (model ED-L2400-RW-CR) is listed under Traditional CEO Desk, with overall dimensions of 2400 × 2200 × 760 mm and main material of MDF. Load capacity: 150 kg. Certifications: Classic,formal,style,L-shaped,configuration,fixed-height,work,castered,mobile,return,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 2400 x 2200 x 760 mm | |
|---|---|---|
| Main work surface width | 2400 mm | |
| Main work surface depth | 900 mm | |
| Castered left return credenza dimensions | 1900 x 450 x 600 mm | |
| Tabletop thickness | 80 mm | |
| Front modesty panel dimensions | 2100 x 350 mm | |
| Central kneehole clearance height | 660 mm | |
| Central kneehole clearance width | 1800 mm | |
| Under-desk return storage knee clearance | 600 mm | |
| Decorative raised wood edge molding height | 20 mm | |
| Dark leather vertical inlay panel width | 150 mm | |
| Six-grid modesty inlay panel size per section | 200 x 150 mm | |
| Caster diameter on return credenza | 50 mm | |
| Plinth base height | 100 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer interior usable depth in return credenza | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide static load rating | 50 kg per drawer | |
| Drawer slide cycle rating | 50000 cycles | |
| Return credenza caster rolling load rating | 80 kg total | |
| Shelf load rating inside return cabinet | 50 kg per shelf | |
| Unit net weight | 180 kg | |
| Seating capacity | 1 person | |
| Surface wear resistance rating | 20000 cycles | |
| Cable tray under-table load rating | 10 kg | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1 grade engineered MDF core | |
|---|---|---|
| Work surface finish | 0.6mm redwood wood veneer with high-gloss PU lacquer | |
| Accent panels | 1.6mm saddle leather dark gray inlays | |
| Edge and trim components | Solid hardwood decorative molding | |
| Mobile return hardware | Zinc-plated steel casters with rubber tread | |
| Drawer hardware | Cold-rolled steel full-extension ball-bearing slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Return credenza mobility | Lockable swivel casters allow repositioning of left storage return | |
|---|---|---|
| Cable management | Under-table cable tray and desktop grommets route power and data cords | |
| Storage configuration | Return credenza includes 2 file drawers and open storage compartment | |
| Leveling adjustment | Fixed support legs include integrated floor leveling glides |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for president, general manager or director workspaces as primary workstation | |
|---|---|---|
| Corporate leadership suite | Coordinates with matching wood bookcases and leather visitor seating for unified office interiors |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance validation | |
|---|---|---|
| EN 527-2:2016+A1:2019 | Office worktables dimensional and stability requirements, applicable to clearance verification | |
| EN 13722:2004 | Furniture strength and durability test for storage units, applicable to drawer performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to drawer and cabinet component testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to dimensional and structural QC | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for wooden desks and tables, applicable to load and stability verification | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture, applicable to substrate QC |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to dimensional and structural QC; 2. GB/T 3327-2017: Performance test methods for wooden desks and tables, applicable to load and stability verification; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture, applicable to substrate QC; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
