PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	6000 × 1800 × 760 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	300 kg
Total product weight	480 kg
Durability rating for surface finish	50000 abrasion cycles
Modular connection static load rating	1500 kg
Seating capacity	10 people
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop substrate	25mm thick medium density fiberboard
Tabletop surface	0.6mm natural wood veneer with high-gloss UV lacquer
Edge banding	50mm thick solid hardwood matching veneer tone
Base cabinet carcass	18mm thick particleboard with matching veneer finish
Vent grilles	Powder-coated cold-rolled steel
Connection hardware	Zinc-plated steel cam locks and joint connectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Central under-floor raceway with access ports at each seating position
Modular assembly	Three bolt-connected base sections for transport and on-site installation
Equipment ventilation	Slotted steel vents on base cabinet doors for AV and power equipment cooling
Desktop device integration	Pre-cut recessed slots for electronic nameplates and control panels

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive boardroom	Fits formal corporate meeting spaces for 10-person leadership meetings
Government conference facility	Suitable for official meeting rooms with integrated smart AV and nameplate systems

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-3:2003	Office work tables, test methods for mechanical stability
EN 13722:2004	Office furniture, storage units, performance requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products, performance and safety standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB/T 4897.3-2003	Particleboard for furniture use, load-bearing grade
GB 18580-2017	Formaldehyde emission limit for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB/T 4897.3-2003: Particleboard for furniture use, load-bearing grade;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HC-6039

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HC-6039

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HC-6039Open Export Tool

Quick Actions

Post an RFQ

Product Description

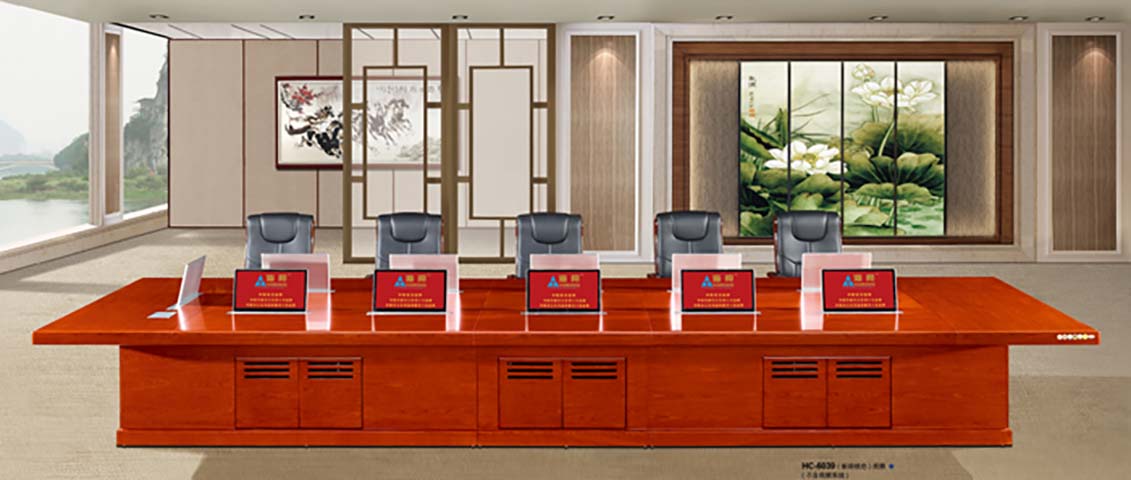

Its wide, linear layout is sized to accommodate 10 attendees comfortably, with evenly spaced access points and dedicated seating positions aligned to support clear sightlines across the full table length. A sturdy pedestal base structure anchors the substantial tabletop, creating an uncluttered visual profile that complements professional interior aesthetics.
Constructed for long-term heavy use, the table features a 25mm medium density fiberboard core topped with 0.6mm natural red-brown wood veneer, sealed with a high-gloss UV lacquer rated to withstand 50000 abrasion cycles. The tabletop measures 45mm in total finished thickness, bordered by 50mm thick solid hardwood edge banding matched to the veneer tone for a seamless, premium look. The 80mm thick support sections use 2mm metal wall construction, paired with zinc-plated steel cam locks and joint connectors to hold components securely, with a modular connection static load rating of 1500kg. Base cabinetry is built from 18mm thick particleboard finished to match the veneer, with powder-coated cold-rolled steel slotted vents for equipment airflow, and heavy-duty metal hardware across all assemblies.
Functional design elements prioritize meeting room usability: a central under-floor cable raceway connects to 80mm diameter access ports at every seat, paired with 120mm deep cable trays to keep power and AV cords organized and out of sight. Pre-cut recessed slots integrated into the tabletop accommodate electronic nameplates and meeting control panels, while slotted vents on base cabinet doors support cooling for stored AV and power equipment. The table supports 300kg of static tabletop load, with 680mm of vertical knee clearance and 900mm of width per main seat to ensure comfortable positioning for all attendees. Its three bolt-connected modular base sections simplify transport and on-site assembly, which takes 40 minutes per set upon delivery.
This table is ideally suited for executive boardrooms hosting 10-person leadership meetings, as well as government conference facilities designed for integrated smart AV and nameplate systems. For procurement planning, note the product ships as one set across two cartons, with a total packaged volume of 0.55 m³ and packaged gross weight of 90kg per set; installation teams should account for the 480kg total finished product weight when positioning the table, and confirm structural floor load capacity and access route dimensions prior to delivery to support smooth installation.

10-Seat Lacquered Wood Veneer Smart Conference Table with Integrated Nameplate Slots
