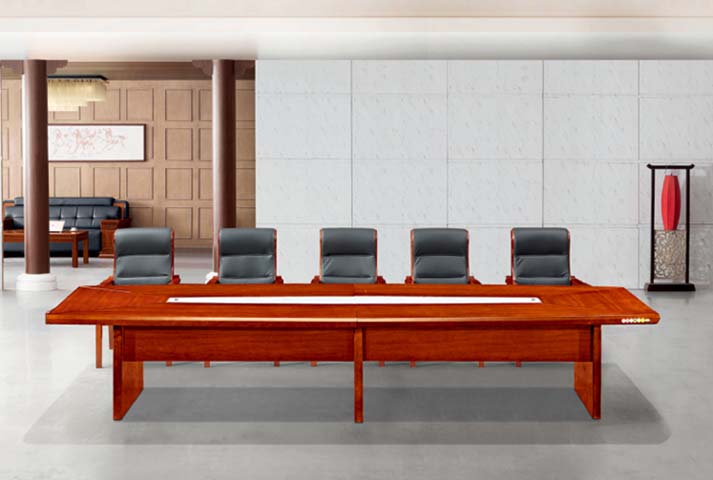

Product supplierTraditional Red-Brown Wood Veneer Rectangular Boardroom Conference Table with Central Cable Management, 18mm thick E1-grade high-density fiberboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 1600 × 760 mm | |
|---|---|---|
| Tabletop thickness | 60 mm | |
| Under-table knee clearance height | 670 mm | |
| Central cable trough length | 3800 mm | |
| Central cable trough width | 120 mm | |
| End support panel width | 300 mm | |
| Center vertical support leg width | 120 mm | |
| Apron height below tabletop | 90 mm | |
| Edge banding thickness | 8 mm | |
| Leveling foot adjustment range | 15 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 272 kg | |
|---|---|---|
| Net product weight | 400 kg | |
| Paint surface hardness | 2H | |
| Substrate formaldehyde emission | 0.05 mg/m³ | |
| Wood moisture content | 12% | |
| Commercial limited warranty | 5 years | |
| Finish abrasion resistance cycles | 2000 cycles | |
| Seating capacity per long side | 6 people | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 18mm thick E1-grade high-density fiberboard | |
|---|---|---|
| Tabletop surface | 0.6mm thick red-brown natural wood veneer | |
| Support structure | Solid wood composite panel legs and apron | |
| Surface coating | 8-coat PU paint (5 primer, 3 top coats) | |
| Cable trough cover | Matte white PVC/ABS flush strip | |
| Leveling feet | Nylon base with steel threaded insert |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Recessed full-length central trough routes power/network cables between seated positions | |
|---|---|---|
| Sectional assembly design | Two-piece tabletop joined at center with steel connector brackets | |
| Surface protection | Stain, heat and acid-alkali resistant finish allows placement of drinks, laptops and presentation materials | |
| Stability design | Dual end panel supports plus single mid-span vertical leg eliminate tabletop sag |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Large corporate boardrooms and formal executive meeting rooms for 12 attendees | |
|---|---|---|
| Recommended use cases | High-level management meetings, client negotiations and formal board presentations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office work tables - test methods for stability and structural strength | |
|---|---|---|
| EN 13722:2004 | Furniture - strength and durability for non-domestic seating and tables |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - standard for structural performance, safety and durability of office tables |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of formaldehyde emission in wood furniture | |
| GB/T 4893.4-2013 | Test method for surface wear resistance of furniture finishes, applicable to finish acceptance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural inspection; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of formaldehyde emission in wood furniture; 3. GB/T 4893.4-2013: Test method for surface wear resistance of furniture finishes, applicable to finish acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
