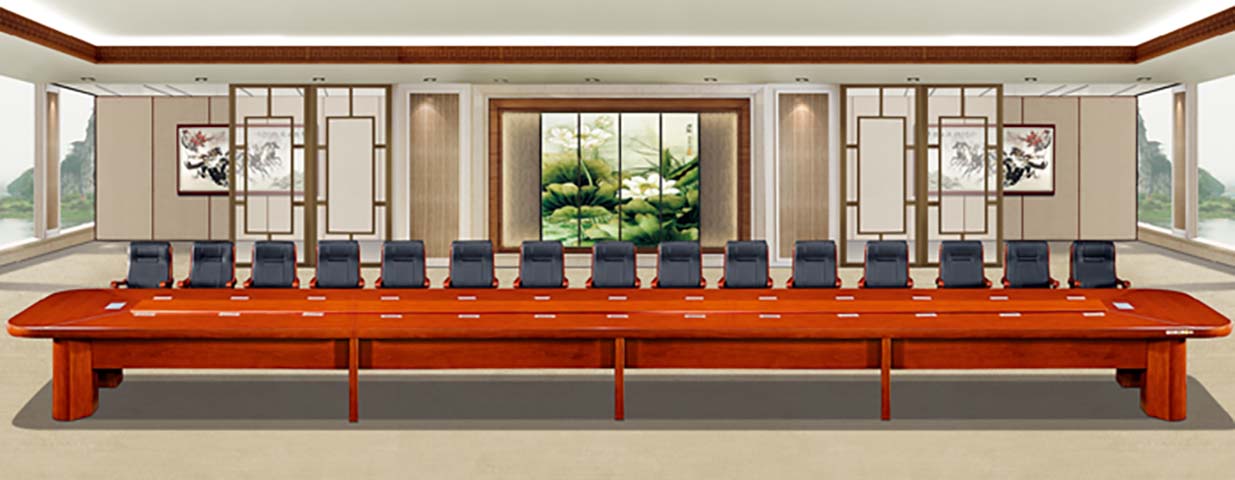

Product supplierTraditional 14-Person Boat-Shaped Veneer Boardroom Conference Table with Integrated Cable Ports, E1 grade MDF/plywood core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 7200 × 1800 × 750 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Leg cross-section | 180 x 180 mm | |
| Apron height | 120 mm | |
| Seated knee clearance height | 630 mm | |
| Per-person seating space per side | 510 mm | |
| Rounded end radius | 900 mm | |
| Cable port spacing | 480 mm | |
| Leg setback from table end | 450 mm | |
| Clearance between intermediate legs | 2100 mm | |
| Cable port recess size | 120 x 240 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Evenly distributed static tabletop load | 136 kg | |
|---|---|---|
| Seating capacity | 14 people | |
| Finish abrasion resistance | 2000 cycles | |
| Connector assembly static load rating | 800 kg per joint | |
| Net product weight | 400 kg | |
| Warranty period for manufacturing defects | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | E1 grade MDF/plywood core | |
|---|---|---|
| Tabletop surface | 0.6 mm polished red wood veneer | |
| Edge trim | Solid hardwood edge molding | |
| Support legs and apron | Solid hardwood construction | |
| Surface finish | High-gloss UV-cured polyurethane lacquer | |
| Hardware fasteners | Zinc-plated steel cam locks and bolts |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Recessed center ports route power/data cables | |
|---|---|---|
| Knock-down assembly | Flat-packed components for on-site assembly | |
| Modular port compatibility | Cutouts support AC, USB, RJ45, and AV modules | |
| Fixed height design | 750 mm standard seated meeting height |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| 20ft GP container loading quantity | 6 sets | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Formal corporate boardrooms | 14-person capacity for executive meetings and board decision sessions | |
|---|---|---|
| Large government meeting rooms | Traditional wood finish matches formal official interior design schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office work tables safety and strength test methods, reference for structural performance | |
|---|---|---|
| EN 13722:2004 | Furniture test methods for strength and durability of tables | |
| EN 14322:2017 | Wood-based panels for furniture, formaldehyde emission class E1 requirement |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for office tables, static and dynamic load testing reference |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for quality inspection | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, required for indoor office use | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for substrate material verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for quality inspection; 2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, required for indoor office use; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for substrate material verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
