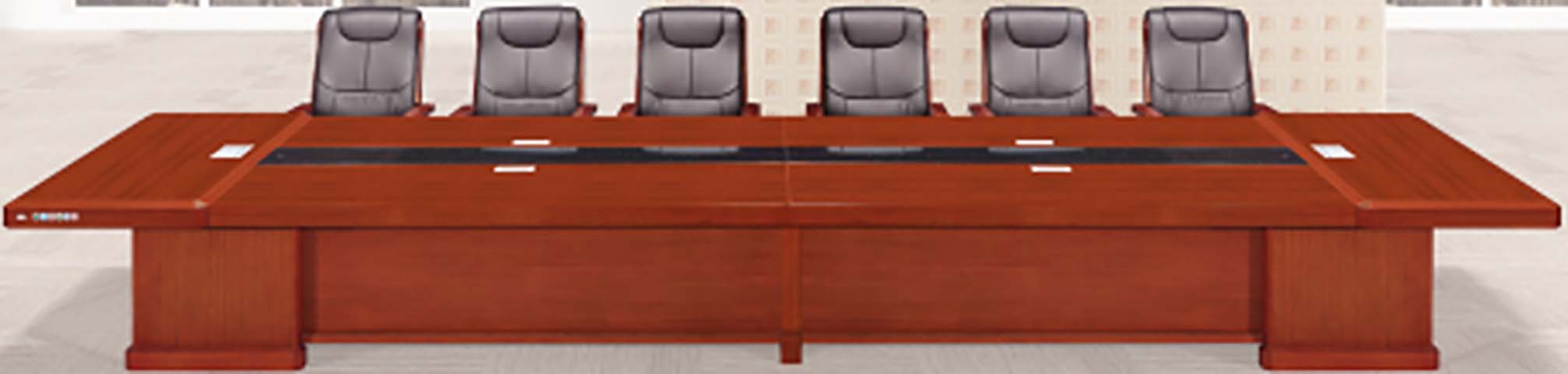

14-Seat Rectangular Red Mahogany Veneer Conference Table with Central Cable Raceway (model CNF-RD4500-WD-CBL) is listed under Traditional Conference Table, with overall dimensions of 1500 × 4500 × 760 mm and main material of MDF. Load capacity: 230 kg. Certifications: commercial,furniture,rectangular,multi-seat,integrated,cable,management,box,pedestal,base,solid,modesty,panel. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 4500 x 1500 x 760 mm | |
|---|---|---|
| Tabletop thickness | 50 mm | |
| Under-table leg clearance height | 660 mm | |
| Central cable raceway width | 200 mm | |
| Box pedestal base width per short end | 600 mm | |
| Central support foot cross-section | 100 x 100 mm | |
| Full modesty panel height | 600 mm | |
| Tabletop overhang from base edge | 80 mm | |
| Cable access cutout count | 6 units | |
| End cable panel size per short end | 150 x 100 mm | |
| Beveled tabletop edge width | 30 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed tabletop static load capacity | 230 kg | |
|---|---|---|
| Total product net weight | 280 kg | |
| Surface scratch resistance rating | Level 1 | |
| Paint adhesion grade | Level 1 | |
| Formaldehyde emission limit | 0.05 mg/m³ | |
| Structural warranty period | 10 years | |
| Anti-slip foot pad load per pad | 100 kg | |
| Seating capacity per long side | 7 seats | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | 25mm thick E1 grade high-density MDF core | |
|---|---|---|
| Tabletop surface finish | 0.6mm natural mahogany wood veneer with matte PU clear coat | |
| Table edge treatment | Solid wood edge banding with matching PU paint bevel finish | |
| Base construction | 18mm thick MDF panel box pedestals with matching veneer finish | |
| Central cable raceway | Black matte PVC embedded channel with removable access covers | |
| Foot pads | 10mm thick non-slip rubber pads at all base contact points |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Full-length central recessed raceway with 6 access cutouts and end cable ports for AV/power routing | |
|---|---|---|
| Modesty panel design | Full-length solid veneer panel along seated edges to block leg visibility | |
| Structural support system | Two end box pedestals plus central support foot to prevent tabletop sag across 4.5m span | |
| Assembly configuration | Knock-down panel assembly with cam lock and bolt connectors for on-site installation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest shipping carton dimension | 2300 x 800 x 180 mm | |
|---|---|---|
| Total shipping gross weight | 320 kg | |
| Total shipping volume | 1.2 CBM | |
| On-site assembly time | 180 minutes | |
| 20ft container loading quantity | 6 units | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Applicable space | Corporate boardrooms, government meeting rooms, executive conference facilities | |
|---|---|---|
| Recommended configuration | Paired with high-back executive leather conference chairs to match formal office aesthetic |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements, applicable for commercial office installation | |
|---|---|---|
| EN 13722:2004 | Furniture test methods for strength and durability of tables, recommended for load verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance, recommended for commercial procurement |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural acceptance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wooden furniture, required for indoor office use | |
| GB/T 4893.8-2013 | Furniture surface test method for wear resistance, applicable to painted finish acceptance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance; 2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wooden furniture, required for indoor office use; 3. GB/T 4893.8-2013: Furniture surface test method for wear resistance, applicable to painted finish acceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
