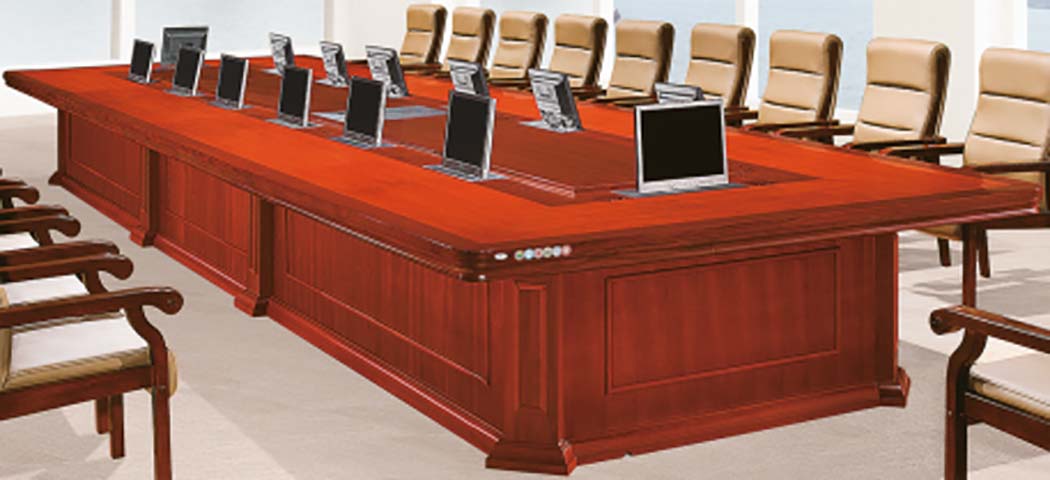

20-Seat Red Wood Veneer Motorized Lift-Monitor Paperless Conference Table (model PCONF-LIFT20-RW) is listed under Traditional Conference Table, with overall dimensions of 10000 × 2400 × 760 mm and main material of MDF. Load capacity: 1200 kg. Certifications: Formal,executive,style,paperless,meeting,integration,enclosed,panel,plinth,base,motorized,monitor,lift,multi-seat,boardroom,configuration. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 10000 x 2400 x 760 mm | |
|---|---|---|
| tabletop thickness | 51 mm | |
| seated knee clearance height | 660 mm | |
| knee clearance depth under overhang | 450 mm | |
| per-seat linear space along long sides | 800 mm | |
| monitor cutout center spacing | 800 mm | |
| supported individual monitor size | 432 mm (17 in diagonal) | |
| monitor lift full vertical stroke | 400 mm | |
| plinth base wall panel thickness | 25 mm | |
| table edge overhang from plinth | 70 mm | |
| control panel recess width at table edge | 120 mm | |
| rounded end radius of boat-shaped top | 1200 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| distributed static tabletop load capacity | 1200 kg | |
|---|---|---|
| monitor lift full travel operation time | 20 seconds | |
| lift operation noise level | 30 dB | |
| seating capacity | 20 people | |
| finish abrasion resistance | 2000 cycles | |
| product warranty period | 10 years | |
| monitor tilt adjustment range | 20 degrees | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| tabletop substrate | CARB P2 grade high-density MDF core | |
|---|---|---|
| tabletop surface | 0.6mm red hardwood veneer with UV-cured high-gloss lacquer | |
| edge trim | Solid hardwood molded edge profile with matching stained finish | |
| plinth base construction | 18mm MDF panels with recessed wood veneer detailing, solid wood foot trim | |
| monitor lift housings | Powder-coated steel frame with brushed stainless steel top cover plates | |
| internal cable management troughs | 1.2mm galvanized steel separate high/low voltage channels |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| motorized monitor lift operation | Individual electric lift raises/lowers screens via edge control buttons, central control compatible | |
|---|---|---|
| cable management system | Dedicated separated high/low voltage troughs with service access panels on plinth | |
| integrated control interface | Recessed edge panel with power, lift, AV source selection buttons | |
| modular assembly design | Sectional knock-down construction for site assembly and transport |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive boardroom use | Formal high-capacity paperless meeting setup for large corporate governance meetings | |
|---|---|---|
| Government conference facility use | Formal wood finish and multi-seat capacity suitable for official meeting rooms |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Safety and strength requirements for office tables, applicable to structural performance | |
|---|---|---|
| EN 1335-2:2018 | Stability and durability reference for fixed office seating furniture surroundings | |
| EN 62368-1:2020 | Safety standard for AV/IT equipment, applicable to monitor lift mechanisms |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X7.1-2018 | Formaldehyde emission standard for composite wood panel components |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to table structure and finish | |
|---|---|---|
| GB/T 3327-2017 | Stability, strength and durability requirements for office tables, applicable to load testing | |
| GB 4943.1-2022 | Safety requirements for IT equipment, applicable to integrated monitor lift electronics | |
| GB/T 17626-2018 | EMC requirements for electronic equipment, applicable to lift control systems |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to table structure and finish; 2. GB/T 3327-2017: Stability, strength and durability requirements for office tables, applicable to load testing; 3. GB 4943.1-2022: Safety requirements for IT equipment, applicable to integrated monitor lift electronics; 4. GB/T 17626-2018: EMC requirements for electronic equipment, applicable to lift control systems; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
