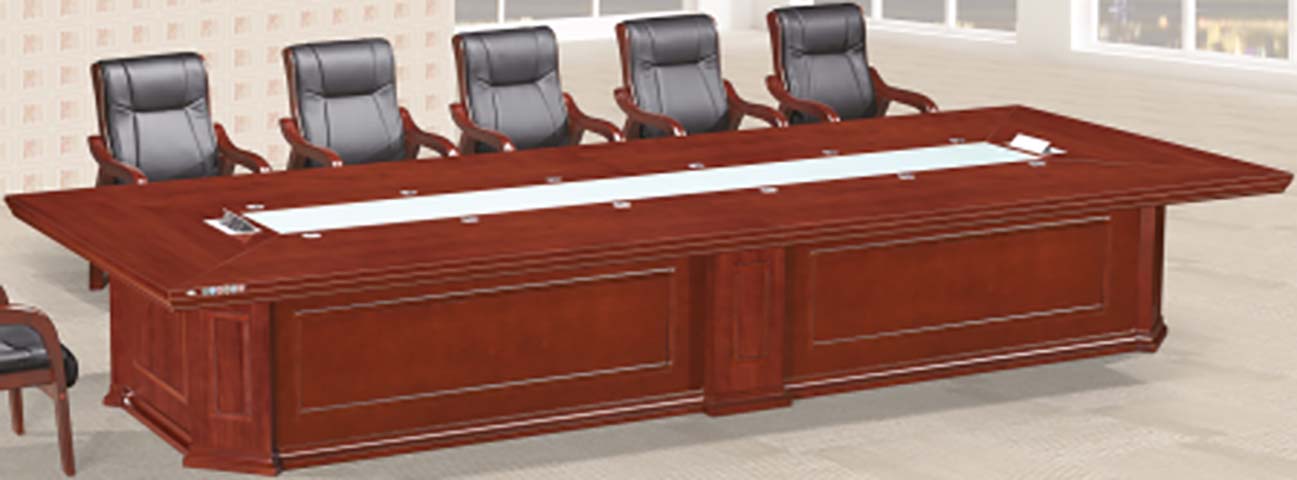

Traditional Red-Brown Wood Veneer Boat-Shaped Boardroom Conference Table with Central Cable Management (model CNF-BOAT-4800-RD-VNR) is listed under Traditional Conference Table, with overall dimensions of 4800 × 1600 × 760 mm and main material of MDF. Load capacity: 227 kg. Certifications: Traditional,formal,style,panel,enclosed,base,integrated,cable,management,multi-seat,boardroom,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 4800 x 1600 x 760 mm | |
|---|---|---|
| Tabletop thickness | 38 mm | |
| Solid wood edge trim thickness | 8 mm | |
| Central cable channel width | 200 mm | |
| Knee clearance height under table | 670 mm | |
| Base plinth height | 80 mm | |
| End bevel taper depth at narrow ends | 1200 mm | |
| Perimeter molding step count | 3 | |
| Cable access grommet spacing | 600 mm | |
| Corner overhang beyond base | 150 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Maximum static distributed tabletop load | 227 kg | |
|---|---|---|
| Seating capacity | 12 people | |
| Paint surface hardness | 2H | |
| Wood substrate moisture content | 12% | |
| Recommended tabletop concentrated load at center | 90 kg | |
| Formaldehyde emission limit | 0.05 mg/m³ | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | High-density MDF core, 0.70 g/cm³ density | |
|---|---|---|
| Surface finish | 0.6 mm thick natural wood veneer with multi-coat gloss lacquer | |
| Edge treatment | Solid hardwood trim with molded beveled profile | |
| Base structure | Enclosed wood panel base with decorative raised panel molding | |
| Central cable channel | White recessed metal trough with removable access covers | |
| Leveling feet | Nylon adjustable anti-slip glides at base corners |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Full-length recessed central trough with concealed routing to floor pass-through | |
|---|---|---|
| Power/data integration | Dual end-mounted multimedia cubbies supporting AC, USB, HDMI, and Ethernet connections | |
| Base access panels | Removable side panels on base for cable routing and service access | |
| Surface protection | Stain, scratch, and heat-resistant lacquer finish suitable for daily boardroom use |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Corporate boardrooms | Suitable for executive meetings and presentations for up to 12 participants | |
|---|---|---|
| Formal government meeting rooms | Matches traditional red-brown wood finish required for official office settings |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office tables - test methods for stability and structural strength | |
|---|---|---|
| EN 13722:2004 | Furniture - strength and durability requirements for office storage and tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, covering static load, durability and stability for office tables |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish performance | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture | |
| GB/T 4893.4-2013 | Test method for surface adhesion of furniture paint film |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish performance; 2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture; 3. GB/T 4893.4-2013: Test method for surface adhesion of furniture paint film; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
