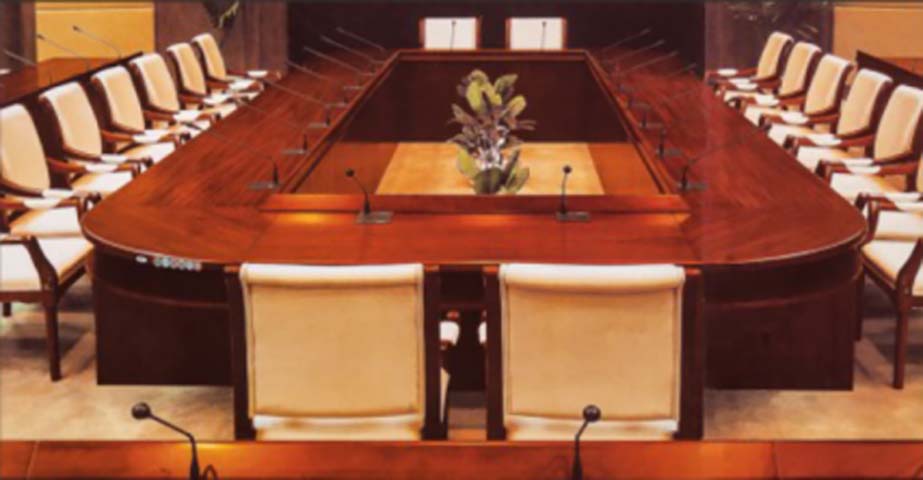

Large Formal U-Shaped Veneer Boardroom Conference Table with Integrated Microphones (model CONF-U-WAL-MIC-8000) is listed under Traditional Conference Table, with overall dimensions of 8000 × 4000 × 760 mm and main material of MDF. Load capacity: 300 kg. Certifications: Formal,boardroom,style,U-shaped,horseshoe,structure,wood,veneer,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall outer dimensions | 8000 x 4000 x 760 mm | |
|---|---|---|
| Perimeter work surface width | 600 mm | |
| Tabletop thickness | 50 mm | |
| Recessed central panel dimensions | 6800 x 2800 mm | |
| Seat spacing per position | 800 mm | |
| Knee clearance height under work surface | 680 mm | |
| Curved end radius | 1200 mm | |
| Base panel height | 710 mm | |
| Microphone mounting flange spacing | 800 mm | |
| Center aisle width between recess edges | 1200 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total table weight | 600 kg | |
|---|---|---|
| Distributed static tabletop load | 300 kg | |
| Seating capacity | 20 persons | |
| Substrate density | 0.8 g/cm³ | |
| Surface bonding strength | 1.6 MPa | |
| Thickness swelling rate | 3.9% | |
| Formaldehyde emission level | 5.0 mg/100g | |
| Commercial warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | E1 grade MDF core | |
|---|---|---|
| Tabletop facing | 0.6mm walnut wood veneer | |
| Support base | Matched veneer finished engineered wood panels | |
| Cable management | Concealed internal steel raceways | |
| Microphone mounts | Brushed metal flange bases | |
| Hardware connectors | Zinc-plated steel knockdown fittings |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated cable management | Concealed under-surface raceways route AV and power cables to each seat | |
|---|---|---|
| Perimeter microphone integration | Fixed flush-mounted gooseneck microphone positions at every seated location | |
| Recessed central panel | Sunken central area holds meeting materials and decorative arrangements | |
| Segmented modular assembly | Curved and straight panel sections join to form closed U shape |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Formal corporate boardrooms | Provides centralized multi-seat layout for executive meetings and decision-making | |
|---|---|---|
| Government conference halls | Supports structured proceedings with integrated audio positions for formal sessions |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Test methods for office tables, applicable for strength and stability verification | |
|---|---|---|
| EN 13722:2004 | Furniture strength and durability requirements for conference and office seating/table combinations |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard for office desks and tables, applicable for commercial load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, mandatory for indoor furniture safety | |
| GB/T 4897.3-2003 | Performance requirements for MDF used in furniture-grade load-bearing applications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, mandatory for indoor furniture safety; 3. GB/T 4897.3-2003: Performance requirements for MDF used in furniture-grade load-bearing applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
