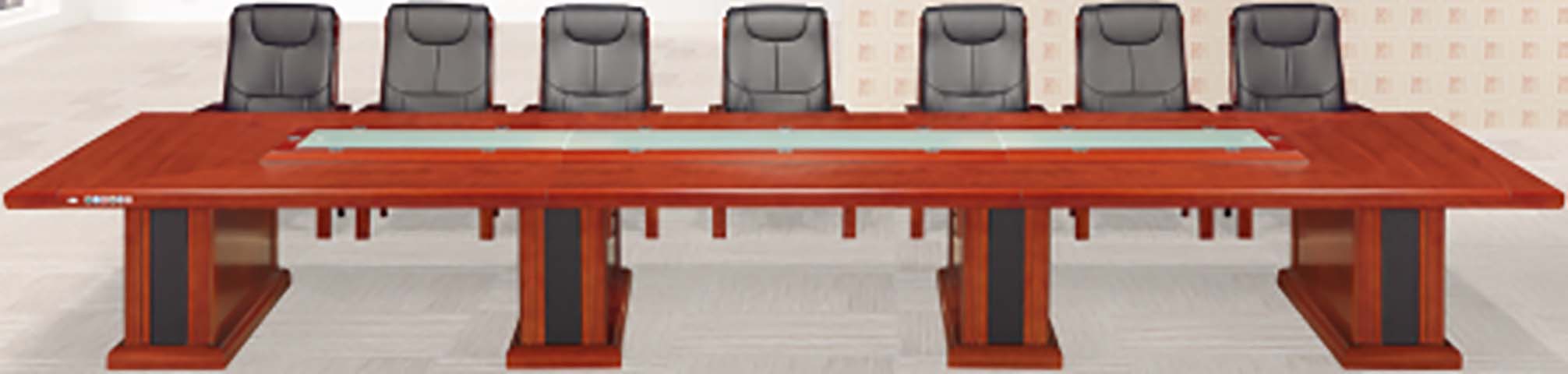

Large Rectangular Red Wood Veneer Boardroom Conference Table with Central Cable Management (model CONF-REC-5800-4PED) is listed under Traditional Conference Table, with overall dimensions of 1500 × 5800 × 760 mm and main material of MDF. Load capacity: 450 kg. Certifications: Traditional,formal,style,four,pedestal,base,structure,integrated,cable,management,multi-seat,boardroom,design. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 5800 x 1500 x 760 mm | |
|---|---|---|
| Tabletop thickness | 38 mm | |
| Central cable panel width | 300 mm | |
| Central cable panel length | 4800 mm | |
| Pedestal base width | 450 mm | |
| Pedestal base depth | 800 mm | |
| Under-table knee clearance height | 680 mm | |
| Edge profile radius | 30 mm | |
| Pedestal spacing between units | 1600 mm | |
| Table end overhang from last pedestal | 500 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop uniform static load capacity | 450 kg | |
|---|---|---|
| Product net weight | 320 kg | |
| Surface scratch resistance | Grade 1 | |
| Leveling foot adjustment range | 15 mm | |
| Warranty period | 10 years | |
| Cable trough maximum cable capacity | 24 cables | |
| Seating capacity per long side | 8 seats | |
| Total seating capacity | 18 seats | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop substrate | High-density MDF core with 0.6mm natural wood veneer | |
|---|---|---|
| Tabletop surface coating | Scratch-resistant PU clear finish | |
| Central cable panel | 8mm frosted tempered glass inset over recessed metal cable trough | |
| Pedestal bases | Veneer-covered engineered wood panels with matte black decorative vertical accent strips | |
| Internal support frame | 2mm thick rectangular steel cross-bracing under tabletop | |
| Feet components | Nylon leveling feet with steel threaded inserts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central cable management | Recessed full-length trough under glass panel routes cables from table center to bases | |
|---|---|---|
| Cable access points | Flip-top covers along central panel allow cable routing to tabletop devices | |
| Base cable pass-through | Each pedestal has internal cable channel to route wiring to floor outlets | |
| Floor leveling | Adjustable feet on each pedestal base correct uneven floor surfaces for stable installation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive boardrooms | Fits formal corporate boardrooms for 18-person leadership and decision meetings | |
|---|---|---|
| Government meeting rooms | Traditional red veneer finish matches formal government conference room aesthetics |
EU Market Access Requirements* EN Standards
| EN 527-3:2003 | Office tables test methods for stability and structural strength | |
|---|---|---|
| EN 15372:2016 | Furniture - Strength, durability and safety for non-domestic tables |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk and table products standard for safety, durability and structural performance |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18584-2001 | Formaldehyde emission limit for wooden furniture, ≤0.124mg/m³ E1 grade requirement | |
| GB/T 4893.8-2013 | Surface wear resistance test for furniture coatings, recommended acceptance threshold |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB 18584-2001: Formaldehyde emission limit for wooden furniture, ≤0.124mg/m³ E1 grade requirement; 3. GB/T 4893.8-2013: Surface wear resistance test for furniture coatings, recommended acceptance threshold; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
